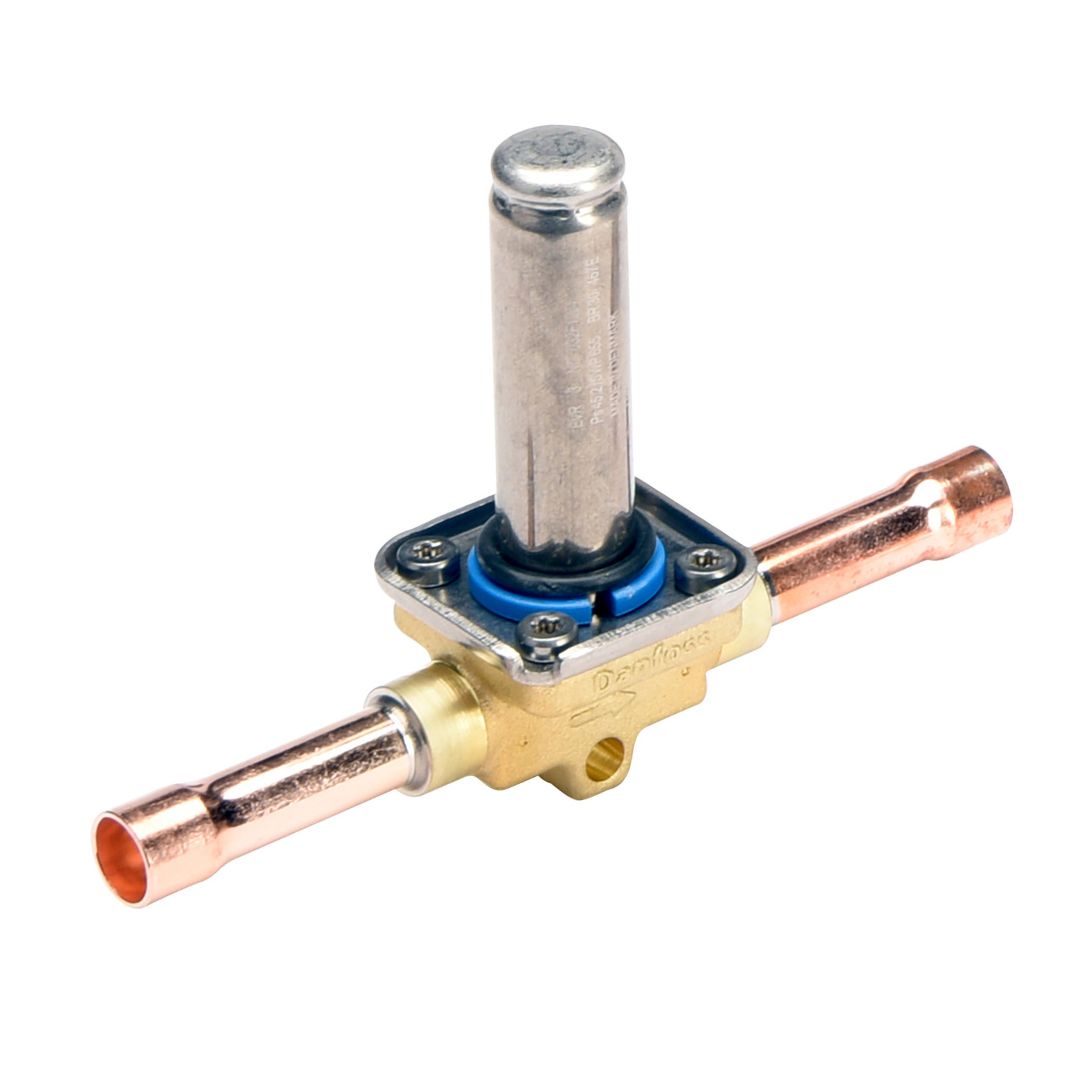

Solenoid Valve Danfoss, EVR 6, Solder, ODF, 3/8 Inch, Function NC Code 032L1212
Solenoid Valve Danfoss, EVR 6, Solder, ODF, 3/8 Inch, Function NC Code 032L1212
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
3,133.05 ฿
ราคาปกติ
ราคาโปรโมชัน
3,133.05 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Solenoid Valve Danfoss, EVR 6, Solder, ODF, 3/8 Inch, Function NC Code 032L1212
Data Sheets :
Product details
| Gross weight | 0.234 Kg |
| Net weight | 0.185 Kg |
| Volume | 0.924 Liter |
| EAN | 5702428952903 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - Coil dependend |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | UL EAC LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 1.15 gal/min |
| Direction | Straightway |
| Fluid Group | 1 2 |
| Function | NC |
| Identical product | 032L5219 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 1 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 28 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 406 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependend |
| MWP [bar] PED compliant | 49 bar |
| Orifice size [mm] | 6 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf,R125,R134a,R152a,R22 R290,R32,R404A,R407A,R407C R407F,R410A,R417A,R448A,R449A R450A,R452A,R600,R600a,R513A R452B,R454B,R1234ze(E),R407H R413A,R422A,R422B,R422D,R438A R444B,R447A,R449B,R454C,R455A R463A,R513B,R515A,R515B,R516A R442A,R447B,R512A,R454A,R507A |
| SCIP dossier no. | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| SCIP dossier product name | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 6 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125,R134a,R152a,R22,R404A R407A,R407C,R407F,R407H,R410A R413A,R417A,R422A,R422B,R422D R438A,R442A,R447A,R447B,R448A R449A,R449B,R450A,R452A,R455A R463A,R507A,R512A,R513A,R513B R515A,R515B,R516A |
| Valve operation | Servo-diaphragm |
