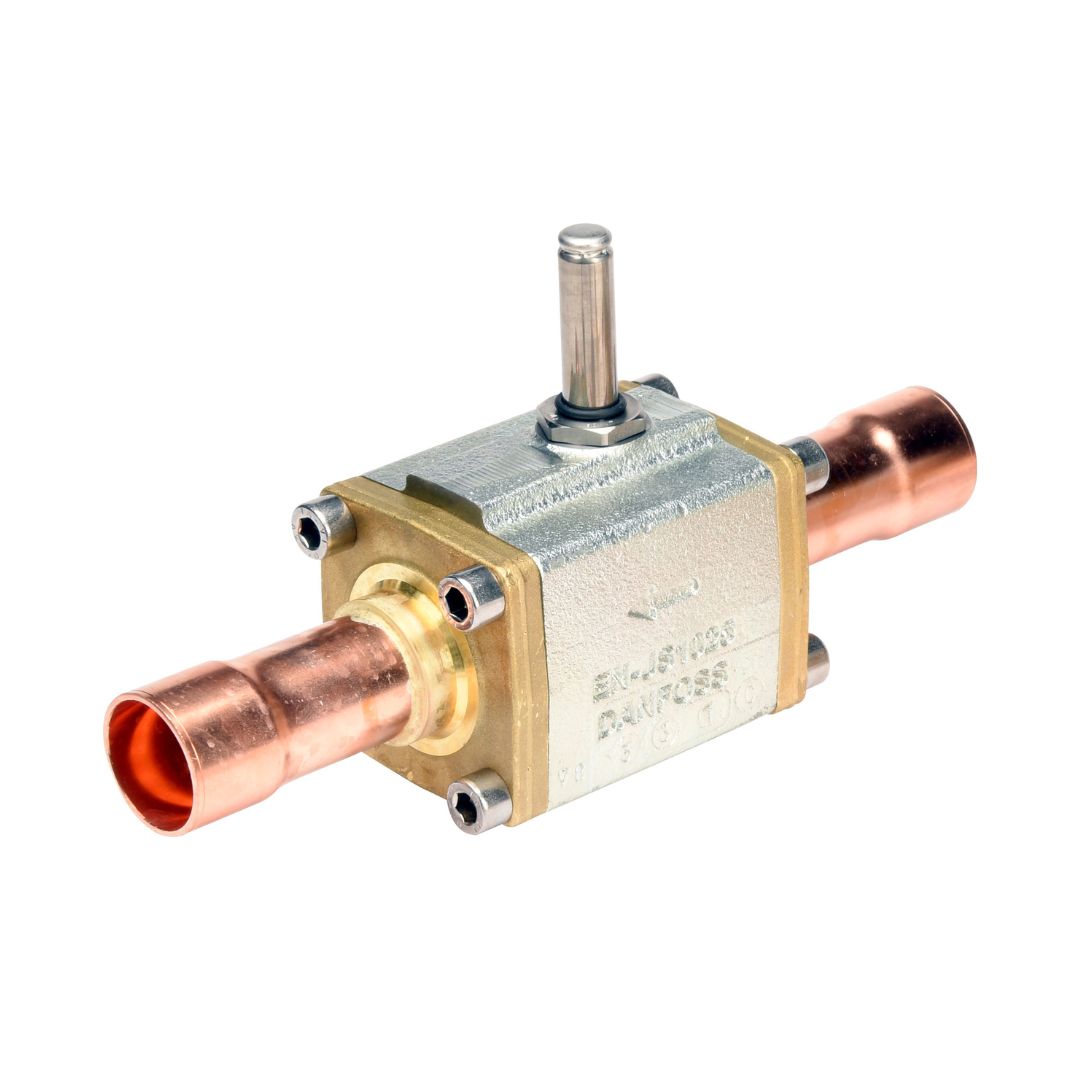

Solenoid Valve Danfoss, EVR 40, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1110
Solenoid Valve Danfoss, EVR 40, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1110
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
33,506.29 ฿
ราคาปกติ
ราคาโปรโมชัน
33,506.29 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Solenoid Valve Danfoss, EVR 40, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1110
Data Sheets :
Product details
| Gross weight | 4.78 Kg |
| Net weight | 4.426 Kg |
| Volume | 7.56 Liter |
| EAN | 5702428943130 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Approval | UL EAC LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 28 gal/min |
| Direction | Straightway |
| Function | NC |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 5/8 in |
| Kv value [m³/h] | 24.2 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 17 bar |
| MaxOPD[bar] coil BJ/BX | 31 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 246 psi |
| MaxOPD[psi] coil BJ/BX | 450 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| MOPD[bar/psi] | Coil Dependend |
| Orifice size [mm] | 25.4 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 5/8 in |
| Packing format | Single pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125,R134a,R152a,R22 R404A,R407A,R407C,R407F R410A,R417A,R448A,R449A R450A,R452A,R513A,R1234ze(E),R507A |
| SCIP dossier no. | 6a76eb5e-6ca8-43d3-be03-8320fd28438e |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 40 |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125,R134a,R152a,R22 R404A,R407A,R407C,R407F R410A,R417A,R448A,R449A R450A,R452A,R507A,R513A |
| Valve operation | Servo-piston |
