- Solenoid Valve Danfoss, EVR 32, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1104

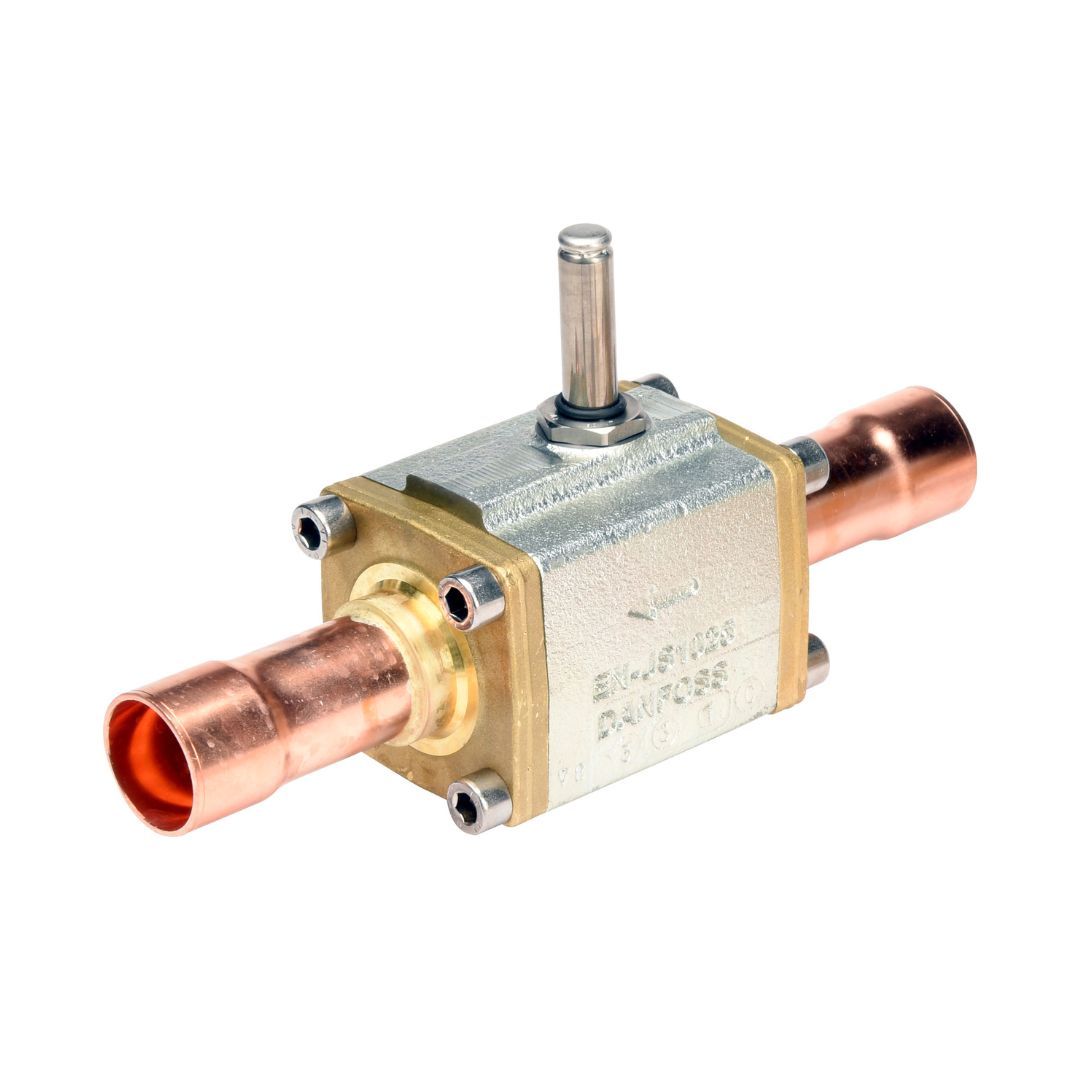

Solenoid Valve Danfoss, EVR 32, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1104
Solenoid Valve Danfoss, EVR 32, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1104
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
32,262.24 ฿
ราคาปกติ
ราคาโปรโมชัน
32,262.24 ฿
ราคาต่อหน่วย
/
ต่อ
รายละเอียด Solenoid Valve Danfoss, EVR 32, Solder, ODF, 1 5/8 Inch, Function NC Code 032L1104
Product details
Gross weight | 4.8 Kg |
Net weight | 4.42 Kg |
Volume | 7.56 Liter |
EAN | 5702428943192 |
Actuator system [mm] | 13.5 mm |
Ambient temperature | -40 - 80 °C |
Approval | UL EAC LLC CDC EURO-TYSK |
Coil | No |
Cv value [gal/min] | 19.3 gal/min |
Direction | Straightway |
Function | NC |
Inlet connection type | Solder, ODF |
Inlet size [in] | 1 5/8 in |
Kv value [m³/h] | 16.7 m³/h |
Lubricants compatibility | AB PAG PAO POE PVE |
Manual operation option | No |
Max. Working Pressure [bar] | 45.2 bar |
Max. Working Pressure [psig] | 655 psig |
MaxOPD[bar] 10W AC | 38 bar |
MaxOPD[bar] 20W DC | 17 bar |
MaxOPD[bar] coil BJ/BX | 31 bar |
MaxOPD[psi] 10W AC | 550 psi |
MaxOPD[psi] 20W DC | 246 psi |
MaxOPD[psi] coil BJ/BX | 450 psi |
Medium temperature range [°C] [max] | 105 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 221 °F |
Medium temperature range [°F] [min] | -40 °F |
MinODP [bar] | 0.2 bar |
MinODP [psi] | 2.9 psi |
MOPD[bar/psi] | Coil Dependend |
Orifice size [mm] | 22.23 mm |
Outlet connection type | Solder, ODF |
Outlet size [in] | 1 5/8 in |
Packing format | Single pack |
Parts Program name | EVR |
Product accessories | Solenoid valve accessories |
Product group | Solenoid valves |
Product Name Description | Solenoid valve |
Quantity per packing format | 1 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R125,R134a,R152a,R22 R404A,R407A,R407C,R407F R410A,R417A,R448A,R449A R450A,R452A,R513A,R1234ze(E),R507A |
SCIP dossier no. | 6a76eb5e-6ca8-43d3-be03-8320fd28438e |
Serviceable | Solenoid valve spare parts |
Type | EVR 32 |
Type designation | Solenoid valve, Solder |
UL approved refrigerants | R125,R134a,R152a,R22 R404A,R407A,R407C,R407F R410A,R417A,R448A,R449A R450A,R452A,R507A,R513A |
Valve operation | Servo-piston |
