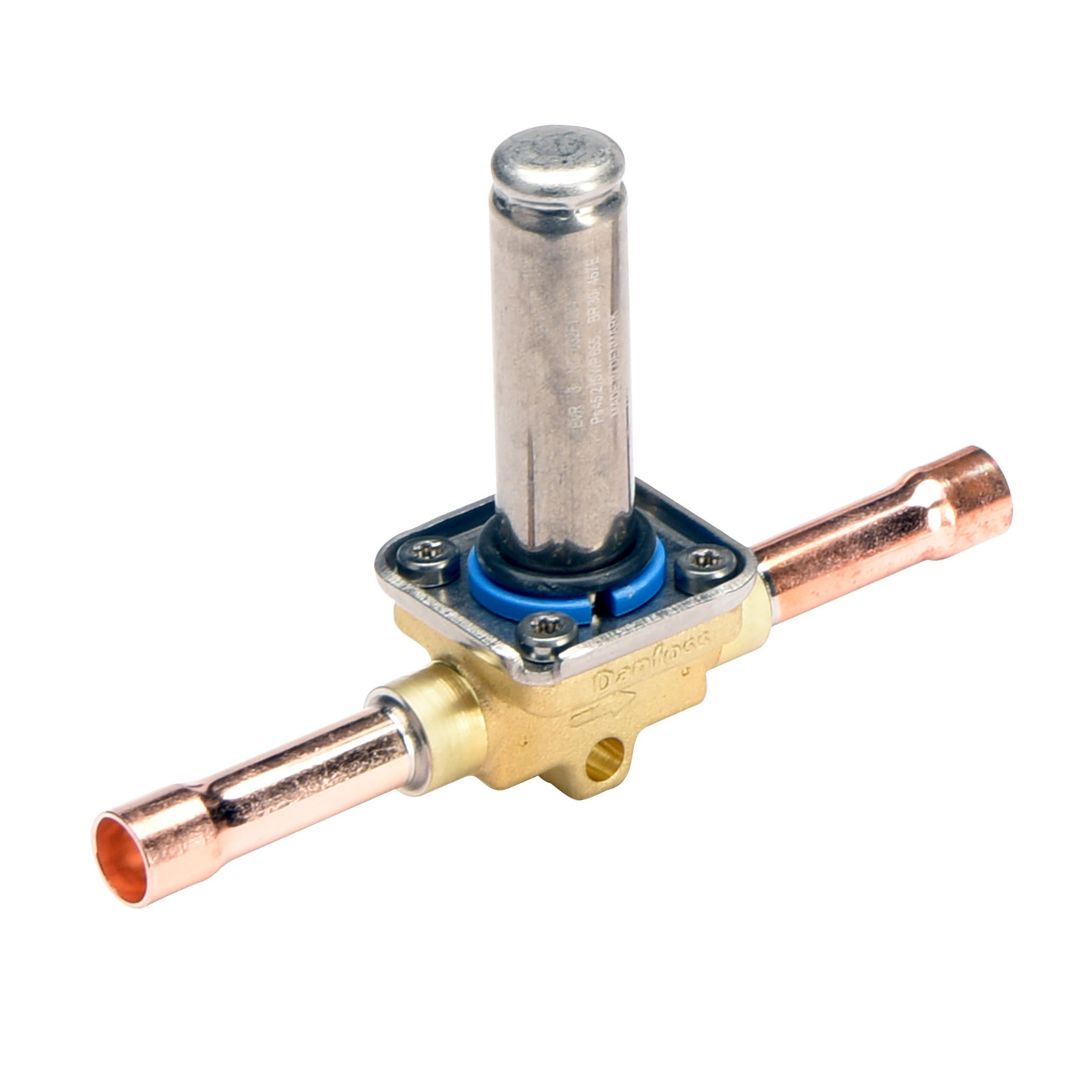

Solenoid Valve Danfoss, EVR 2, Solder, ODF, 1/4 Inch, Function NC Code 032F1201
Solenoid Valve Danfoss, EVR 2, Solder, ODF, 1/4 Inch, Function NC Code 032F1201
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
2,252.13 ฿
ราคาปกติ
ราคาโปรโมชัน
2,252.13 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Solenoid Valve Danfoss, EVR 2, Solder, ODF, 1/4 Inch, Function NC Code 032F1201
Data Sheets :
Product details
| Gross weight | 0.212 Kg |
| Net weight | 0.166 Kg |
| Volume | 0.87 Liter |
| EAN | 5702422040842 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Coil | No |
| Cv value [gal/min] | 0.18 gal/min |
| Direction | Straightway |
| Fluid Group | 1 2 |
| Function | NC |
| Identical product | 032F2302 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/4 in |
| Kv value [m³/h] | 0.16 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0 bar |
| MOPD[bar/psi] | Coil Dependend |
| MWP [bar] PED compliant | 49 bar |
| Orifice size [mm] | 2.3 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/4 in |
| Packing format | Multi pack |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf,R125,R134a,R152a,R22 R290,R32,R404A,R407A,R407C R407F,R410A,R417A,R448A,R449A R450A,R452A,R600,R600a,R513A R452B,R454B,R1234ze(E),R407H R413A,R422A,R422B,R422D,R438A R444B,R447A,R449B,R454C,R455A R463A,R513B,R515A,R515B,R516A R442A,R447B,R512A,R454A,R507A |
| SCIP dossier no. | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| SCIP dossier product name | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 2 |
| Type designation | Solenoid valve, Solder |
| Valve operation | Direct |
