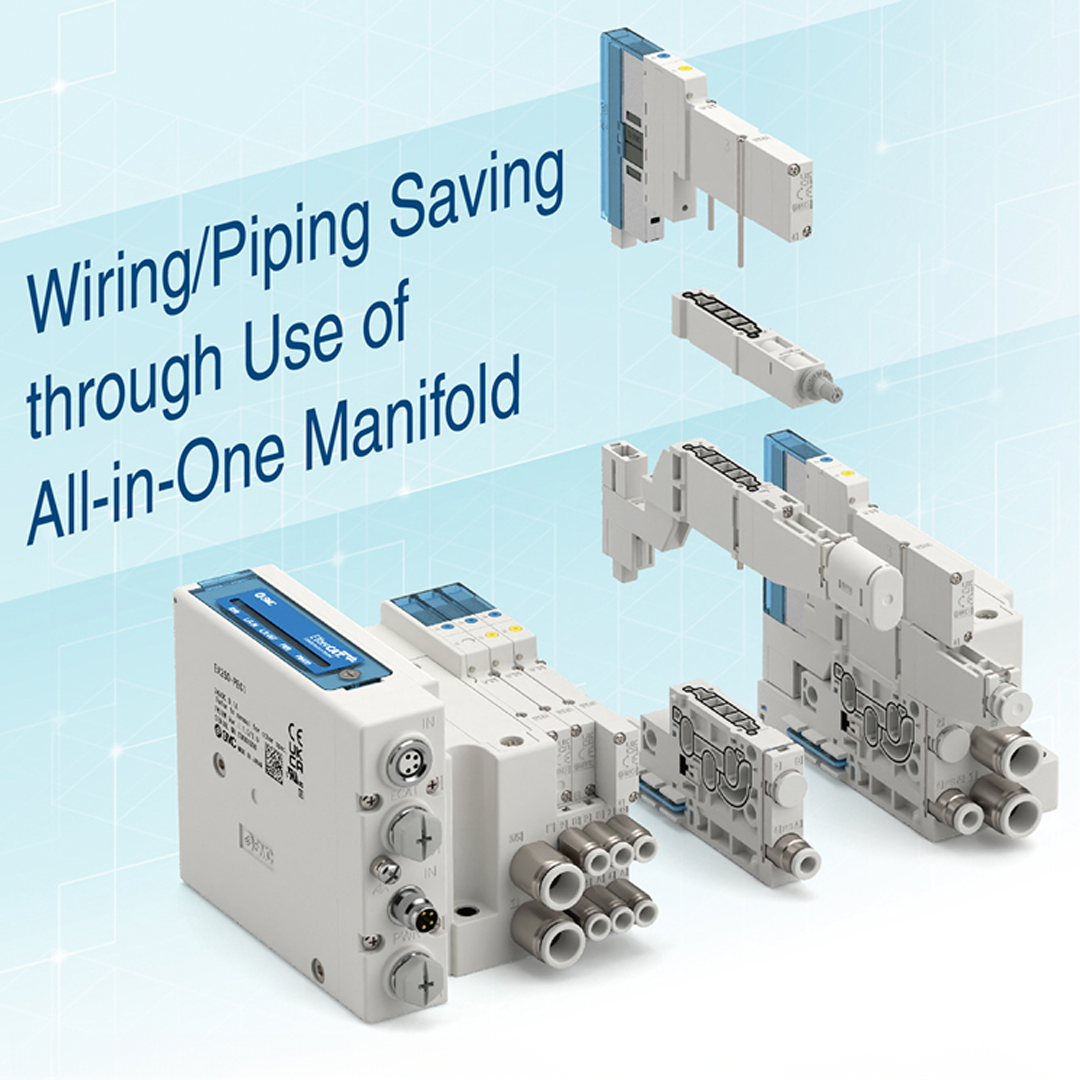

โซลินอยด์วาล์ว SMC 5/2 Solenoid/Pilot G 1/8 SY5000 Series 24V dc
โซลินอยด์วาล์ว SMC 5/2 Solenoid/Pilot G 1/8 SY5000 Series 24V dc
SMC
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
2,654.00 ฿
ราคาปกติ
ราคาโปรโมชัน
2,654.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด โซลินอยด์วาล์ว SMC 5/2 Solenoid/Pilot G 1/8 SY5000 Series 24V dc
- The SMC SY5000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/8in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. The valve space-saving design means that it can be individually mounted onto sub plates or configured onto base mount manifolds. It has a pilot exhaust and a copper-free design. This valve can be used singly or with a manifold system. The low power consumption enables direct operation by PLC and it has a non-locking manual override. This valve is available with a 300mm lead wire without a connector.
| Specifications | |
|---|---|
| Manufacturer Series | SY5000 |
| Mounting Style | Stand-Alone |
| Function | 44683 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 579NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.4W |
| Minimum Operating Pressure | 0.15MPa |
| Minimum Operating Temperature | -10°C |
| Thread Size | 1/8in |
| Maximum Operating Temperature | +50°C |
| Maximum Operating Pressure | 0.7 MPa |
| Number of Ports | 44683 |
| Thread Standard | G |
| Manufacturer Series | SY5000 |
| Mounting Style | Stand-Alone |
| Function | 44683 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 579NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.35W |
| Minimum Operating Pressure | 0.1MPa |
| Minimum Operating Temperature | -10°C |
| Number of Ports | 44683 |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Size | 1/8in |
| Maximum Operating Temperature | +50°C |
| Thread Standard | G |
| Manufacturer Series | SY5000 |
| Mounting Style | DIN Rail |
| Function | 44683 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 559NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.4W |
| Minimum Operating Pressure | 0.1MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Thread Size | 1/8in |
| Maximum Operating Pressure | 0.7 MPa |
| Number of Ports | 44683 |
| Thread Standard | G |
| Manufacturer Series | SY5000 |
| Mounting Style | DIN Rail |
| Function | 44683 |
| Connection Port Thread | G 1/8 |
| Actuation Type | Solenoid/Pilot |
| Solenoid Fitted | Yes |
| Body Material | Die Cast Aluminium |
| Maximum Flow Rate | 559NL/min |
| Solenoid Voltage | 24V dc |
| Solenoid Power Consumption | 0.4W |
| Minimum Operating Pressure | 0.15MPa |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Pressure | 0.7 MPa |
| Thread Size | 1/8in |
| Number of Ports | 44683 |
| Maximum Operating Temperature | +50°C |
| Thread Standard | G |
