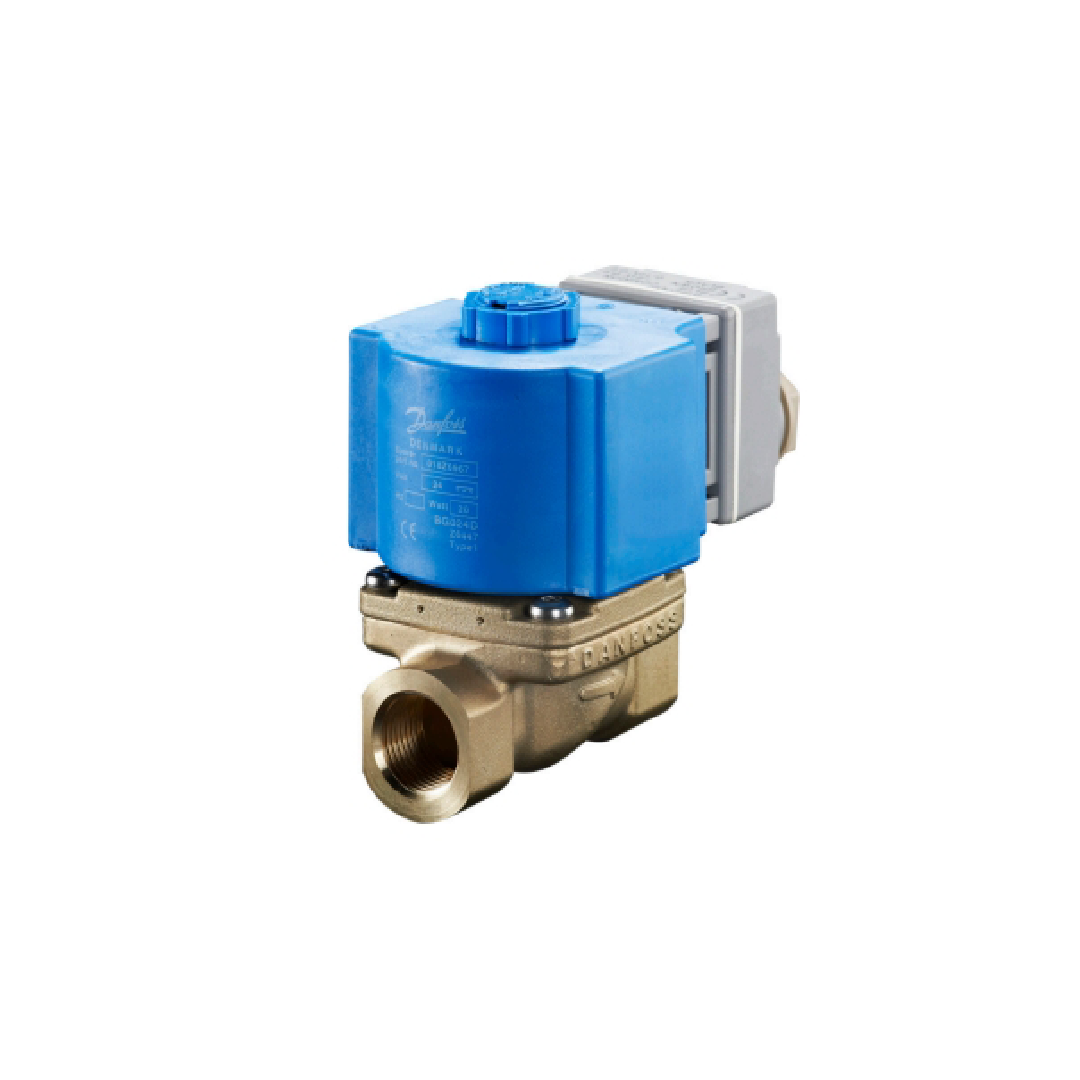

Danfoss Solenoid valve, EV260B, Function: NC, G, 3/4, 5 m³/h, PTFE 032U8057

Danfoss Solenoid valve, EV260B, Function: NC, G, 3/4, 5 m³/h, PTFE 032U8057

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 9,900.00 ฿
ราคาปกติ ราคาโปรโมชัน 9,900.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV260B, Function: NC, G, 3/4, 5 m³/h, PTFE 032U8057

นวัตกรรมล้ำสมัยจาก Danfoss นำเสนอโซลินอยด์วาล์วรุ่น EV260B รหัส 032U8057 สำหรับการควบคุมแบบสัดส่วน วาล์วทำงานแบบปกติปิด (NC) ขนาดเกลียว G 3/4 นิ้ว ควบคุมการไหลที่ 5 m³/h โดดเด่นที่สุดด้วยการผสานวัสดุซีล PTFE ซึ่งต้านทานสารเคมีและอุณหภูมิแปรปรวนได้อย่างเหนือชั้น แบรนด์ Danfoss การันตีถึงสมรรถนะการทำงานที่ละเอียดอ่อน ให้วิศวกรสามารถตั้งค่าปริมาณการไหลได้อย่างไร้ที่ติ

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV260B
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 3/4 นิ้ว
  • ความสามารถรองรับอัตราการไหล 5 m³/h
  • วัสดุซีลประกอบวาล์วชนิด PTFE

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV260B
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 3/4
  • อัตราการไหล: 5 m³/h
  • วัสดุซีล: PTFE
Gross weight 1.218 Kilogram
Net weight 1.156 Kilogram
Volume 1.295 Liter
EAN 5702423061051
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 5.8 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.5 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 7.252 psi
EEE category 5 small equipment (any external dimension < 50 cm)
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 80 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 180 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Proportional
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV260B
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 4eb0c237-8486-46ca-8052-bc7e10a477a5
SCIP dossier product name EV260B - solenoid valve
Seal Material PTFE
Serviceable Solenoid valve spare parts
Specification key EV260B 20B G 34T NC000
Type EV260B
Type designation EV260B 20
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV260B (รหัส 032U8057)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 3/4 นิ้ว
  • ปริมาณการไหล (Kv) 5 m³/h
  • วัสดุซีล PTFE
