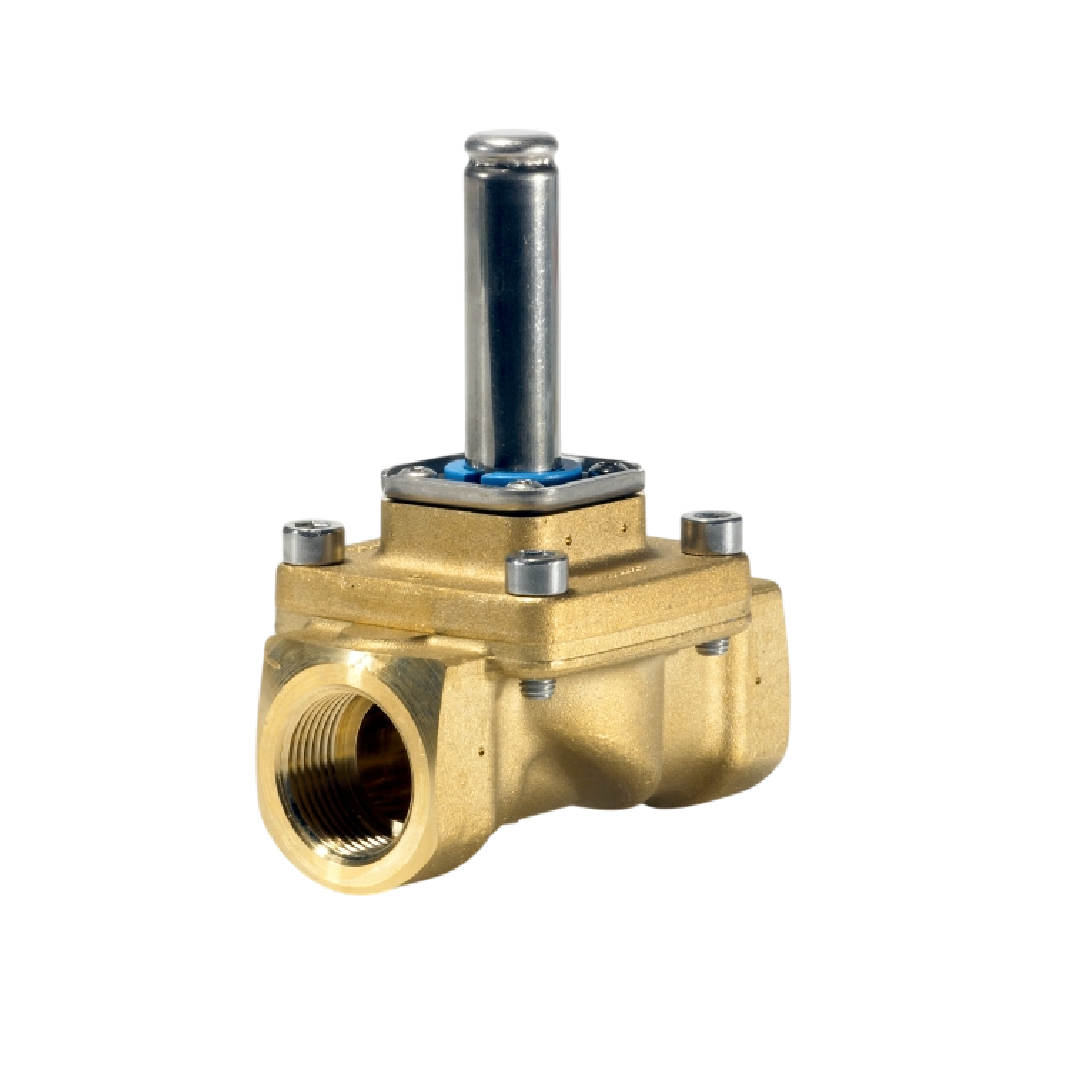

Danfoss Solenoid valve, EV250BW, Function: NC, G, 3/4, 6 m³/h, EPDM 132U2454

Danfoss Solenoid valve, EV250BW, Function: NC, G, 3/4, 6 m³/h, EPDM 132U2454

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 18,530.00 ฿
ราคาปกติ ราคาโปรโมชัน 18,530.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV250BW, Function: NC, G, 3/4, 6 m³/h, EPDM 132U2454

ปกป้องระบบของไหลในโรงงานของคุณด้วยความแม่นยำจากโซลินอยด์วาล์ว Danfoss รุ่น EV250BW รหัส 132U2454 ฟังก์ชันการทำงานแบบปกติปิด (NC) จะช่วยบล็อกการไหลอัตโนมัติเมื่อไม่มีกระแสไฟ ตัวอุปกรณ์เข้ากันได้กับท่อขนาด G 3/4 พร้อมส่งผ่านของไหลได้ปริมาณ 6 m³/h อย่างราบรื่น แบรนด์ Danfoss เลือกใช้ซีลประเภท EPDM เพื่อรับประกันความทนทานต่อน้ำ สะท้อนถึงการออกแบบเชิงวิศวกรรมที่ใส่ใจทุกรายละเอียด ให้คุณได้ใช้งานวาล์วที่เปี่ยมไปด้วยคุณภาพตามมาตรฐานสากล

คุณสมบัติ

  • ซีรีส์ EV250BW รหัสสั่งซื้อ 132U2454 จาก Danfoss
  • ฟังก์ชันวาล์วแบบ Normally Closed
  • จุดเชื่อมต่อท่อขนาด G 3/4
  • รองรับปริมาณของเหลว 6 m³/h
  • ประกอบด้วยยางซีลชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV250BW
  • รูปแบบการทำงาน NC
  • การเชื่อมต่อ G 3/4
  • อัตราการไหล 6 m³/h
  • วัสดุซีล EPDM
Gross weight 0.847 Kilogram
Net weight 0.81 Kilogram
Volume 1.295 Liter
EAN 5702428544139
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Closed and Drain
Approval ACS
PZH
RISE
SINTEF
WRAS
Approval comments WRAS (0 – 90°C)
Body material Eco brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Eco brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 6.95 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 0 psi
Est. time to close, water [ms] 100 ms
Est. time to open, water [ms] 100 ms
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
Kv value [m³/h] 6 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Assisted lift operated
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV250BW
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV250B 18BE G 34E NC000
Type EV250BW
Type designation EV250BW18
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • โมเดลวาล์ว (Valve Type) EV250BW
  • สถานะวาล์ว (Function) NC (Normally Closed)
  • มาตรฐานเกลียว (Thread) G 3/4 นิ้ว
  • ปริมาณการไหลสูงสุด (Capacity) 6 m³/h
  • วัสดุปะเก็น (Seal Type) EPDM
