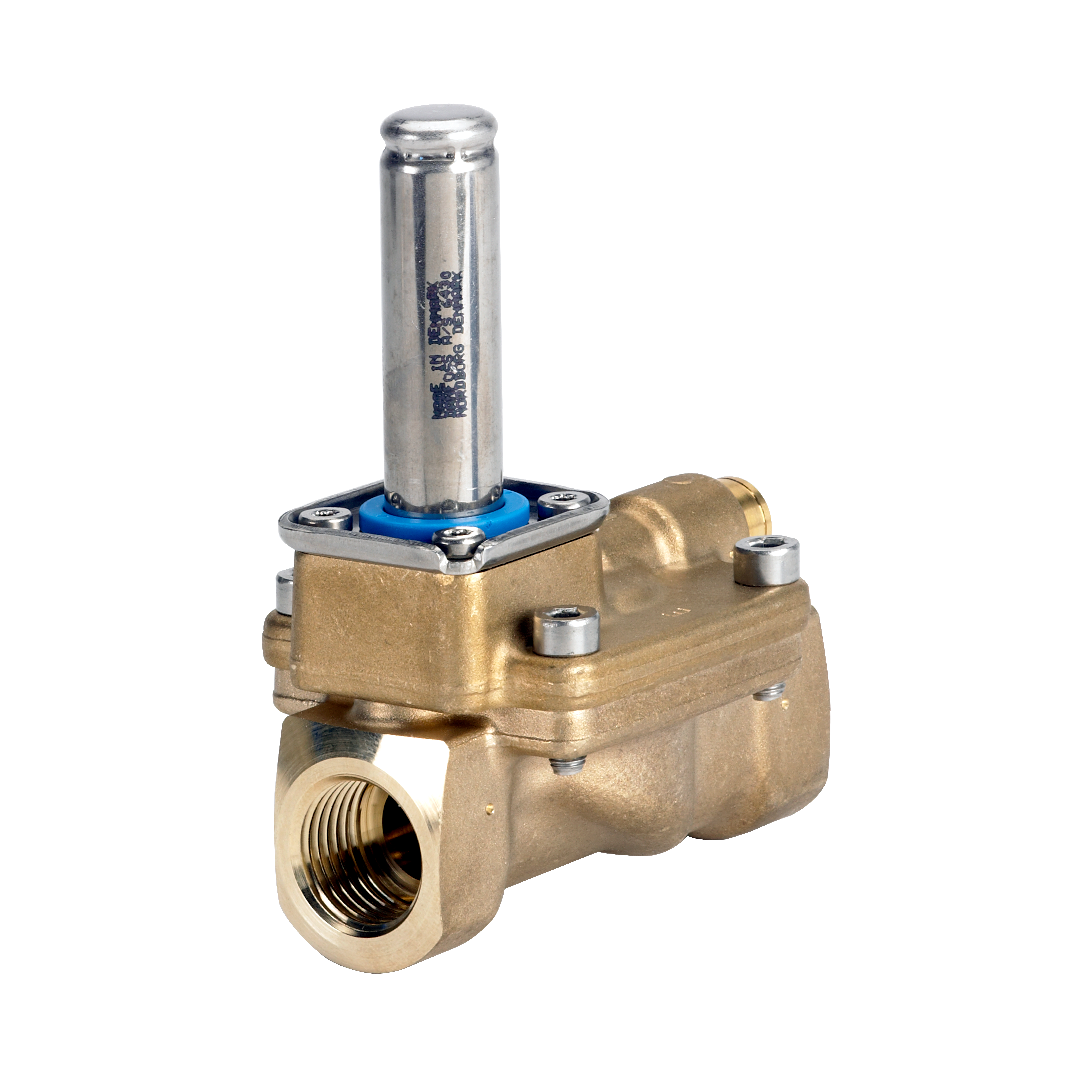

Danfoss Solenoid valve, EV228BW, Function: UN, G, 1/2, 4 m³/h, EPDM 132U2400

Danfoss Solenoid valve, EV228BW, Function: UN, G, 1/2, 4 m³/h, EPDM 132U2400

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 19,400.00 ฿
ราคาปกติ ราคาโปรโมชัน 19,400.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV228BW, Function: UN, G, 1/2, 4 m³/h, EPDM 132U2400

นำเสนอโซลูชันระบบท่อที่เหนือชั้นด้วยโซลินอยด์วาล์ว Danfoss EV228BW รหัส 132U2400 กลไกแบบ Universal (UN) ช่วยให้ตอบสนองต่อการสั่งเปิดปิดได้รวดเร็ว ลดความล่าช้าในกระบวนการทำงาน ติดตั้งเข้ากับระบบได้ง่ายดายผ่านพอร์ต G 1/2 และขับเคลื่อนของเหลวในอัตรา 4 m³/h วัสดุประกอบภายในใช้ซีล EPDM ที่ผ่านการทดสอบว่ายืดหยุ่นและทนต่อความร้อนได้ดีเยี่ยม การเลือกใช้ผลิตภัณฑ์ระดับโลกจาก Danfoss จะช่วยการันตีความปลอดภัยให้กับระบบไหลเวียนของคุณ

คุณสมบัติ

  • โซลินอยด์วาล์ว Danfoss รุ่น EV228BW รหัสสินค้า 132U2400
  • ระบบการทำงานฟังก์ชัน UN (Universal)
  • เกลียวเชื่อมต่อขนาด G 1/2
  • ประสิทธิภาพการไหลอยู่ที่ 4 m³/h
  • ใช้วัสดุซีล EPDM คุณภาพสูง

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV228BW
  • รูปแบบการทำงาน UN
  • การเชื่อมต่อ G 1/2
  • อัตราการไหล 4 m³/h
  • วัสดุซีล EPDM
Gross weight 0.718 Kilogram
Net weight 0.685 Kilogram
Volume 0.88 Liter
EAN 5702428527743
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 60 °C
Ambient temperature max. [°F] 140 °F
Application Open
Approval ACS
PZH
RISE
SINTEF
WRAS
Approval comments WRAS (0 – 70°C)
Body material Eco brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Eco brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
EPD available Yes
EU RoHS compliance Yes
EU RoHS exemption clause No
Function UN
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 1/2 in
Kv value [m³/h] 4 m³/h
Max. test pressure [bar] 25 bar
Max. test pressure [psig] 363 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Latching
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 1/2 in
Packing format Multi pack
Parts Program name EV228BW
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances No
Seal Material EPDM
Specification key EV228BW 15BE G 12E UN000
Type EV228BW
Type designation EV228BW 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ชื่อรุ่น (Model Name) EV228BW
  • ระบบวาล์ว (Control) UN (Universal)
  • ขนาดข้อต่อ (Fitting Size) G 1/2 นิ้ว
  • อัตราการไหลของไหล (Flow Rate) 4 m³/h
  • ส่วนประกอบซีล (Seal Component) EPDM
