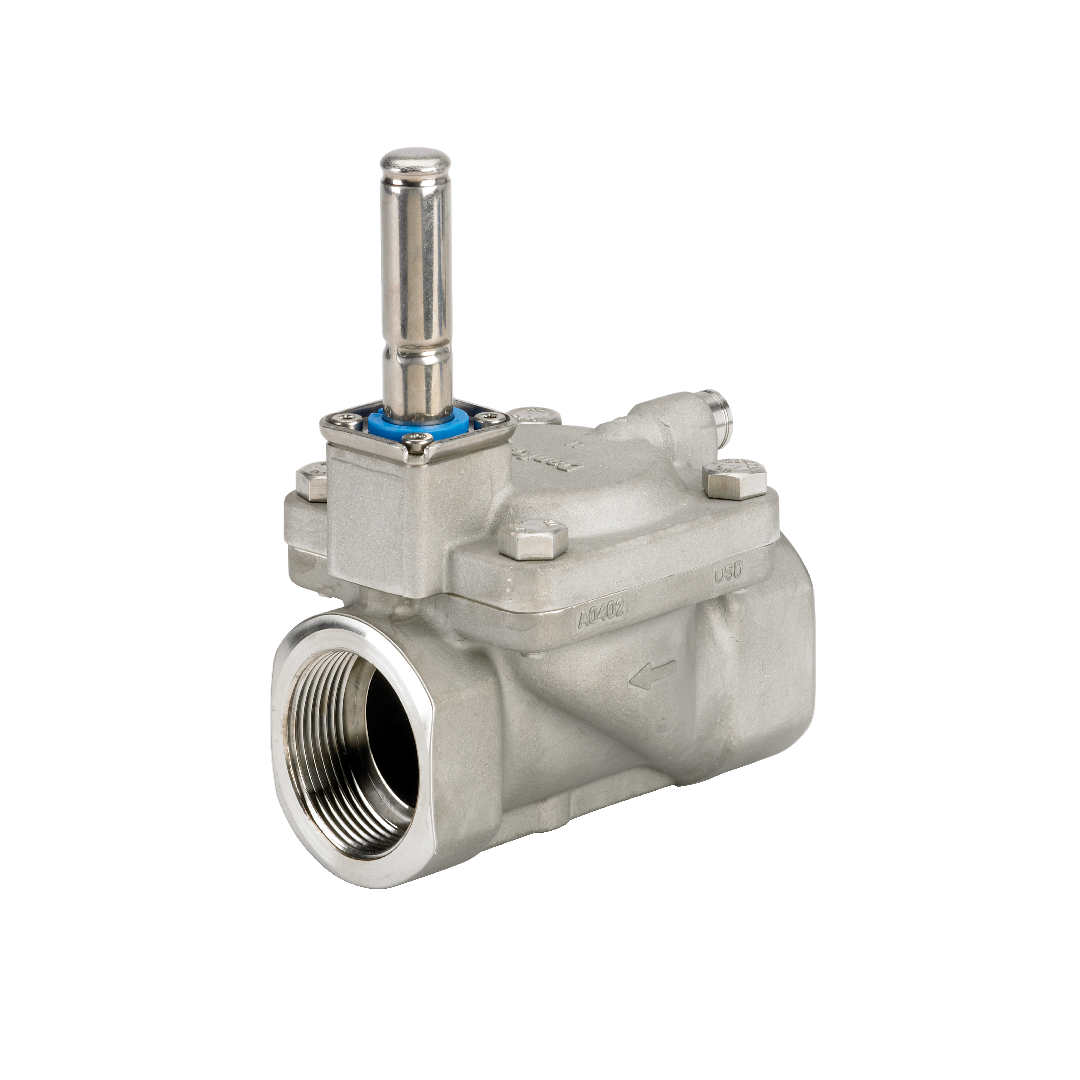

Danfoss Solenoid valve, EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM 132U2407

Danfoss Solenoid valve, EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM 132U2407

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 18,530.00 ฿
ราคาปกติ ราคาโปรโมชัน 18,530.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM 132U2407

ยกระดับประสิทธิภาพระบบท่อของคุณด้วยโซลินอยด์วาล์ว Danfoss รหัส 132U2407 ซีรีส์ EV228BW ออกแบบฟังก์ชันวาล์วให้เป็นแบบอิสระ (UN) จึงทำงานได้อย่างสมบูรณ์แบบโดยไม่ต้องพึ่งพาแรงดันเริ่มต้น มาพร้อมพอร์ตเชื่อมต่อ G 1 1/4 และมีขีดความสามารถในการรองรับอัตราการไหล 18 m³/h จุดเด่นคือการผสานซีลยาง EPDM เกรดพรีเมียมที่ทนต่อการเสื่อมสภาพได้อย่างยอดเยี่ยม มั่นใจได้ในชื่อเสียงของแบรนด์ Danfoss ที่วิศวกรทั่วโลกยอมรับในเรื่องความแม่นยำสูง

คุณสมบัติ

  • อุปกรณ์เปิดปิดน้ำ Danfoss ซีรีส์ EV228BW รหัส 132U2407
  • สั่งการเปิดปิดด้วยฟังก์ชัน UN (Universal)
  • ไซส์ข้อต่อเกลียวมาตรฐาน G 1 1/4
  • สามารถจ่ายปริมาณการไหลได้ 18 m³/h
  • ตัวซีลผลิตจาก EPDM รองรับการใช้งานหนัก

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV228BW
  • รูปแบบการทำงาน UN
  • การเชื่อมต่อ G 1 1/4
  • อัตราการไหล 18 m³/h
  • วัสดุซีล EPDM
Gross weight 2.239 Kilogram
Net weight 1.863 Kilogram
Volume 7.334 Liter
EAN 5702428527781
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 60 °C
Ambient temperature max. [°F] 140 °F
Application Open
Approval ACS
CE
PZH
RISE
SINTEF
UKCA
Body material Stainless steel
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 20.8 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
EPD available Yes
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Function UN
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 1 1/4 in
Kv value [m³/h] 18 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Latching
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220BW 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV228BW 32SS G 114E UN000
Type EV228BW
Type designation EV228BW 32
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รหัสซีรีส์ (Series) EV228BW
  • ฟังก์ชันควบคุม (Operation) UN (Universal)
  • จุดเชื่อมต่อ (Port Size) G 1 1/4 นิ้ว
  • อัตราการไหลผ่าน (Kv) 18 m³/h
  • ชนิดของซีล (Material) EPDM
