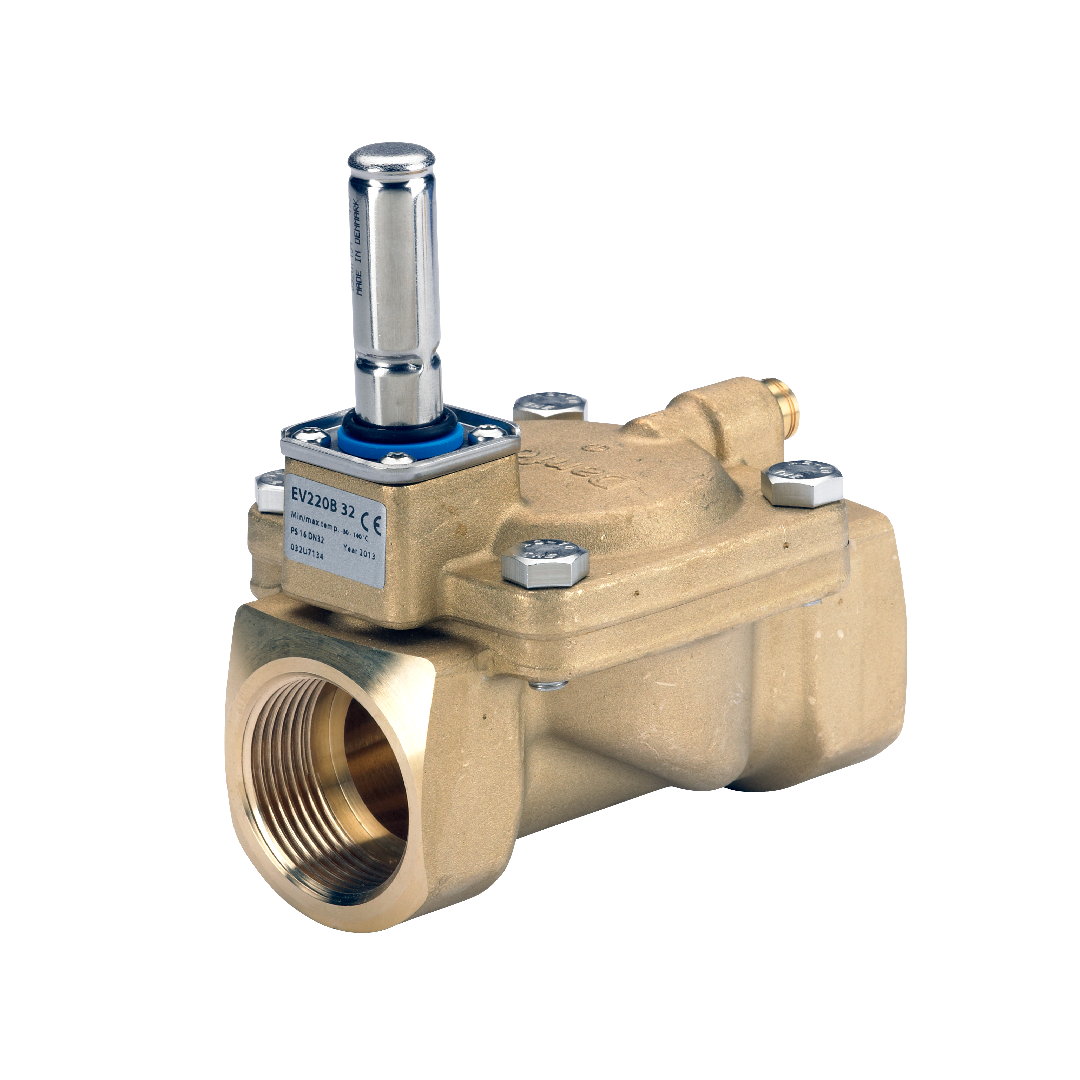

Danfoss Solenoid valve, EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM 132U2406

Danfoss Solenoid valve, EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM 132U2406

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 37,760.00 ฿
ราคาปกติ ราคาโปรโมชัน 37,760.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV228BW, Function: UN, G, 1 1/4, 18 m³/h, EPDM 132U2406

ปกป้องระบบของไหลในโรงงานของคุณด้วยความแม่นยำจากโซลินอยด์วาล์ว Danfoss รุ่น EV228BW รหัส 132U2406 มาพร้อมระบบการทำงานแบบอิสระ (UN) ที่ยืดหยุ่นและรองรับความแปรผันของแรงดันได้ดีเยี่ยม ตัวอุปกรณ์เข้ากันได้กับท่อขนาด G 1 1/4 พร้อมส่งผ่านของไหลได้ปริมาณ 18 m³/h อย่างราบรื่น แบรนด์ Danfoss เลือกใช้ซีลประเภท EPDM เพื่อรับประกันความทนทานต่อน้ำ สะท้อนถึงการออกแบบเชิงวิศวกรรมที่ใส่ใจ เพื่อให้คุณได้ใช้งานวาล์วคุณภาพระดับพรีเมียมอย่างแท้จริง

คุณสมบัติ

  • โซลินอยด์วาล์ว Danfoss รุ่น EV228BW รหัสสินค้า 132U2406
  • ระบบการทำงานฟังก์ชัน อเนกประสงค์ (UN)
  • เกลียวเชื่อมต่อขนาด G 1 1/4
  • ประสิทธิภาพการไหลอยู่ที่ 18 m³/h
  • ใช้วัสดุซีล EPDM คุณภาพสูง

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV228BW
  • รูปแบบการทำงาน UN
  • การเชื่อมต่อ G 1 1/4
  • อัตราการไหล 18 m³/h
  • วัสดุซีล EPDM
Gross weight 2.21 Kilogram
Net weight 1.815 Kilogram
Volume 7.334 Liter
EAN 5715162489871
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval ACS
PZH
RISE
SINTEF
Body material Eco brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Eco brass
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 20.8 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Function UN
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 1 1/4 in
Kv value [m³/h] 18 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Latching
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 1 1/4 in
Packing format Single pack
Parts Program name EV228BW 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV228BW 32BE G 114E UN000
Type EV228BW
Type designation EV228BW 32
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • โมเดลวาล์ว (Valve Type) EV228BW
  • สถานะวาล์ว (Function) UN (Universal)
  • มาตรฐานเกลียว (Thread) G 1 1/4 นิ้ว
  • ปริมาณการไหลสูงสุด (Capacity) 18 m³/h
  • วัสดุปะเก็น (Seal Type) EPDM
