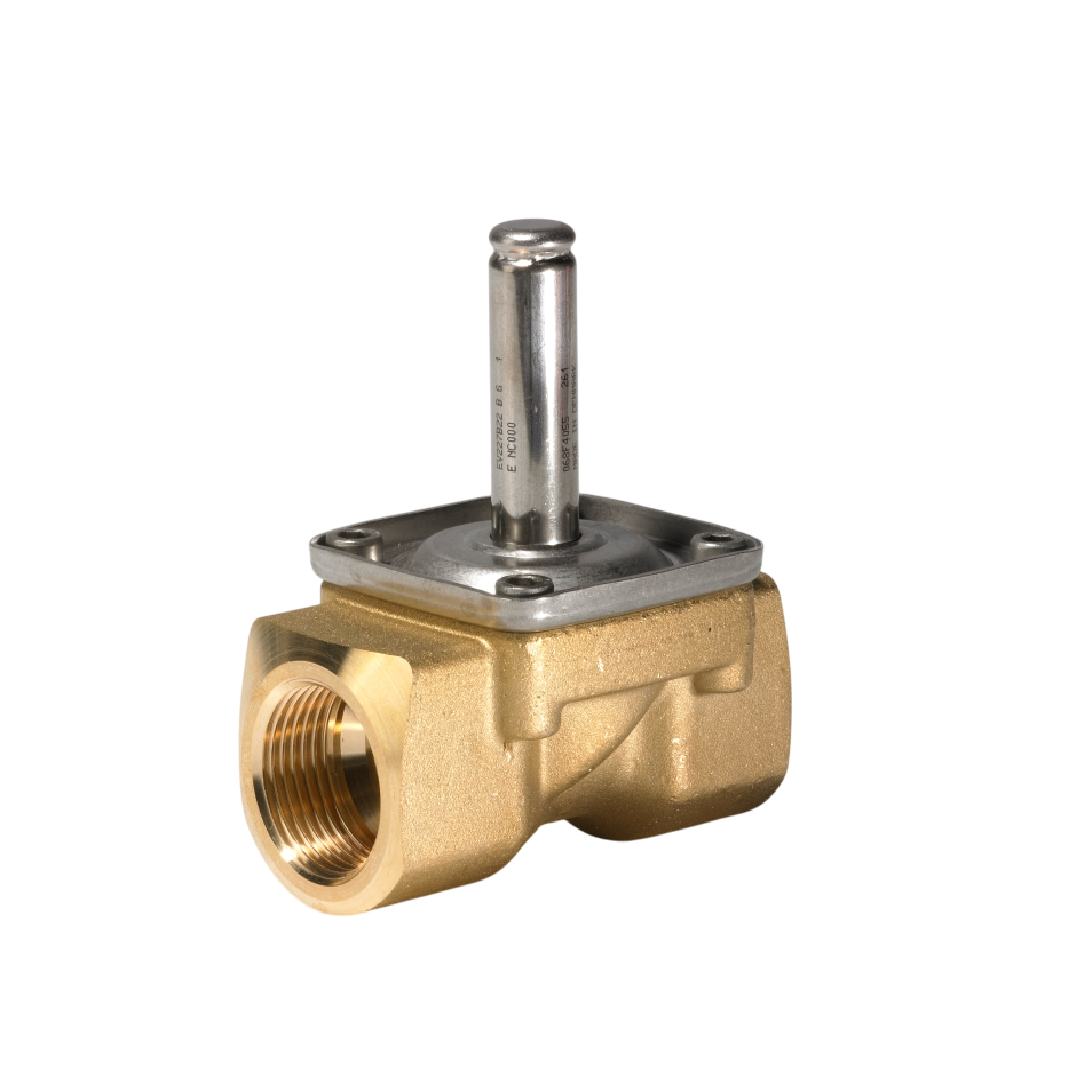

Danfoss Solenoid valve, EV227B, Function: NC, G, 1, 5.5 m³/h, EPDM 068F4055

Danfoss Solenoid valve, EV227B, Function: NC, G, 1, 5.5 m³/h, EPDM 068F4055

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 7,000.00 ฿
ราคาปกติ ราคาโปรโมชัน 7,000.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV227B, Function: NC, G, 1, 5.5 m³/h, EPDM 068F4055

ปกป้องระบบของไหลในโรงงานของคุณด้วยความแม่นยำจากโซลินอยด์วาล์ว Danfoss รุ่น EV227B รหัส 068F4055 ระบบปกติปิด (NC) ช่วยกักเก็บของไหลไว้จนกว่าจะได้รับการสั่งการด้วยไฟฟ้า เพิ่มความปลอดภัยเชิงรุกและสร้างความเชื่อมั่น ตัวอุปกรณ์เข้ากันได้กับท่อขนาด G 1 พร้อมส่งผ่านของไหลได้ปริมาณ 5.5 m³/h อย่างราบรื่น แบรนด์ Danfoss เลือกใช้ซีลประเภท EPDM เพื่อรับประกันความทนทานต่อน้ำ สะท้อนถึงการออกแบบเชิงวิศวกรรมที่ลดความยุ่งยากในการบำรุงรักษาในอนาคตได้อย่างดี

คุณสมบัติ

  • โซลินอยด์วาล์ว Danfoss รุ่น EV227B รหัสสินค้า 068F4055
  • ระบบการทำงานฟังก์ชัน Normally Closed
  • เกลียวเชื่อมต่อขนาด G 1
  • ประสิทธิภาพการไหลอยู่ที่ 5.5 m³/h
  • ใช้วัสดุซีล EPDM คุณภาพสูง

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV227B
  • รูปแบบการทำงาน NC
  • การเชื่อมต่อ G 1
  • อัตราการไหล 5.5 m³/h
  • วัสดุซีล EPDM
Gross weight 0.986 Kilogram
Net weight 0.898 Kilogram
Volume 1.295 Liter
EAN 5702422158981
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 6.4 gal/min
Differential pressure [bar] [max] 5 bar
Differential pressure [bar] [min] 0.1 bar
Differential pressure [psi] [max] 73 psi
Differential pressure [psi] [min] 1.45 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 5.5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 232 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Water & Brine
Medium temperature range [°C] [max] 60 °C
Medium temperature range [°C] [min] -35 °C
Medium temperature range [°F] [max] 140 °F
Medium temperature range [°F] [min] -31 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 22 mm
Orifice size fraction [in] 7/8 in
Packing format Multi pack
Parts Program name EV227B
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e19d7d21-722c-4442-ad97-de80a89c5873
SCIP dossier product name EV227B 10-22 - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV227B 22B G 1E NC000
Type EV227B
Type designation EV227B 22
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • โมเดลวาล์ว (Valve Type) EV227B
  • สถานะวาล์ว (Function) NC (Normally Closed)
  • มาตรฐานเกลียว (Thread) G 1 นิ้ว
  • ปริมาณการไหลสูงสุด (Capacity) 5.5 m³/h
  • วัสดุปะเก็น (Seal Type) EPDM
