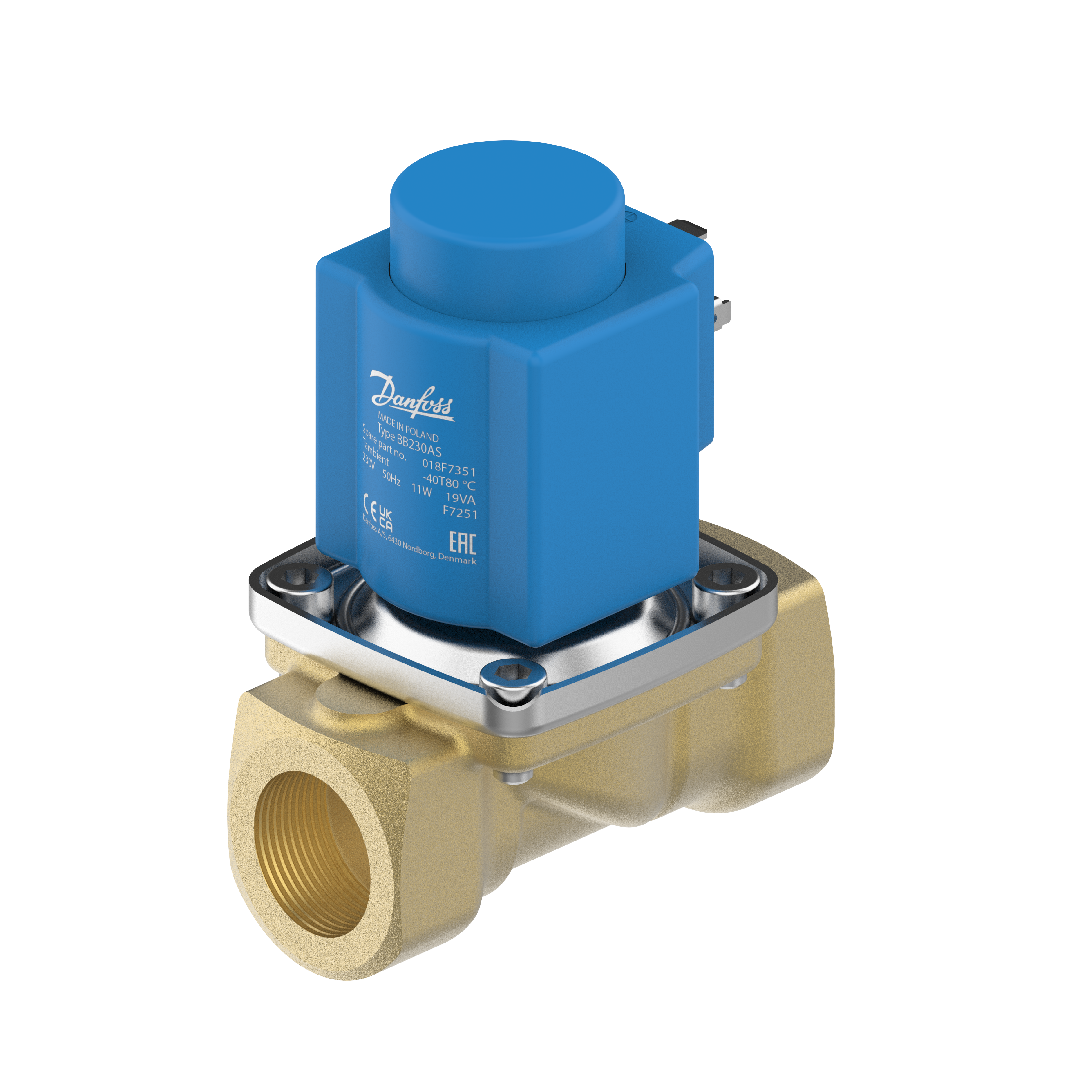

Danfoss Solenoid valve, EV221BW, Function: NO, G, 3/4, 5 m³/h, EPDM 132U200331

Danfoss Solenoid valve, EV221BW, Function: NO, G, 3/4, 5 m³/h, EPDM 132U200331

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 18,530.00 ฿
ราคาปกติ ราคาโปรโมชัน 18,530.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV221BW, Function: NO, G, 3/4, 5 m³/h, EPDM 132U200331

ควบคุมการไหลเวียนได้อย่างสมบูรณ์แบบด้วยวาล์วคุณภาพระดับโลก Danfoss ซีรีส์ EV221BW รหัส 132U200331 รองรับการเดินเครื่องต่อเนื่องด้วยสถานะปกติเปิด (NO) ช่วยรักษาอัตราการไหลในวงจรที่สำคัญ มาพร้อมพอร์ตเชื่อมต่อ G 3/4 และมีขีดความสามารถในการรองรับอัตราการไหล 5 m³/h จุดเด่นคือการผสานซีลยาง EPDM เกรดพรีเมียมที่ทนต่อการเสื่อมสภาพได้อย่างยอดเยี่ยม มั่นใจได้ในชื่อเสียงของแบรนด์ Danfoss ผู้นำที่ช่วยยืดอายุการใช้งานให้กับเครื่องจักรในอุตสาหกรรม

คุณสมบัติ

  • ซีรีส์ EV221BW รหัสสั่งซื้อ 132U200331 จาก Danfoss
  • ฟังก์ชันวาล์วแบบ NO (ปกติเปิด)
  • จุดเชื่อมต่อท่อขนาด G 3/4
  • รองรับปริมาณของเหลว 5 m³/h
  • ประกอบด้วยยางซีลชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV221BW
  • รูปแบบการทำงาน NO
  • การเชื่อมต่อ G 3/4
  • อัตราการไหล 5 m³/h
  • วัสดุซีล EPDM
Gross weight 0.955 Kilogram
Net weight 0.91 Kilogram
Volume 0.854 Liter
EAN 5715162890028
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Approval ACS
PZH
RISE
SINTEF
WRAS
Approval comments WRAS (0 – 85°C)
Body material Eco brass
Coil type BB230AS
Connection Internal/External Internal
Connection material DZR Eco brass, CW724R
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 5.8 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 1.45 psi
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
Kv value [m³/h] 5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 10 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV221BW 10 - 22
Power consumption [W] 50Hz 11 W
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV221BW20BE G34E NO000 BB230AS
Supply voltage 50Hz Max [V] 230 V
Type EV221BW
Type designation EV221BW 10

ข้อมูลทางเทคนิค

  • รหัสซีรีส์ (Series) EV221BW
  • ฟังก์ชันควบคุม (Operation) NO (Normally Open)
  • จุดเชื่อมต่อ (Port Size) G 3/4 นิ้ว
  • อัตราการไหลผ่าน (Kv) 5 m³/h
  • ชนิดของซีล (Material) EPDM
