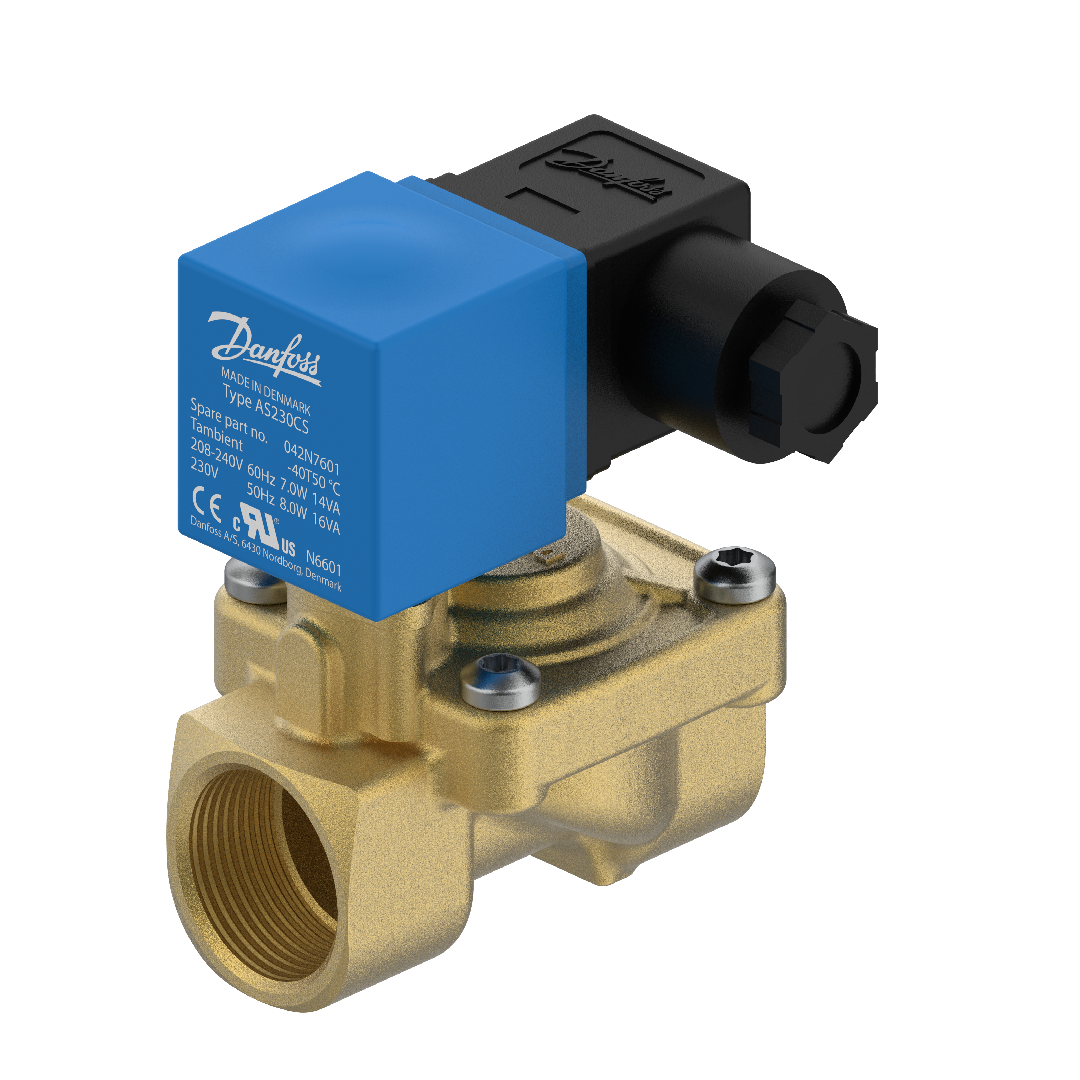

Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 7 m³/h, EPDM 042U651732

Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 7 m³/h, EPDM 042U651732

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 9,900.00 ฿
ราคาปกติ ราคาโปรโมชัน 9,900.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 7 m³/h, EPDM 042U651732

Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 7 m³/h, EPDM 042U651732 : โซลินอยด์วาล์ว Danfoss รุ่น EV220S รหัส 042U651732 ขนาด 3/4 นิ้ว อุปกรณ์ควบคุมของไหลมาตรฐานวิศวกรรมสูง ทำงานแบบปกติเปิด (NO) โดยวาล์วจะเปิดให้อากาศหรือของเหลวไหลผ่านในสภาวะปกติ ให้ความเร็วและอัตราการไหลที่ 7 m³/h การเชื่อมต่อเกลียวมาตรฐาน G เลือกใช้ซีลยาง EPDM ซึ่งมีคุณสมบัติเด่นทนทานต่อไอน้ำ สารละลายบางประเภท และความร้อน ช่วยให้ระบบปิดล็อกแน่นหนาเมื่อจ่ายไฟ Danfoss ชูจุดเด่นด้านนวัตกรรมประหยัดพลังงาน ตัววาล์วมีความทนทานสูง ลดปัญหาการสึกหรอ และช่วยให้ระบบทำงานได้อย่างต่อเนื่องไม่มีสะดุด

คุณสมบัติ

  • รหัสผลิต 042U651732 โซลินอยด์วาล์วทนทานสูงตระกูล EV220S
  • สถานะวาล์วเปิด (NO) เป็นค่าเริ่มต้น ช่วยระบายแรงดันเมื่อไม่มีไฟฟ้า
  • อัตราการไหลเวียนของระบบอยู่ที่ 7 m³/h ทำงานได้อย่างคล่องตัว
  • รูปแบบข้อต่อขนาด 3/4 นิ้ว เกลียว G ติดตั้งร่วมกับระบบท่อเดิมได้ทันที
  • ซีลกันน้ำชนิด EPDM ป้องกันปัญหาการหยดหรือรั่วซึมในระยะยาว
Danfoss Solenoid Valve 042U651719

ข้อมูลจำเพาะ

  • แบรนด์และประเภท: Danfoss Solenoid valve
  • รุ่นสินค้า: EV220S
  • ฟังก์ชันการทำงาน: NO
  • รายละเอียดและอัตราการไหล: G, 3/4, 7 m³/h
  • วัสดุซีลและรหัสสินค้า: EPDM รหัส 042U651732
Gross weight 0.548 Kilogram
Net weight 0.528 Kilogram
Volume 0.912 Cubic decimeter
EAN 5715162523636
Actuator S
Actuator size 9 mm clip-on S
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval CE
UKCA
WRAS
c UL us
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Coil option Clip-on
Coil type AS
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 8.1 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
Electrical connection Spade DIN 43650-A
Enclosure rating IP IP65
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Frequency [Hz] 50/60 Hz
Function NO
Kv value [m³/h] 7 m³/h
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note WRAS - medium temp. max 50° C
Media recommendations Water & Brine
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 17 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220S
Power consumption [W] 50Hz 8 W
Power consumption [W] 60Hz 7 W
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name EV220S
Seal Material EPDM
Serviceable No
Specification key EV220S 18B G 12E NO000 AS230CS
Supply voltage 50Hz Max [V] 230 V
Supply voltage 60Hz Max [V] 240 V
Supply voltage 60Hz Min [V] 208 V
Supply voltage [V] AC 230 V
Type EV220S
Type designation EV220S 18
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • รุ่นสินค้า: EV220S
  • ฟังก์ชันการทำงาน: NO
  • รูปแบบการเชื่อมต่อ: G, 3/4
  • อัตราการไหล: 7 m³/h
  • วัสดุซีล: EPDM
