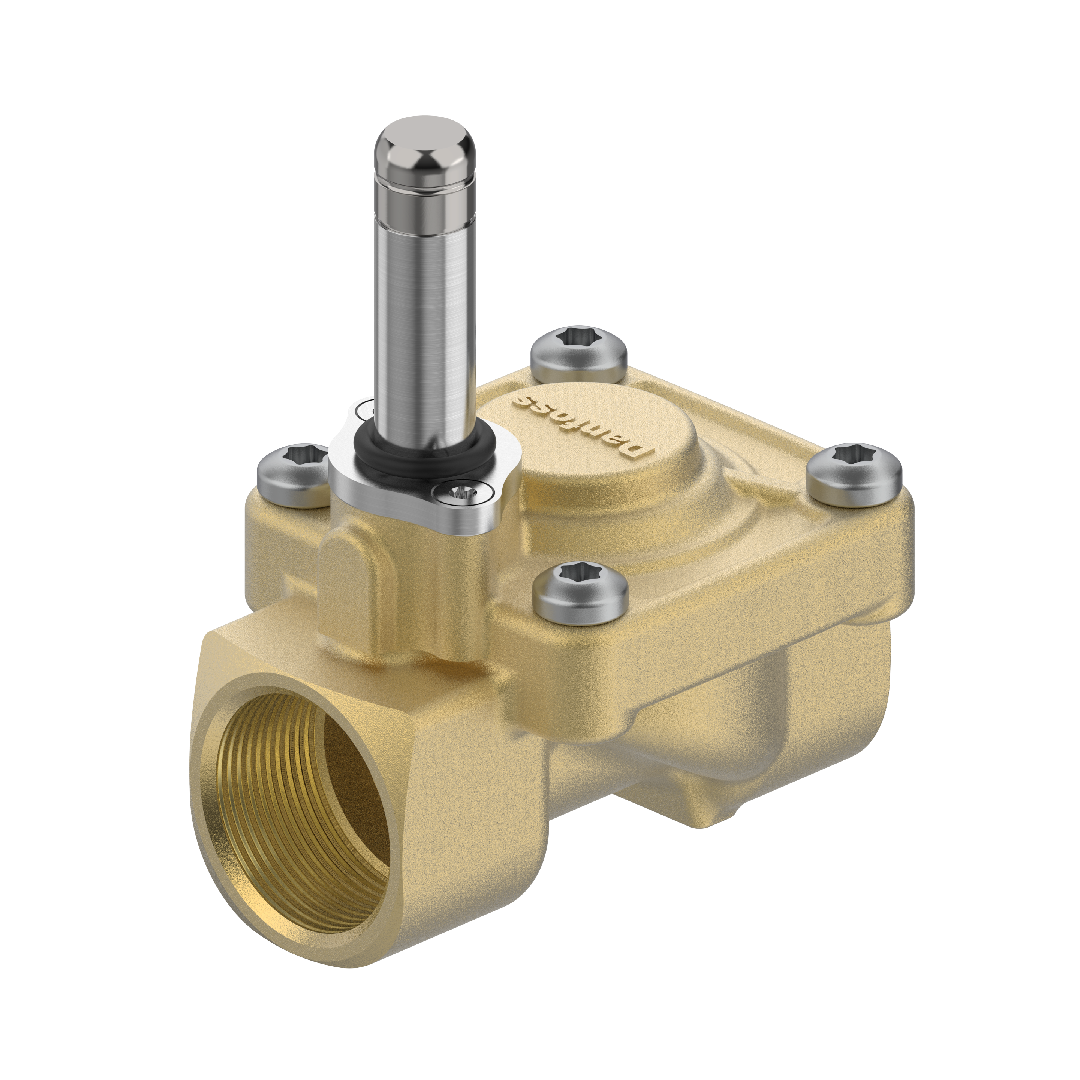

Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 4 m³/h, FKM 042U6116

Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 4 m³/h, FKM 042U6116

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 9,900.00 ฿
ราคาปกติ ราคาโปรโมชัน 9,900.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 4 m³/h, FKM 042U6116

Danfoss Solenoid valve, EV220S, Function: NO, G, 3/4, 4 m³/h, FKM 042U6116 : โซลินอยด์วาล์ว Danfoss รุ่น EV220S รหัส 042U6116 ขนาด 3/4 นิ้ว ฟังก์ชันปกติเปิด (NO) ตอบโจทย์งานควบคุมของไหลที่ต้องการความทนทานสูง จ่ายอัตราการไหล 4 m³/h เกลียวเชื่อมต่อ G ยึดแน่น ทนทานเป็นพิเศษด้วยซีล FKM ซึ่งมีความทนทานสูงต่อสารเคมี น้ำมัน และอุณหภูมิที่สูงมาก ป้องกันการรั่วซึมเมื่อวาล์วสับสวิตช์ปิด Danfoss โดดเด่นในเรื่องการออกแบบส่วนประกอบที่ได้มาตรฐานสากล ให้การเปิด-ปิดที่เงียบ แม่นยำ ยืดอายุการใช้งาน และช่วยลดภาระค่าใช้จ่ายในการบำรุงรักษาระบบอุตสาหกรรมอย่างมีประสิทธิภาพ

คุณสมบัติ

  • พาร์ทนัมเบอร์ 042U6116 จากครอบครัว EV220S ของ Danfoss
  • ระบบ Normally Open (NO) วาล์วพร้อมทำงานตัดการไหลเมื่อสั่งการด้วยระบบไฟฟ้า
  • อัตราการส่งผ่านของเหลวมีความเสถียรที่ระดับ 4 m³/h
  • ไซส์ข้อต่อ 3/4 นิ้ว แบบเกลียว G เหมาะสำหรับพื้นที่ติดตั้งที่มีจำกัด
  • ซีล FKM คุณภาพสูง ทนต่อการกัดกร่อนจากน้ำมันเชื้อเพลิงและน้ำมันหล่อลื่น
Danfoss Solenoid Valve 042U6115

ข้อมูลจำเพาะ

  • แบรนด์และประเภท: Danfoss Solenoid valve
  • รุ่นสินค้า: EV220S
  • ฟังก์ชันการทำงาน: NO
  • รายละเอียดและอัตราการไหล: G, 3/4, 4 m³/h
  • วัสดุซีลและรหัสสินค้า: FKM รหัส 042U6116
Gross weight 0.401 Kilogram
Net weight 0.105 Kilogram
Volume 0.912 Cubic decimeter
EAN 5715162525548
Actuator S
Actuator size 9 mm clip-on S
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval c UL us
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
Est. time to close, water [ms] 400 ms
Est. time to open, water [ms] 100 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 14 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220S
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name EV220S
Seal Material FKM
Serviceable No
Specification key EV220S 17B G 34F NO000
Type EV220S
Type designation EV220S 17
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • รุ่นสินค้า: EV220S
  • ฟังก์ชันการทำงาน: NO
  • รูปแบบการเชื่อมต่อ: G, 3/4
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: FKM
