Danfoss Solenoid valve, EV220S, Function: NC, G, 3/8, 1.6 m³/h, EPDM 042U4610

Danfoss Solenoid valve, EV220S, Function: NC, G, 3/8, 1.6 m³/h, EPDM 042U4610

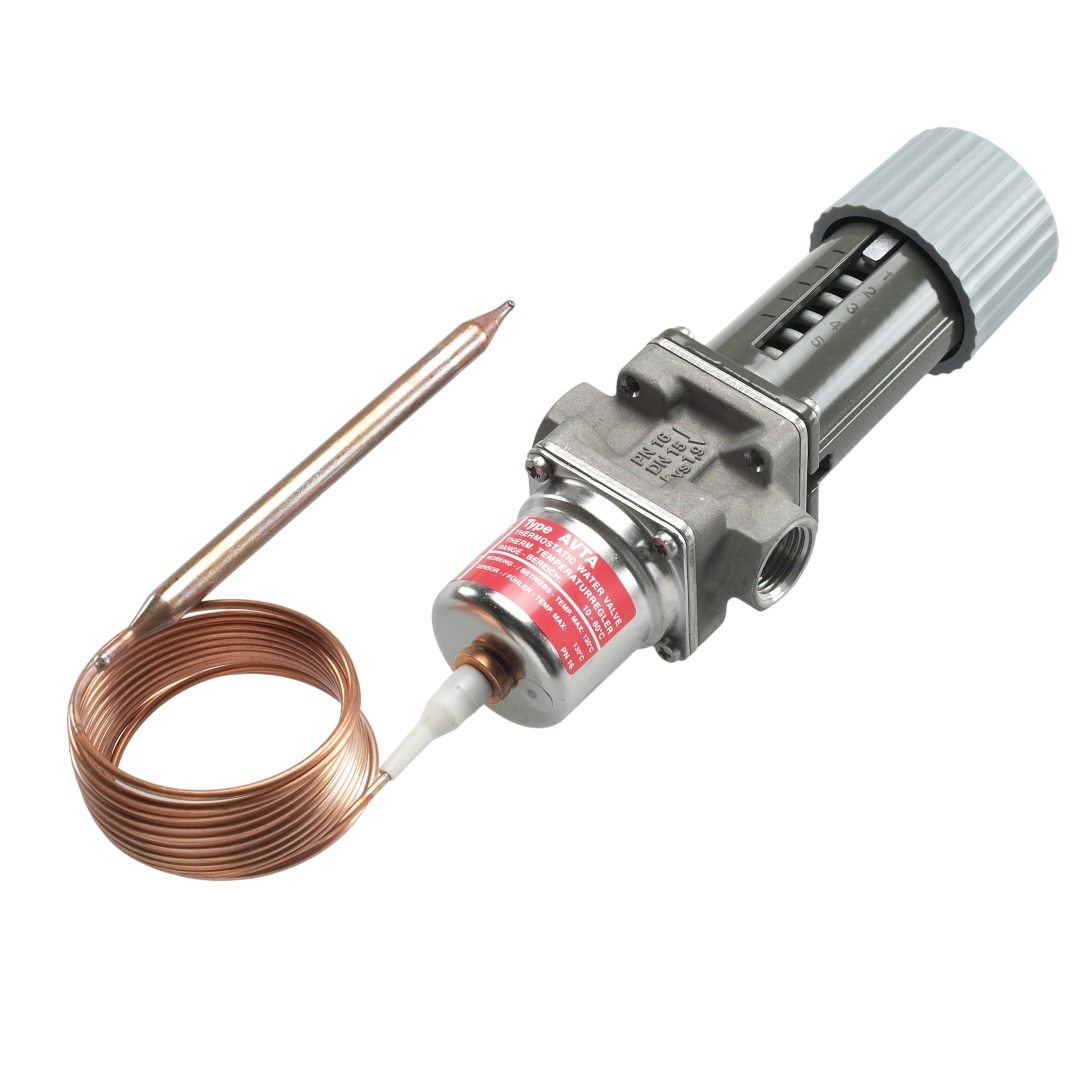

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 9,910.00 ฿
ราคาปกติ ราคาโปรโมชัน 9,910.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220S, Function: NC, G, 3/8, 1.6 m³/h, EPDM 042U4610

การทำงานที่ราบรื่นไร้รอยต่อเริ่มต้นที่โซลินอยด์วาล์ว Danfoss ซีรีส์ EV220S รหัส 042U4610 วาล์วระบบปกติปิด (NC) ที่ติดตั้งง่ายด้วยเกลียว G ขนาด 3/8 นิ้ว ควบคุมปริมาณของเหลวได้อย่างแม่นยำที่ 1.6 m³/h เสริมความทนทานด้วยซีลยาง EPDM ที่ออกแบบมาเพื่อปกป้องระบบจากน้ำและไอน้ำ แบรนด์ Danfoss ยืนยันถึงความเชี่ยวชาญด้านวิศวกรรมที่ช่วยให้อุปกรณ์ทุกชิ้นทำงานได้อย่างเต็มประสิทธิภาพและลดต้นทุนการดำเนินงาน

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220S
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 3/8 นิ้ว
  • ความสามารถรองรับอัตราการไหล 1.6 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220S
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 3/8
  • อัตราการไหล: 1.6 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.3 Kilogram
Net weight 0.161 Kilogram
Volume 0.338 Liter
EAN 5702428653633
Actuator S
Actuator size 9 mm clip-on S
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval WRAS
c UL us
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/8
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 1.85 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.2 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 2.9 psi
Est. time to close, water [ms] 300 ms
Est. time to open, water [ms] 50 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
Kv value [m³/h] 1.6 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Water & Brine
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 10 mm
Orifice size fraction [in] 3/8 in
Packing format Multi pack
Parts Program name EV220S
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 15 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name EV220S
Seal Material EPDM
Serviceable No
Specification key EV220S 10B G 38E NC000
Type EV220S
Type designation EV220S 10
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220S (รหัส 042U4610)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 3/8 นิ้ว
  • ปริมาณการไหล (Kv) 1.6 m³/h
  • วัสดุซีล EPDM
