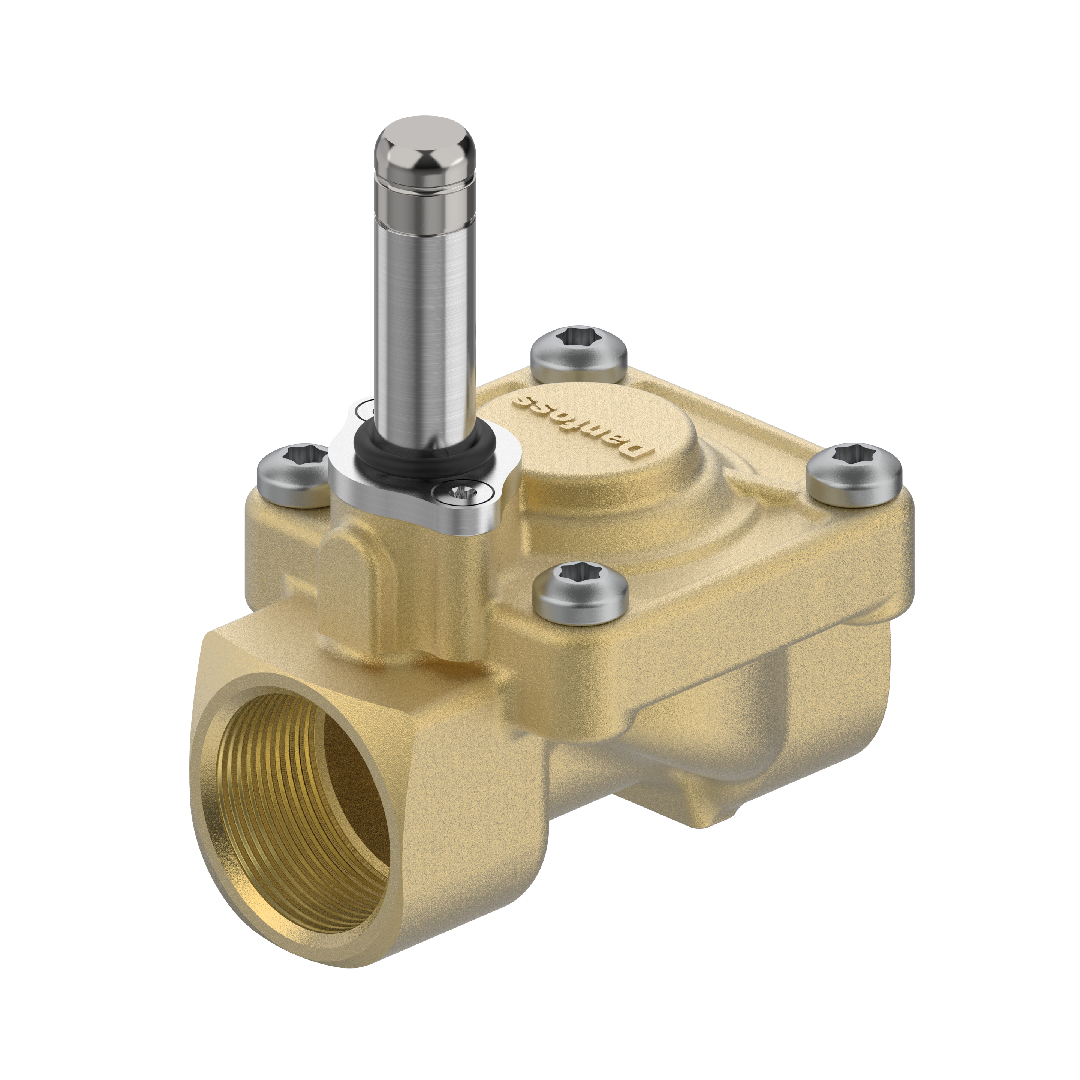

Danfoss Solenoid valve, EV220S, Function: NC, G, 3/4, 5 m³/h, FKM 042U4618

Danfoss Solenoid valve, EV220S, Function: NC, G, 3/4, 5 m³/h, FKM 042U4618

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 6,980.00 ฿
ราคาปกติ ราคาโปรโมชัน 6,980.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220S, Function: NC, G, 3/4, 5 m³/h, FKM 042U4618

เทคโนโลยีการควบคุมขั้นสูงจาก Danfoss นำเสนอโซลินอยด์วาล์วรุ่น EV220S รหัส 042U4618 ที่ตอบสนองได้รวดเร็ว ทำงานในสถานะปกติปิด (NC) ใช้จุดเชื่อมต่อเกลียว G ขนาด 3/4 นิ้ว สามารถรองรับอัตราการไหลได้ 5 m³/h โดดเด่นเป็นพิเศษด้วยวัสดุซีล FKM ที่มีคุณสมบัติทนทานต่อน้ำมันและสารเคมีบางชนิดได้อย่างดีเยี่ยม ด้วยมาตรฐานการผลิตจากแบรนด์ Danfoss จึงการันตีได้ถึงอายุการใช้งานที่ยาวนานและการทำงานที่ไร้ที่ติ

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220S
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 3/4 นิ้ว
  • ความสามารถรองรับอัตราการไหล 5 m³/h
  • วัสดุซีลประกอบวาล์วชนิด FKM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220S
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 3/4
  • อัตราการไหล: 5 m³/h
  • วัสดุซีล: FKM
Gross weight 0.38 Kilogram
Net weight 0.092 Kilogram
Volume 0.309 Liter
EAN 5715162525630
Actuator S
Actuator size 9 mm clip-on S
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval c UL us
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 5.75 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
Est. time to close, water [ms] 400 ms
Est. time to open, water [ms] 100 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
Kv value [m³/h] 5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 17 mm
Orifice size fraction [in] 4/16 in
Packing format Multi pack
Parts Program name EV220S
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 25 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name EV220S
Seal Material FKM
Serviceable No
Specification key EV220S 17 G 34F NC000
Type EV220S
Type designation EV220S 17
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220S (รหัส 042U4618)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 3/4 นิ้ว
  • ปริมาณการไหล (Kv) 5 m³/h
  • วัสดุซีล FKM
