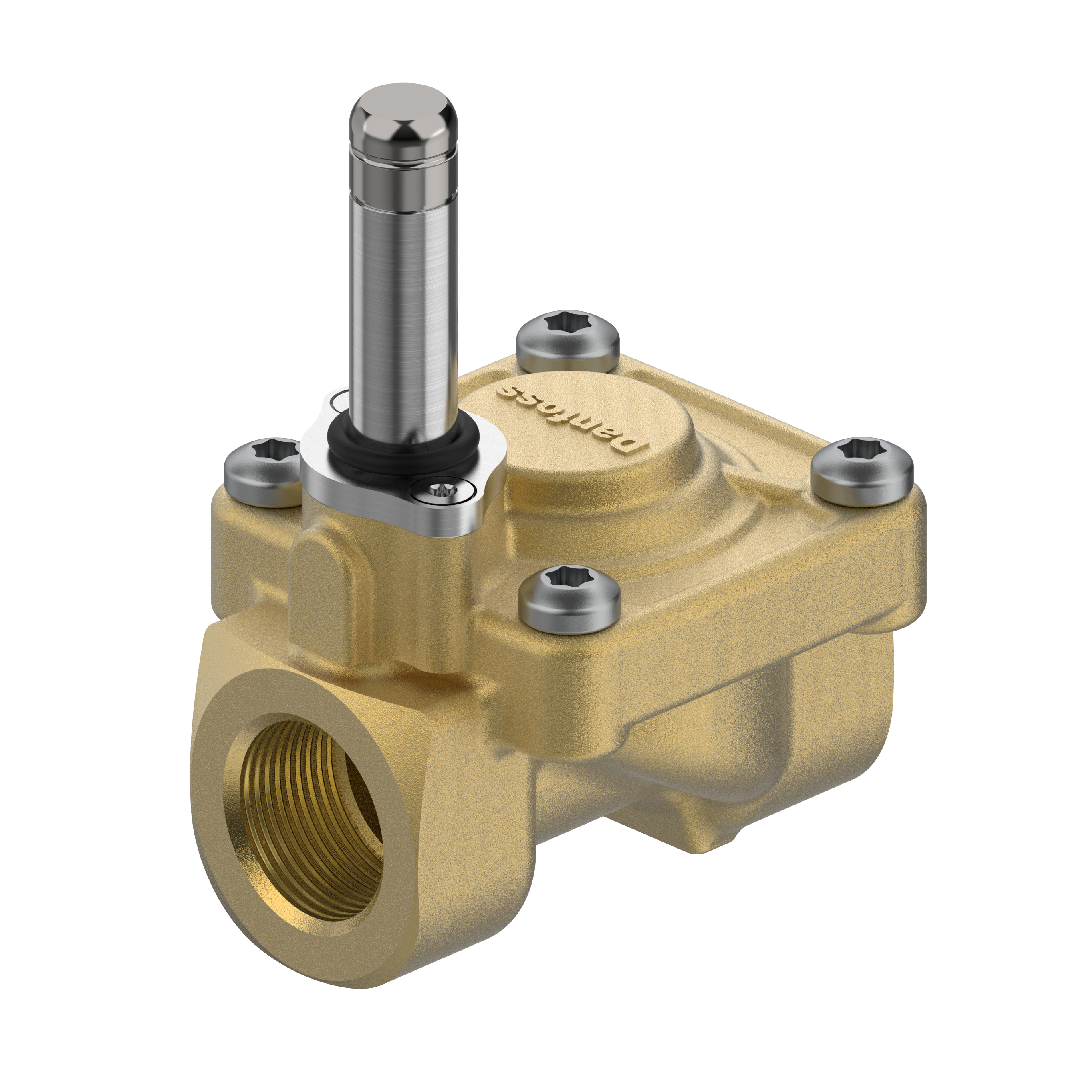

Danfoss Solenoid valve, EV220S, Function: NC, G, 1/2, 4 m³/h, FKM 042U4615

Danfoss Solenoid valve, EV220S, Function: NC, G, 1/2, 4 m³/h, FKM 042U4615

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 7,000.00 ฿
ราคาปกติ ราคาโปรโมชัน 7,000.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220S, Function: NC, G, 1/2, 4 m³/h, FKM 042U4615

มั่นใจทุกครั้งที่ใช้งานด้วยวาล์วโซลินอยด์ Danfoss รุ่น EV220S รหัส 042U4615 ที่มีกลไกควบคุมทรงประสิทธิภาพ วาล์วตั้งค่าเริ่มต้นแบบปิด (NC) เชื่อมต่อได้แน่นหนาด้วยเกลียว G ขนาด 1/2 นิ้ว จัดการอัตราการไหลได้ 4 m³/h รุ่นนี้เสริมเกราะป้องกันด้วยซีล FKM ทนทานต่อน้ำมันและสภาพการทำงานที่หนักหน่วง นวัตกรรมจาก Danfoss ไม่เพียงแต่ให้ความเที่ยงตรง แต่ยังช่วยปกป้องระบบของคุณให้ทำงานได้อย่างต่อเนื่องและราบรื่น

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220S
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 1/2 นิ้ว
  • ความสามารถรองรับอัตราการไหล 4 m³/h
  • วัสดุซีลประกอบวาล์วชนิด FKM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220S
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 1/2
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: FKM
Gross weight 0.42 Kilogram
Net weight 0.399 Kilogram
Volume 0.338 Cubic decimeter
EAN 5715162492215
Actuator S
Actuator size 9 mm clip-on S
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval c UL us
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
Est. time to close, water [ms] 400 ms
Est. time to open, water [ms] 100 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 14 mm
Orifice size fraction [in] 5/8 in
Packing format Multi pack
Parts Program name EV220S
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 15 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name EV220S
Seal Material FKM
Serviceable No
Specification key EV220S 14 G 12F NC000
Type EV220S
Type designation EV220S 14
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220S (รหัส 042U4615)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1/2 นิ้ว
  • ปริมาณการไหล (Kv) 4 m³/h
  • วัสดุซีล FKM
