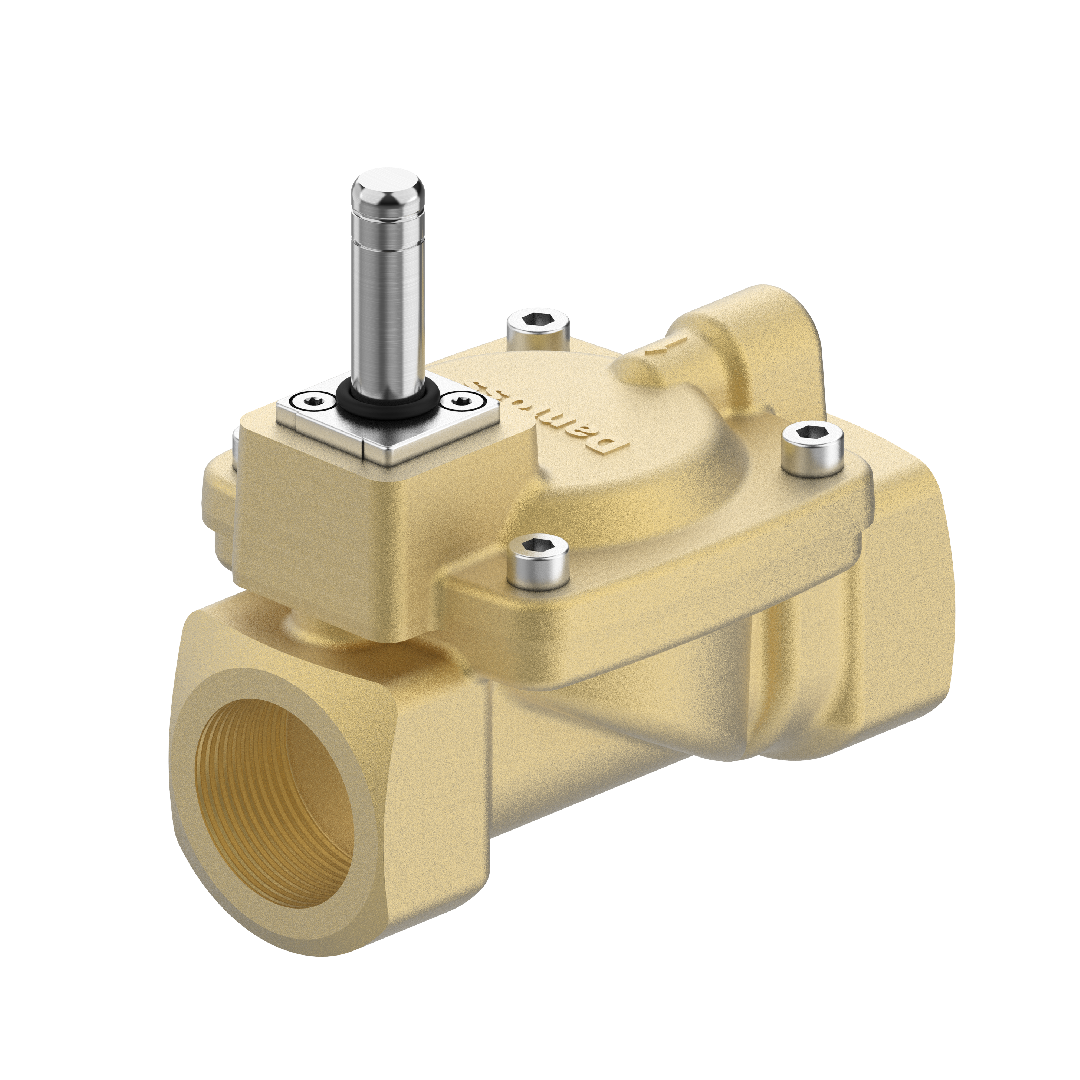

Danfoss Solenoid valve, EV220S, Function: NC, G, 1, 11 m³/h, EPDM 042U4625

Danfoss Solenoid valve, EV220S, Function: NC, G, 1, 11 m³/h, EPDM 042U4625

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 9,900.00 ฿
ราคาปกติ ราคาโปรโมชัน 9,900.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220S, Function: NC, G, 1, 11 m³/h, EPDM 042U4625

วาล์วโซลินอยด์ Danfoss รุ่น EV220S รหัส 042U4625 นวัตกรรมเพื่อการควบคุมของไหลที่เปี่ยมด้วยเสถียรภาพ ตัวอุปกรณ์ทำงานในระบบปกติปิด (NC) มาพร้อมเกลียวเชื่อมต่อมาตรฐาน G ขนาด 1 นิ้ว รองรับอัตราการไหลได้มากถึง 11 m³/h โดดเด่นด้วยซีลยาง EPDM ที่ออกแบบมาเป็นพิเศษให้ทนทานต่อน้ำและไอน้ำได้อย่างยอดเยี่ยม มั่นใจได้ในวิศวกรรมขั้นสูงจาก Danfoss ที่เน้นความแม่นยำและยืดอายุการใช้งานในระบบอุตสาหกรรมให้ยาวนาน

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220S
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 1 นิ้ว
  • ความสามารถรองรับอัตราการไหล 11 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220S
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 1
  • อัตราการไหล: 11 m³/h
  • วัสดุซีล: EPDM
Gross weight 1.348 Kilogram
Net weight 1.332 Kilogram
Volume 1.313 Liter
EAN 5715162495124
Actuator S
Actuator size 9 mm clip-on S
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval CE
UKCA
UL
WRAS
c UL us
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 12.7 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 1000 ms
Est. time to open, water [ms] 1500 ms
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 11 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 218 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Water & Brine
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 25 mm
Orifice size fraction [in] 1 in
Packing format Multi pack
Parts Program name EV220S
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 5109bece-eeb9-4151-89cf-c63ee268441d
SCIP dossier product name EV220S
Seal Material EPDM
Serviceable No
Specification key EV220S 25B G 1E NC000
Type EV220S
Type designation EV220S 25
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220S (รหัส 042U4625)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1 นิ้ว
  • ปริมาณการไหล (Kv) 11 m³/h
  • วัสดุซีล EPDM
