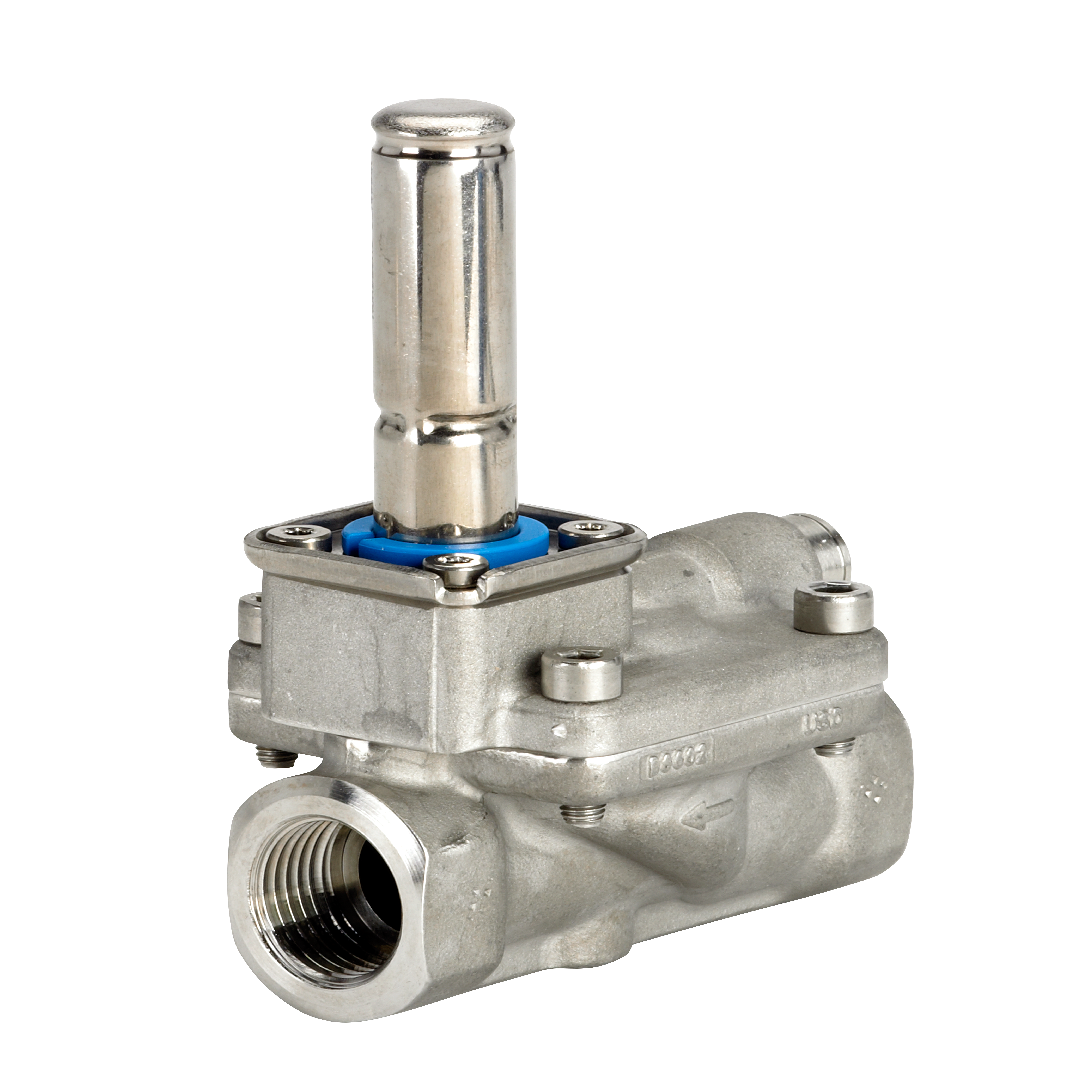

Danfoss Solenoid valve, EV220BW, Function: NO, G, 3/4, 8 m³/h, EPDM 132U2081

Danfoss Solenoid valve, EV220BW, Function: NO, G, 3/4, 8 m³/h, EPDM 132U2081

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 36,180.00 ฿
ราคาปกติ ราคาโปรโมชัน 36,180.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220BW, Function: NO, G, 3/4, 8 m³/h, EPDM 132U2081

เพิ่มความมั่นใจในการจัดการระบบน้ำและของเหลวด้วย Danfoss รุ่น EV220BW รหัสสินค้า 132U2081 ทำงานด้วยระบบปกติเปิด (NO) ที่เอื้อให้ของเหลวไหลเวียนได้ตลอดเวลาและหยุดเมื่อสั่งการ ตัดปัญหาระบบกระตุก ด้วยขนาดข้อต่อ G 3/4 ทำให้วาล์วตัวนี้สามารถประมวลผลการไหลได้เต็มที่ขนาด 8 m³/h ป้องกันการรั่วไหลอย่างเหนือชั้นด้วยซีล EPDM คุณภาพอุตสาหกรรมที่ทนทาน Danfoss มุ่งมั่นพัฒนาผลิตภัณฑ์ที่แข็งแกร่ง เพื่อให้ระบบสายการผลิตทำงานได้อย่างราบรื่นสุดขีด

คุณสมบัติ

  • โซลินอยด์วาล์ว Danfoss รุ่น EV220BW รหัสสินค้า 132U2081
  • ระบบการทำงานฟังก์ชัน Normally Open
  • เกลียวเชื่อมต่อขนาด G 3/4
  • ประสิทธิภาพการไหลอยู่ที่ 8 m³/h
  • ใช้วัสดุซีล EPDM คุณภาพสูง

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV220BW
  • รูปแบบการทำงาน NO
  • การเชื่อมต่อ G 3/4
  • อัตราการไหล 8 m³/h
  • วัสดุซีล EPDM
Gross weight 1.174 Kilogram
Net weight 0.85 Kilogram
Volume 0.88 Liter
EAN 5702428527736
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval ACS
PZH
RISE
SINTEF
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 3/4 in
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220BW 20SS G 34E NO000
Type EV220BW
Type designation EV220BW 20
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นผลิตภัณฑ์ (Product Model) EV220BW
  • การทำงานพื้นฐาน (Action) NO (Normally Open)
  • ลักษณะจุดต่อ (Connection Type) G 3/4 นิ้ว
  • ค่าการไหล (Flow Capacity) 8 m³/h
  • วัสดุยางซีล (Sealing) EPDM
