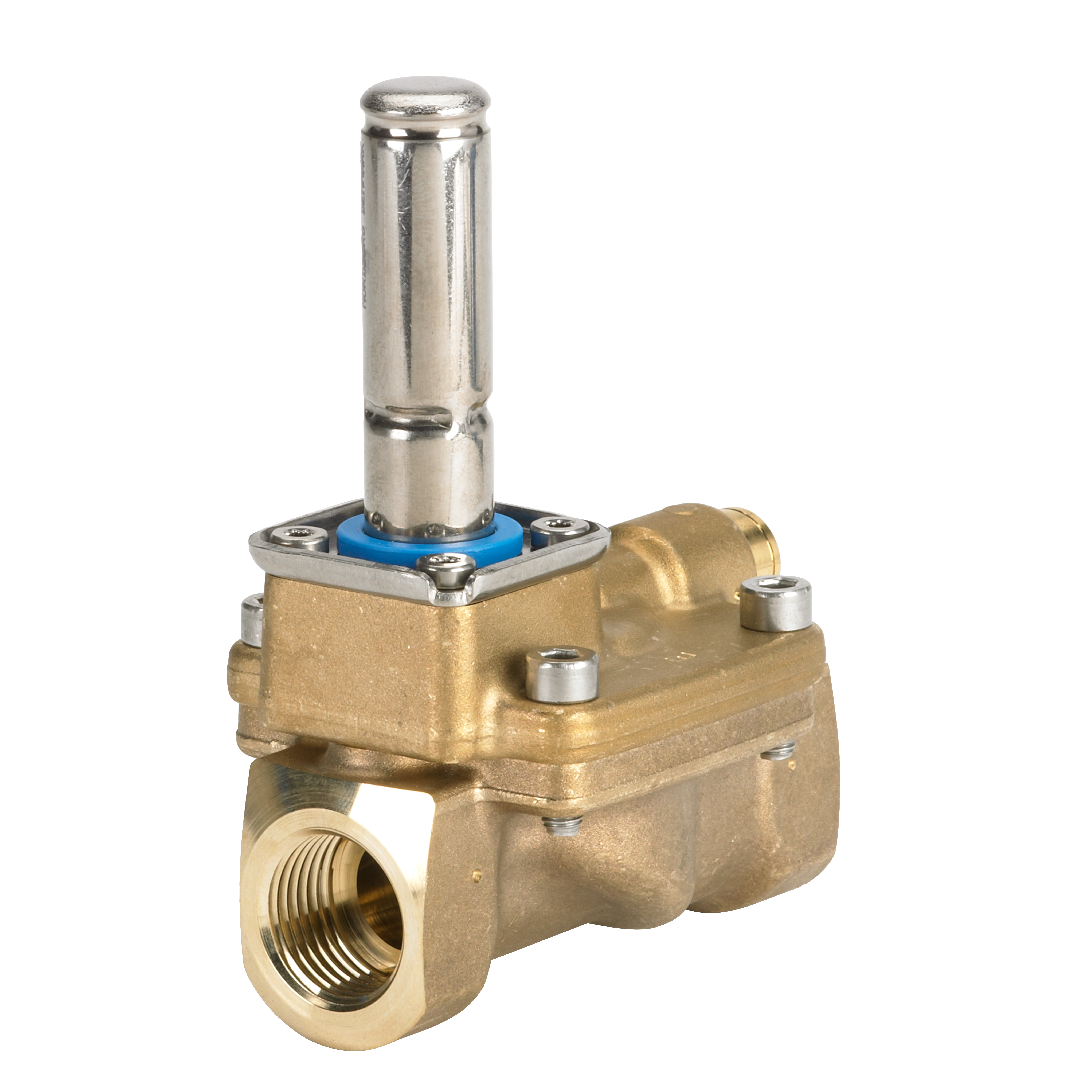

Danfoss Solenoid valve, EV220BW, Function: NO, G, 1/2, 4 m³/h, EPDM 132U1501

Danfoss Solenoid valve, EV220BW, Function: NO, G, 1/2, 4 m³/h, EPDM 132U1501

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 36,180.00 ฿
ราคาปกติ ราคาโปรโมชัน 36,180.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220BW, Function: NO, G, 1/2, 4 m³/h, EPDM 132U1501

นวัตกรรมการควบคุมของไหลที่เหนือกว่ากับโซลินอยด์วาล์ว Danfoss รหัส 132U1501 รุ่น EV220BW ทำงานด้วยระบบปกติเปิด (NO) ที่เอื้อให้ของเหลวไหลเวียนได้ตลอดเวลาและหยุดเมื่อสั่งการ พร้อมรองรับการใช้งานต่อเนื่อง ติดตั้งเข้ากับระบบได้ง่ายดายผ่านพอร์ต G 1/2 และขับเคลื่อนของเหลวในอัตรา 4 m³/h วัสดุประกอบภายในใช้ซีล EPDM ที่ผ่านการทดสอบว่ายืดหยุ่นและทนต่ออุณหภูมิได้ดีเยี่ยม การเลือกใช้ Danfoss จึงเป็นการลงทุนเพื่อยกระดับความเชื่อมั่นให้แพลนท์งานของคุณ

คุณสมบัติ

  • Solenoid Valve รหัส 132U1501 โมเดล EV220BW
  • การควบคุมสถานะ NO (ปกติเปิด)
  • ข้อต่อเกลียวในขนาด G 1/2
  • อัตราโฟลว์เรตระดับ 4 m³/h
  • วัสดุกันรั่วซึมแบบ EPDM มาตรฐานยุโรป

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV220BW
  • รูปแบบการทำงาน NO
  • การเชื่อมต่อ G 1/2
  • อัตราการไหล 4 m³/h
  • วัสดุซีล EPDM
Gross weight 0.718 Kilogram
Net weight 0.678 Kilogram
Volume 0.88 Liter
EAN 5702428508728
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval ACS
PZH
RISE
SINTEF
WRAS
Approval comments WRAS (0 – 70°C)
Body material Eco brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Eco brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
EPD available Yes
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 1/2 in
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 1/2 in
Packing format Multi pack
Parts Program name EV220BW 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220BW 15BE G 12E NO000
Type EV220BW
Type designation EV220BW 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ชื่อรุ่น (Model Name) EV220BW
  • ระบบวาล์ว (Control) NO (Normally Open)
  • ขนาดข้อต่อ (Fitting Size) G 1/2 นิ้ว
  • อัตราการไหลของไหล (Flow Rate) 4 m³/h
  • ส่วนประกอบซีล (Seal Component) EPDM
