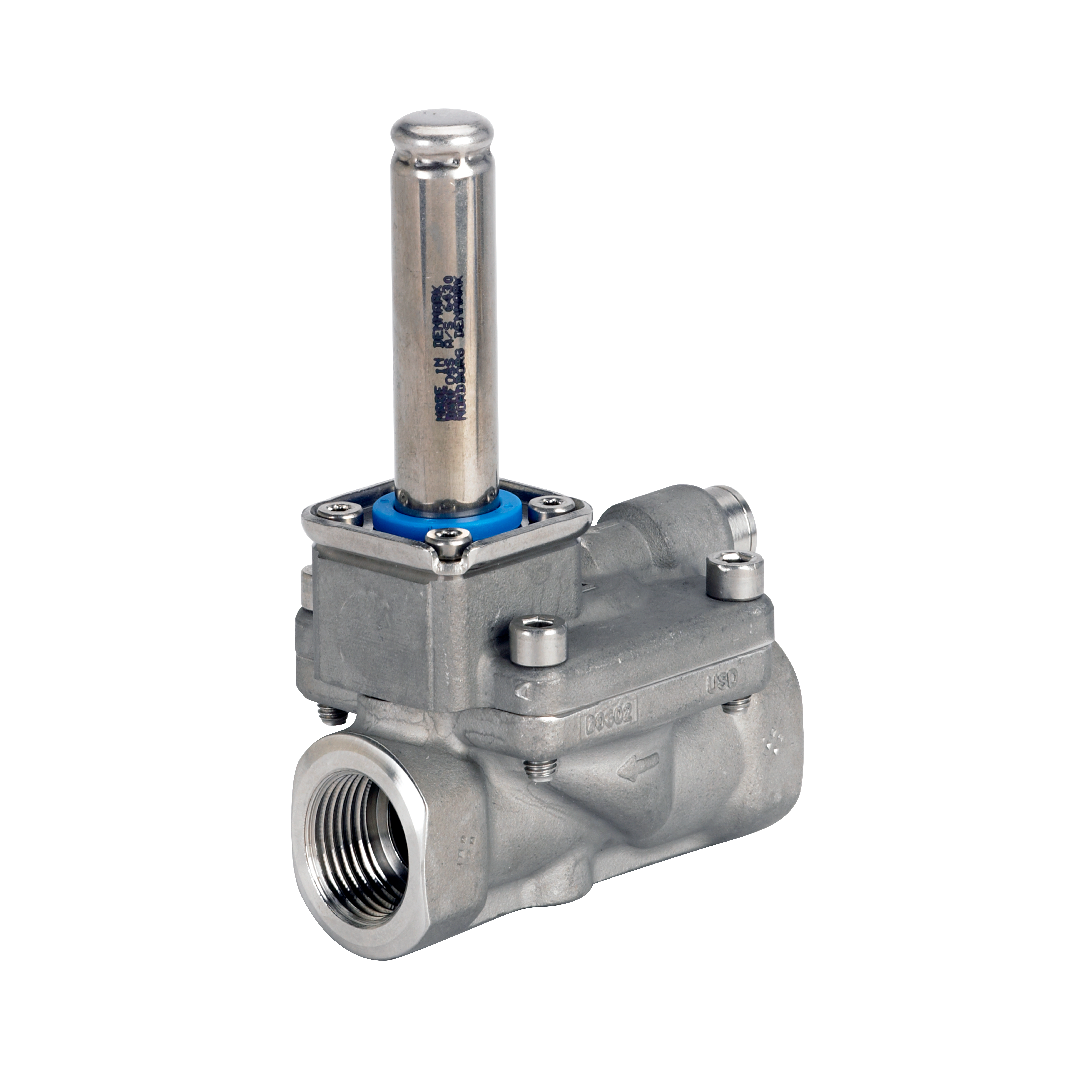

Danfoss Solenoid valve, EV220BW, Function: NC, G, 3/4, 8 m³/h, EPDM 132U2080

Danfoss Solenoid valve, EV220BW, Function: NC, G, 3/4, 8 m³/h, EPDM 132U2080

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 19,400.00 ฿
ราคาปกติ ราคาโปรโมชัน 19,400.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220BW, Function: NC, G, 3/4, 8 m³/h, EPDM 132U2080

ตอบโจทย์อุตสาหกรรมที่ต้องการมาตรฐานสูงสุดด้วยโซลินอยด์วาล์วอัจฉริยะ Danfoss EV220BW รหัส 132U2080 ฟังก์ชันการทำงานแบบปกติปิด (NC) จะช่วยบล็อกการไหลอัตโนมัติเมื่อไม่มีกระแสไฟ ยกระดับเซฟตี้มาตรฐาน รองรับเกลียวเชื่อมต่อขนาด G 3/4 และจัดการอัตราการไหลได้คงที่ระดับ 8 m³/h เสริมความมั่นใจด้วยวัสดุซีล EPDM ที่โดดเด่นเรื่องความทนทานต่อน้ำร้อนและสภาพอากาศ ป้องกันการรั่วซึมแบบไร้รอยต่อ อุปกรณ์ของ Danfoss รับประกันการลงทุนที่คืนทุนด้วยความทนทาน

คุณสมบัติ

  • วาล์วควบคุม EV220BW พาร์ทนัมเบอร์ 132U2080
  • รูปแบบสถานะ NC (ปกติปิด)
  • ขนาดพอร์ตเชื่อมต่อ G 3/4
  • อัตราการไหลเวียนสูงสุด 8 m³/h
  • ซีล EPDM แท้เพื่อความทนทาน

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV220BW
  • รูปแบบการทำงาน NC
  • การเชื่อมต่อ G 3/4
  • อัตราการไหล 8 m³/h
  • วัสดุซีล EPDM
Gross weight 1.181 Kilogram
Net weight 0.857 Kilogram
Volume 0.88 Liter
EAN 5702428527729
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval ACS
PZH
RISE
SINTEF
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 3/4 in
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220BW SS G 34E NC000
Type EV220BW
Type designation EV220BW 20
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • รุ่นสินค้า (Model) EV220BW
  • รูปแบบการทำงาน (Function) NC (Normally Closed)
  • ขนาดท่อและเกลียว (Connection) G 3/4 นิ้ว
  • ความจุอัตราการไหล (Flow) 8 m³/h
  • ประเภทวัสดุซีล (Seal) EPDM
