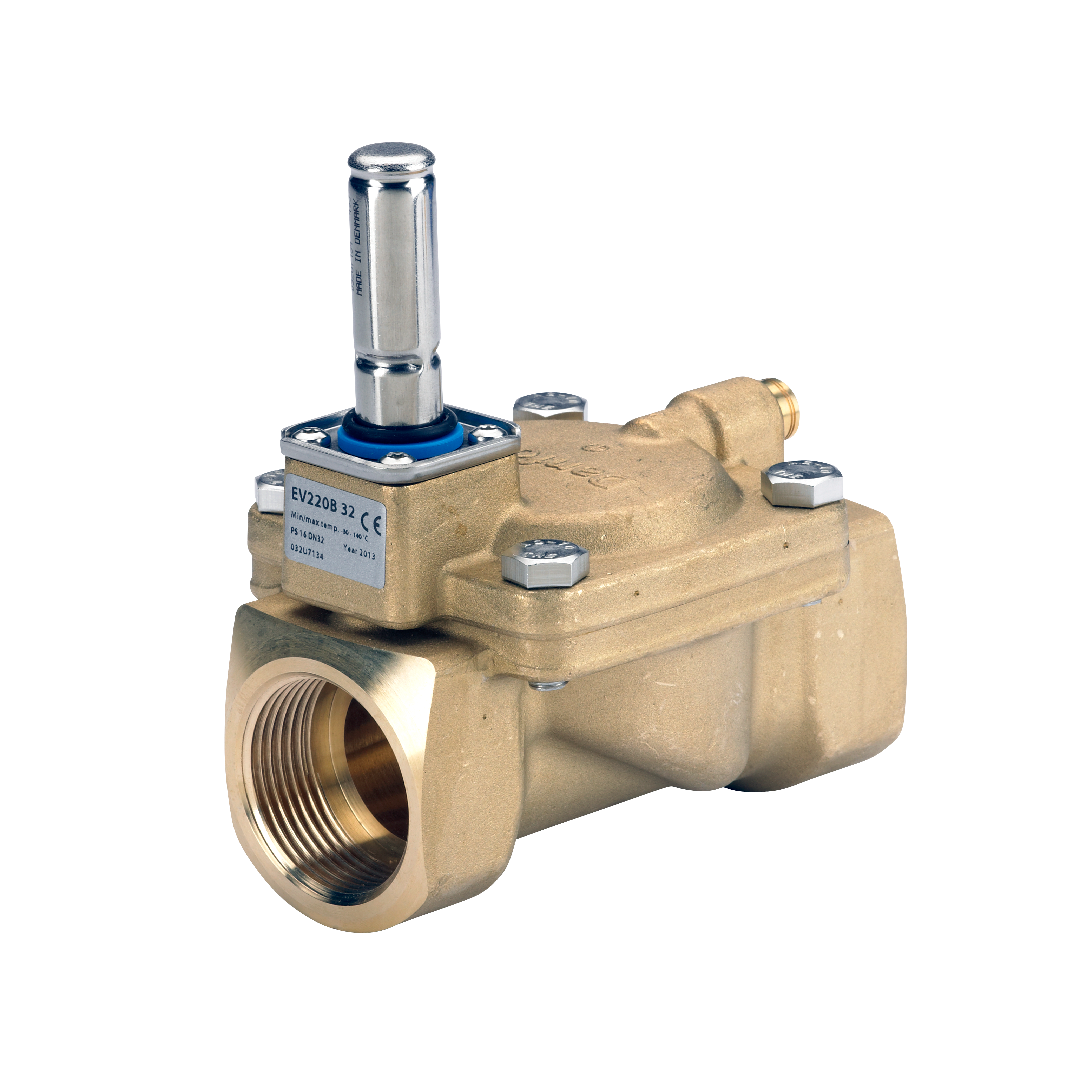

Danfoss Solenoid valve, EV220BW, Function: NC, G, 1 1/4, 18 m³/h, EPDM 132U3200

Danfoss Solenoid valve, EV220BW, Function: NC, G, 1 1/4, 18 m³/h, EPDM 132U3200

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 36,180.00 ฿
ราคาปกติ ราคาโปรโมชัน 36,180.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220BW, Function: NC, G, 1 1/4, 18 m³/h, EPDM 132U3200

Danfoss Solenoid valve รุ่น EV220BW รหัสสินค้า 132U3200 โซลินอยด์วาล์วตัดต่อสายน้ำแม่นยำสูง นวัตกรรมมาตรฐานระดับโลกจาก Danfoss ใช้จุดต่อเกลียว G ขนาด 1 1/4 นิ้ว อัตราการไหล 18 m³/h ภายในใช้วัสดุซีล EPDM มาตรฐานฟู้ดเกรด ปลอดภัย ไร้สารเคมีเจือปน ทำงานด้วยฟังก์ชันปิดปกติ (Normally Closed - NC) กั้นน้ำปิดสนิทเมื่อไร้กระแสไฟ เพื่อการควบคุมการจ่ายน้ำอย่างเป็นระบบ ตัววาล์วช่วยลดแรงค้อนของน้ำ (Water Hammer) ได้อย่างดีเยี่ยม ช่วยปกป้องอุปกรณ์ในระบบท่อ และมอบอายุการใช้งานที่ยาวนาน คุ้มค่าแก่การลงทุน

คุณสมบัติ

  • วาล์วควบคุมทิศทางของเหลว Danfoss EV220BW ตัดและจ่ายน้ำในโรงงานอุตสาหกรรมเครื่องดื่มได้อย่างรวดเร็ว
  • หัวเกลียวสำหรับต่อท่อแบบ G ขนาด 1 1/4 นิ้ว ทนแรงบิดและรับประกันรอยต่อที่แห้งสนิทปราศจากน้ำซึม
  • วงจรวาล์วแบบ NC รับรองอัตราการไหลที่ 18 m³/h โดยจะเปิดกลไกภายในก็ต่อเมื่อคำสั่งไฟฟ้าสมบูรณ์เท่านั้น
  • ความปลอดภัยทางอาหารได้รับการยืนยันด้วยลูกยาง EPDM เกรดพิเศษที่ปลอดสารตกค้างและทนความร้อนได้ดี
  • สินค้ารหัส 132U3200 คือชิ้นส่วนมาตรฐานที่ช่วยให้การบริหารจัดการน้ำในโรงงานเป็นไปตามแผนที่วางไว้

ข้อมูลจำเพาะ

  • แบรนด์และซีรีส์: โซลินอยด์วาล์ว Danfoss รุ่น EV220BW
  • รหัสสินค้า: 132U3200
  • สเปกการไหล: อัตราการไหล 18 m³/h ชนิดเกลียว G ขนาด 1 1/4 นิ้ว
  • สถานะวาล์ว: ปกติปิด (NC - Normally Closed)
  • ส่วนประกอบซีล: ซีล EPDM รองรับภาระงานต่อเนื่องในระบบจัดการน้ำ
Gross weight 2.213 Kilogram
Net weight 1.815 Kilogram
Volume 7.334 Liter
EAN 5715162488638
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Closed and Drain
Approval ACS
PZH
RISE
SINTEF
WRAS
Approval comments WRAS (0 – 85°C)
Body material Eco brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Eco brass
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 20.8 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
EPD available Yes
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Function NC
In scope of WEEE Yes
Inlet connection standard ISO 228-1
Inlet connection type G
Inlet Internal/External Internal
Inlet size [in] 1 1/4 in
Kv value [m³/h] 18 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Outlet connection standard ISO 228-1
Outlet connection type G
Outlet Internal/External Internal
Outlet size [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220BW 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220BW 32BE 114E NC000
Type EV220BW
Type designation EV220BW 32
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • โครงสร้างวาล์วซีรีส์ EV220BW ออกแบบมาเพื่อประสิทธิภาพการไหลสูง
  • ใช้วัสดุซีลยาง EPDM คุณภาพสูงช่วยยืดอายุการใช้งาน
  • อัตราการไหลพิกัด 18 ลูกบาศก์เมตรต่อชั่วโมง
  • ขนาดเกลียวท่อเชื่อมต่อ G 1 1/4 นิ้ว แบบการทำงานปกติปิด
  • รหัสสินค้า Danfoss 132U3200
