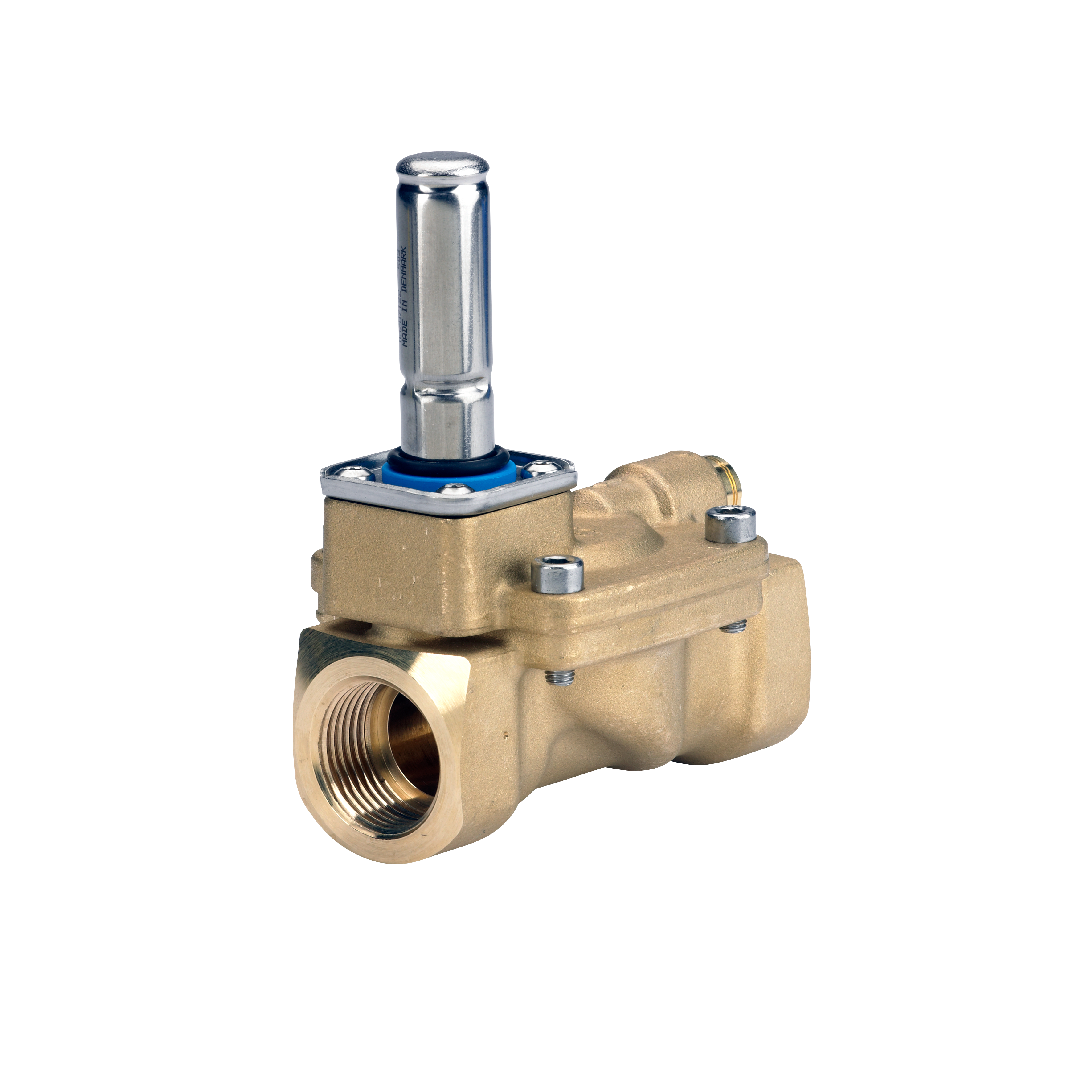

Danfoss Solenoid valve, EV220B, Function: NO, NPT, 3/4, 8 m³/h, EPDM 032U6545

Danfoss Solenoid valve, EV220B, Function: NO, NPT, 3/4, 8 m³/h, EPDM 032U6545

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 37,760.00 ฿
ราคาปกติ ราคาโปรโมชัน 37,760.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, NPT, 3/4, 8 m³/h, EPDM 032U6545

เพิ่มประสิทธิภาพระบบของคุณด้วย Danfoss EV220B รหัส 032U6545 โซลินอยด์วาล์วคุณภาพยุโรปที่ชูจุดเด่นด้านความปลอดภัยและความทนทาน ทำงานด้วยระบบ Normally Open (NO) ช่วยรักษาอัตราการไหลอย่างสม่ำเสมอในขณะที่ยังไม่ต้องการตัดวงจร บริหารปริมาณของไหลได้คล่องตัวถึง 8 m³/h พร้อมรูปแบบข้อต่อเกลียว NPT ขนาด 3/4 นิ้ว ช่วยให้การประกอบทำได้แนบสนิท ภายในเลือกใช้ซีล EPDM คุณภาพเยี่ยม ทนทานต่อน้ำร้อนและสภาพอากาศได้อย่างมีเสถียรภาพ ขับเคลื่อนกลไกแบบ Servo-operated ช่วยลดแรงสั่นสะเทือนของน้ำเมื่อมีการสั่งปิดวาล์วฉับพลัน

คุณสมบัติ

  • ผลิตภัณฑ์ควบคุมการไหลรุ่น EV220B ตอบสนองการทำงานได้อย่างแม่นยำ
  • สั่งการแบบ Normally Open (NO) จะปิดช่องทางเมื่อได้รับกระแสไฟฟ้า
  • รูปแบบเกลียว NPT ขนาด 3/4 นิ้ว รองรับการติดตั้งที่หลากหลาย
  • ประสิทธิภาพการระบายของไหล 8 ลูกบาศก์เมตรต่อชั่วโมง
  • ประกอบด้วยยาง EPDM ซึ่งมีความทนทานต่อสภาพแวดล้อมที่เป็นไอน้ำ

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6545
  • รุ่นและระบบการทำงาน: EV220B แบบ NO (Normally Open)
  • ประเภทและขนาดเกลียว: NPT 3/4 นิ้ว
  • อัตราการไหล: 8 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.958 Kilogram
Net weight 0.896 Kilogram
Volume 1.295 Liter
EAN 5702423031719
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
DNVGL-CG-0339
GL
cURus recognized
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 9.25 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 8 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 15.5 bar
Max. Working Pressure [psig] 225 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 20 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 20B N 34E NO000
Type EV220B
Type designation EV220B 20
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติเปิด (NO)
  • ประเภทและขนาดเกลียว: NPT 3/4 นิ้ว
  • อัตราการไหล (Kv): 8 m³/h
  • วัสดุซีล: EPDM
