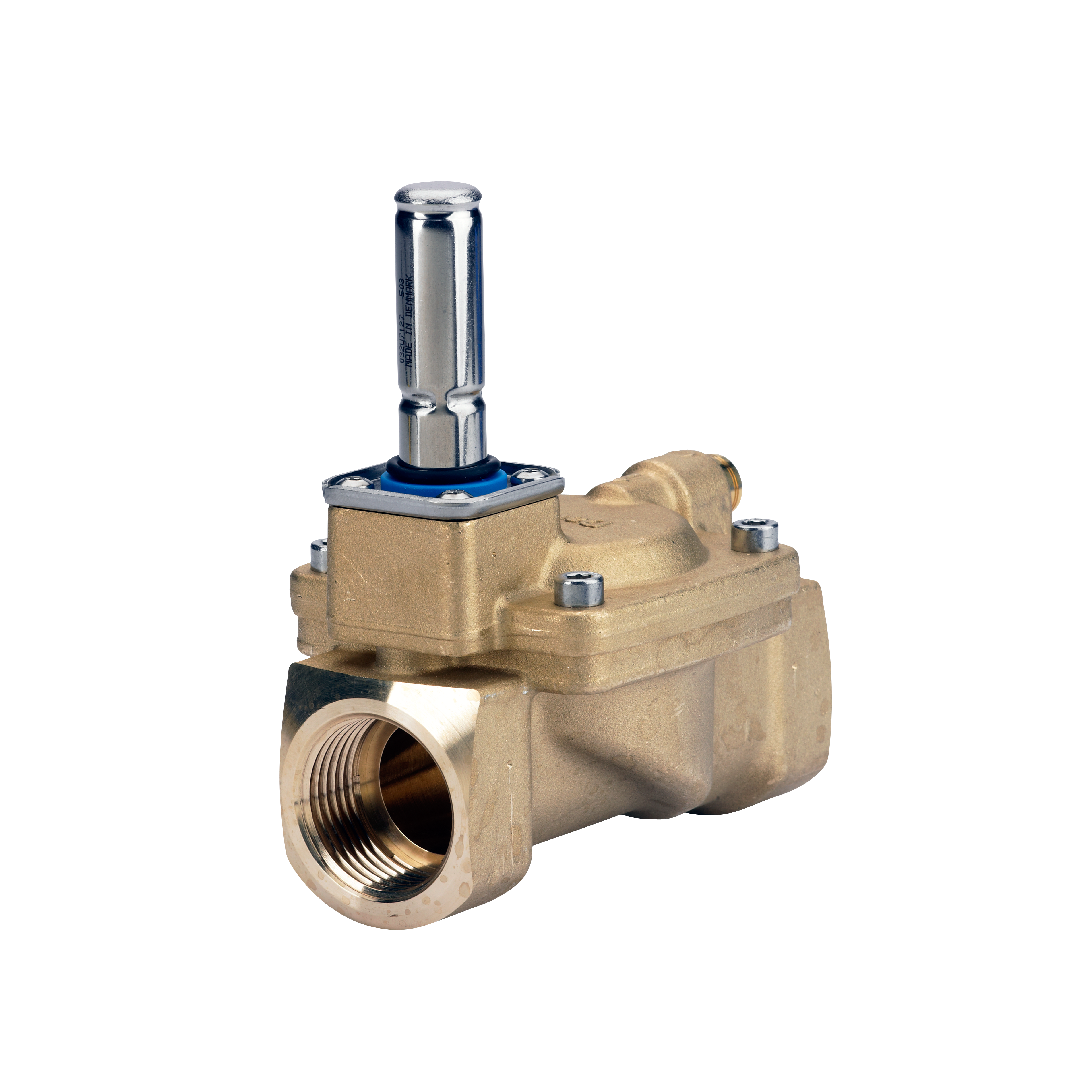

Danfoss Solenoid valve, EV220B, Function: NO, NPT, 1, 11 m³/h, EPDM 032U6546

Danfoss Solenoid valve, EV220B, Function: NO, NPT, 1, 11 m³/h, EPDM 032U6546

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 36,180.00 ฿
ราคาปกติ ราคาโปรโมชัน 36,180.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, NPT, 1, 11 m³/h, EPDM 032U6546

โซลินอยด์วาล์ว Danfoss รหัส 032U6546 ซีรีส์ EV220B อุปกรณ์ความแม่นยำสูงสำหรับควบคุมปริมาณการไหลในอุตสาหกรรมสมัยใหม่ ออกแบบด้วยฟังก์ชัน ปกติเปิด (Normally Open) เพื่ออำนวยความสะดวกในระบบไหลเวียนที่ต้องการให้เปิดทางน้ำไว้เป็นพื้นฐาน รองรับอัตราการไหล 11 m³/h พร้อมจุดเชื่อมต่อเกลียว NPT ขนาด 1 นิ้วที่ติดตั้งเข้ากับระบบท่ออเมริกันได้อย่างฟิตพอดี เลือกใช้วัสดุประเก็น EPDM ที่ต้านทานความร้อนและน้ำประปาได้อย่างมีประสิทธิภาพ เสริมด้วยกลไก Servo-operated ที่ช่วยปกป้องปั๊มและระบบท่อจากการกระชากของกระแสน้ำ

คุณสมบัติ

  • โซลินอยด์วาล์วซีรีส์ EV220B แข็งแรงทนทานตามมาตรฐานสากล
  • ระบบทำงานแบบปกติเปิด (NO) ยอมให้ของไหลผ่านได้อย่างต่อเนื่อง
  • พอร์ตเชื่อมต่อเกลียว NPT ขนาด 1 นิ้ว ขันเข้าท่อได้แน่นหนา
  • รองรับอัตราการไหลเวียนได้สูงสุด 11 m³/h
  • วัสดุซีลแบบ EPDM ทนความร้อนและใช้งานกับน้ำได้ดีเยี่ยม

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6546
  • รุ่นและระบบการทำงาน: EV220B แบบ NO (Normally Open)
  • ประเภทและขนาดเกลียว: NPT 1 นิ้ว
  • อัตราการไหล: 11 m³/h
  • วัสดุซีล: EPDM
Gross weight 1.446 Kilogram
Net weight 1.384 Kilogram
Volume 1.295 Liter
EAN 5702423031832
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
DNVGL-CG-0339
GL
cURus recognized
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 12.7 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 300 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 11 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 12.4 bar
Max. Working Pressure [psig] 180 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 25 mm
Orifice size fraction [in] 1 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 25B N 1E NO000
Type EV220B
Type designation EV220B 25
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติเปิด (NO)
  • ประเภทและขนาดเกลียว: NPT 1 นิ้ว
  • อัตราการไหล (Kv): 11 m³/h
  • วัสดุซีล: EPDM
