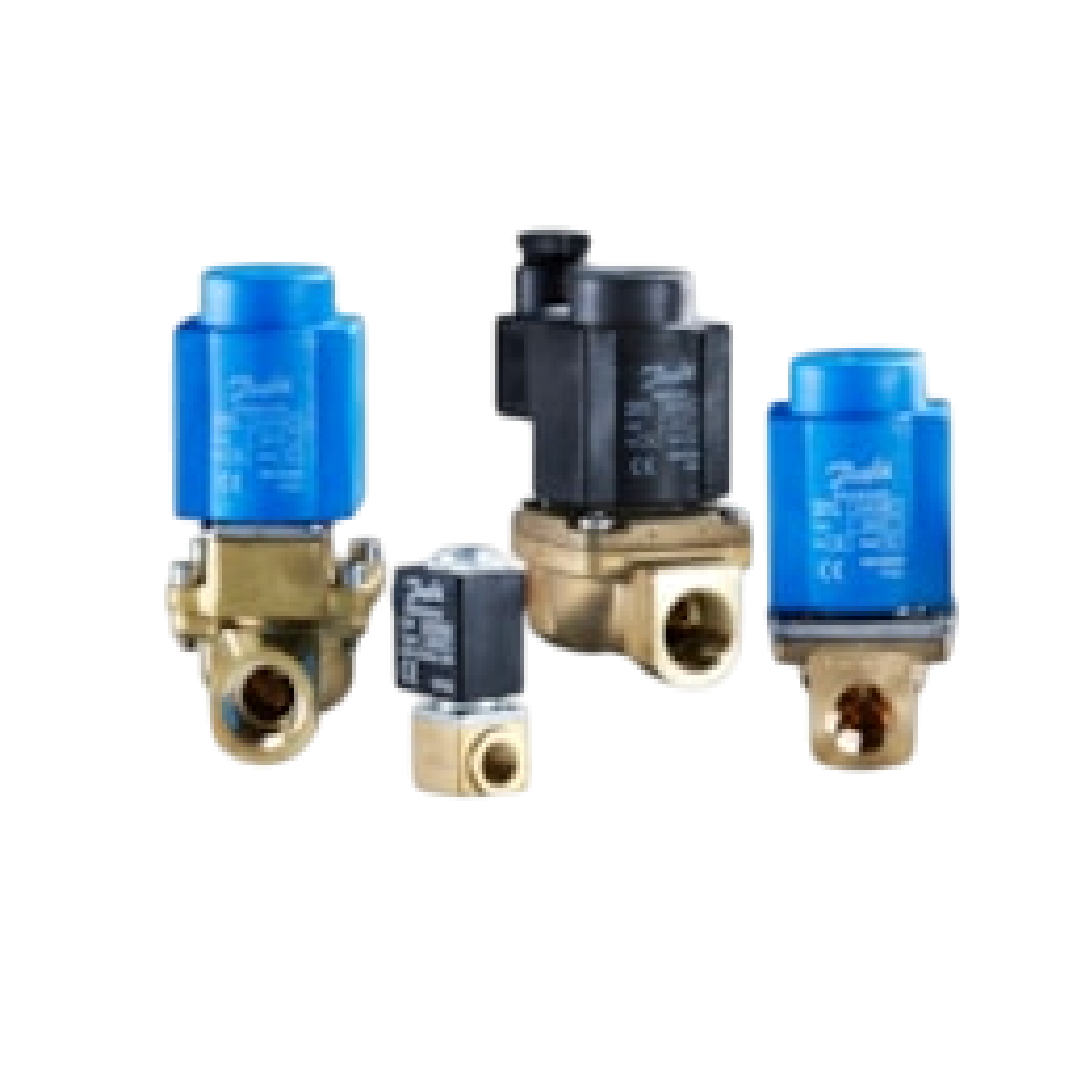

Danfoss Solenoid valve, EV220B, Function: NO, G, 1/2, 4 m³/h, NBR 032U709419

Danfoss Solenoid valve, EV220B, Function: NO, G, 1/2, 4 m³/h, NBR 032U709419

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 3,920.00 ฿
ราคาปกติ ราคาโปรโมชัน 3,920.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, G, 1/2, 4 m³/h, NBR 032U709419

วาล์วควบคุมทิศทาง Danfoss รหัส 032U709419 ซีรีส์ EV220B นวัตกรรมระดับโลกเพื่อการพาของไหลในภาคอุตสาหกรรม โดดเด่นด้วยการทำงานแบบ ปกติเปิด (NO) เปิดอิสระให้สารไหลเวียนได้ตลอดเมื่อไร้สัญญาณไฟ ตอบโจทย์ระบบที่เปิดแช่เพื่อลดภาระของคอยล์ รองรับโฟลว์เรตที่ 4 m³/h ผ่านพอร์ตเกลียวเชื่อมต่อ G ขนาด 1/2 นิ้ว รุ่นนี้พิเศษด้วยการเลือกใช้ซีล NBR ที่มีความยืดหยุ่นสูงและทนต่อการสึกหรอ เหมาะสำหรับระบบน้ำมันหล่อลื่น ลมประปา และของเหลวทั่วไป ผสานกลไก Servo-operated ช่วยเสริมสมรรถนะการต้านทานแรงดันในระบบท่อปิดได้อย่างมั่นใจ

คุณสมบัติ

  • ผลิตภัณฑ์ควบคุมการไหลรุ่น EV220B ตอบสนองการทำงานได้อย่างแม่นยำ
  • สั่งการแบบ Normally Open (NO) จะปิดช่องทางเมื่อได้รับกระแสไฟฟ้า
  • รูปแบบเกลียว G ขนาด 1/2 นิ้ว รองรับการติดตั้งที่หลากหลาย
  • ประสิทธิภาพการระบายของไหล 4 ลูกบาศก์เมตรต่อชั่วโมง
  • ประกอบด้วยยาง NBR ซึ่งมีความทนทานและคุ้มค่าในงานทั่วไป

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U709419
  • รุ่นและระบบการทำงาน: EV220B แบบ NO (Normally Open)
  • ประเภทและขนาดเกลียว: G 1/2 นิ้ว
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: NBR
Gross weight 0.981 Kilogram
Net weight 0.919 Kilogram
Volume 3.684 Liter
EAN 5702423194735
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval CE
DNVGL-CG-0339
EAC
UKCA
UL
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Coil type BB
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Spade DIN 43650-A
Enclosure rating IP IP00
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Frequency [Hz] 50/60 Hz
Function NO
In scope of WEEE Yes
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Water,Brine,Oil,Air
Media tolerance comments Neutral media
Water at max. 60°C/140 °F
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Power consumption [W] 50Hz 12 W
Power consumption [W] 60Hz 10.5 W
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV220B 15B G 12N NO000 BB024C
Supply voltage 50Hz Max [V] 24 V
Supply voltage 60Hz Max [V] 24 V
Type EV220B
Type designation EV220B 15
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติเปิด (NO)
  • ประเภทและขนาดเกลียว: G 1/2 นิ้ว
  • อัตราการไหล (Kv): 4 m³/h
  • วัสดุซีล: NBR
