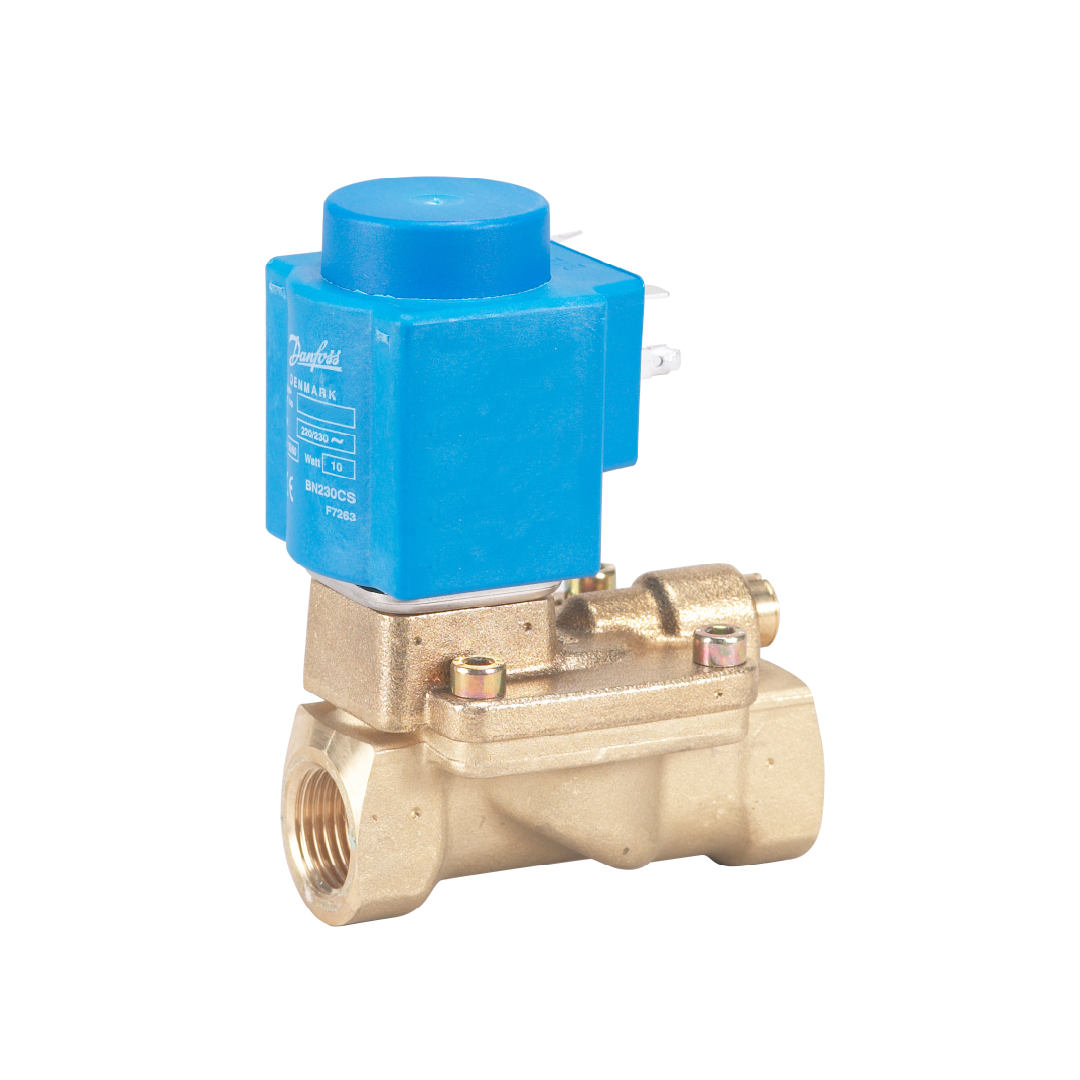

Danfoss Solenoid valve, EV220B, Function: NO, G, 1/2, 4 m³/h, EPDM 032U818402

Danfoss Solenoid valve, EV220B, Function: NO, G, 1/2, 4 m³/h, EPDM 032U818402

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 19,430.00 ฿
ราคาปกติ ราคาโปรโมชัน 19,430.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NO, G, 1/2, 4 m³/h, EPDM 032U818402

แตกต่างด้วยความพร้อมใช้งาน โซลินอยด์วาล์ว Danfoss รุ่น EV220B รหัส 032U818402 ถูกออกแบบด้วยฟังก์ชันพิเศษระบบปกติเปิด (NO) ทำให้ของไหลผ่านได้ตลอดเมื่อไม่มีไฟฟ้า เชื่อมต่อผ่านเกลียว G ขนาด 1/2 นิ้ว รองรับอัตราการไหล 4 m³/h ป้องกันการรั่วซึมด้วยซีล EPDM คุณภาพสูงที่ทนน้ำและไอน้ำ Danfoss พัฒนานวัตกรรมเพื่อตอบโจทย์ความต้องการเฉพาะทางอย่างแท้จริง มอบความปลอดภัยและความสะดวกในการปรับใช้กับทุกระบบ

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220B
  • ฟังก์ชันการทำงานรูปแบบ NO
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 1/2 นิ้ว
  • ความสามารถรองรับอัตราการไหล 4 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220B
  • รูปแบบการทำงาน: NO
  • จุดเชื่อมต่อ: G 1/2
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.937 Kilogram
Net weight 0.875 Kilogram
Volume 3.684 Liter
EAN 5702423217069
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 40 °C
Ambient temperature max. [°F] 104 °F
Application Open
Approval CE
DNVGL-CG-0339
GL
PZH
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Coil type BA
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Electrical connection Spade DIN 43650-A
Enclosure rating IP IP65
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
In scope of WEEE Yes
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Max. Working Pressure note Liquids: max 10 bar/145 psi
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Power consumption [W] DC 14 W
Product accessories Solenoid coil accessories
Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. e1e8e346-d9ba-4293-882a-99c4f592144c
SCIP dossier product name EV220B 15-50 brass NO - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 15B G 12E NO000 BA024D
Supply voltage [V] DC 24 V
Supply voltage [V] DC 24 V
Type EV220B
Type designation EV220B 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U818402)
  • สถานะการทำงาน (Function) NO
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1/2 นิ้ว
  • ปริมาณการไหล (Kv) 4 m³/h
  • วัสดุซีล EPDM
