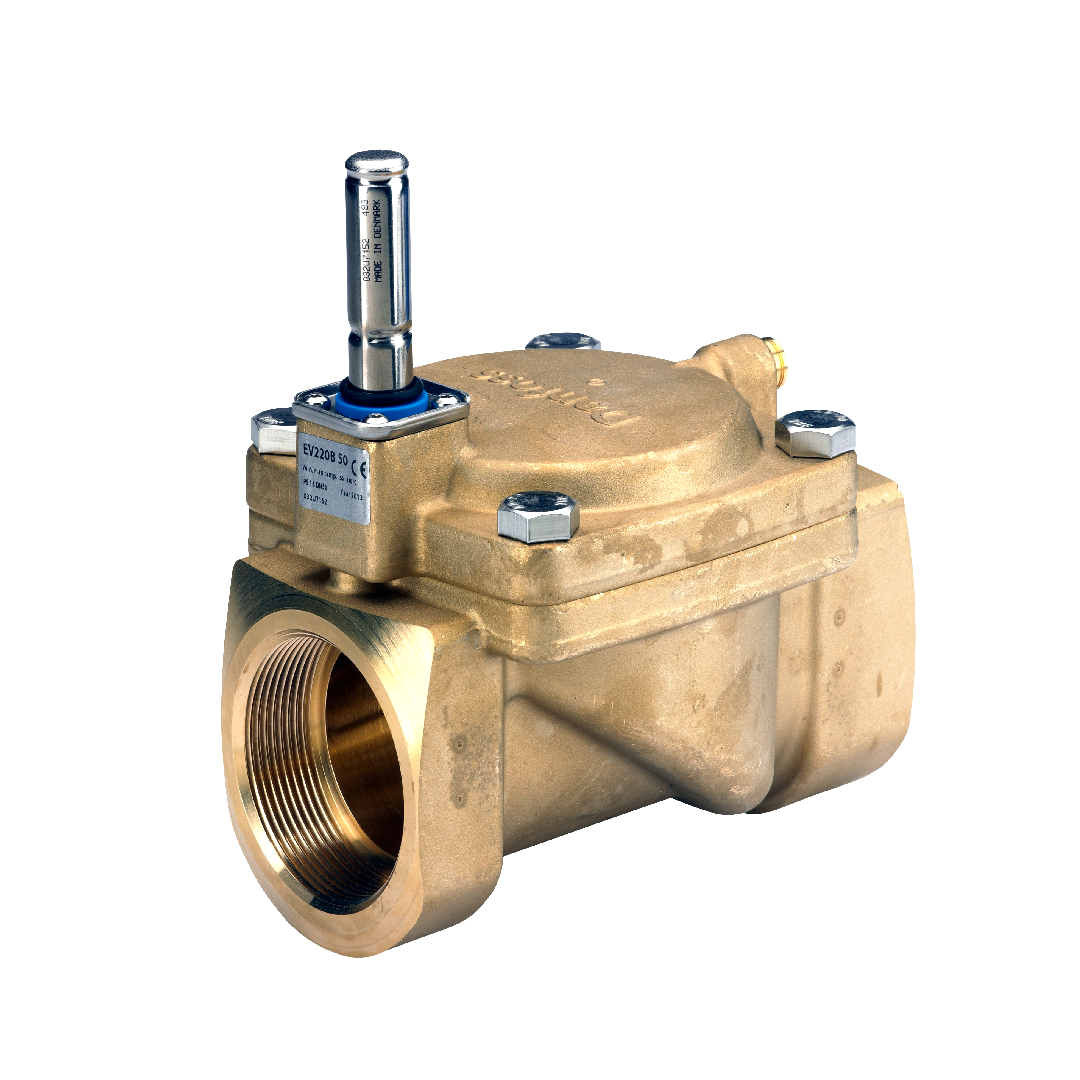

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 2, 40 m³/h, EPDM 032U6537

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 2, 40 m³/h, EPDM 032U6537

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 24,510.00 ฿
ราคาปกติ ราคาโปรโมชัน 24,510.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 2, 40 m³/h, EPDM 032U6537

โซลินอยด์วาล์ว Danfoss รหัส 032U6537 รุ่น EV220B โซลูชันที่แข็งแกร่งเพื่อการควบคุมระบบน้ำระดับอุตสาหกรรม ขับเคลื่อนด้วยระบบ Normally Closed (NC) ทำหน้าที่สกัดกั้นของไหลอย่างเฉียบขาดเมื่อกระแสไฟฟ้าถูกตัด ช่วยป้องกันระบบล้นหรือรั่วไหล บริหารปริมาณของไหลได้คล่องตัวและทรงพลังถึง 40 m³/h พร้อมรูปแบบข้อต่อเกลียว NPT ขนาด 2 นิ้วที่แข็งแรงทนทาน ใช้วัสดุซีล EPDM ที่ทนต่ออุณหภูมิน้ำร้อนและสภาพแวดล้อมได้ดีเยี่ยม ผสานกลไก Servo-operated ช่วยรับแรงดันสูงและซับแรงกระแทกของน้ำเพื่อรักษามาตรฐานความปลอดภัยสูงสุด

คุณสมบัติ

  • ผลิตภัณฑ์ควบคุมการไหลรุ่น EV220B ตอบสนองการทำงานได้อย่างแม่นยำ
  • สั่งการแบบ Normally Closed (NC) จะเปิดช่องทางเมื่อได้รับกระแสไฟฟ้า
  • รูปแบบเกลียว NPT ขนาด 2 นิ้ว รองรับการติดตั้งที่หลากหลาย
  • ประสิทธิภาพการระบายของไหล 40 ลูกบาศก์เมตรต่อชั่วโมง
  • ประกอบด้วยยาง EPDM ซึ่งมีความทนทานต่อสภาพแวดล้อมที่เป็นไอน้ำ

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6537
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 2 นิ้ว
  • อัตราการไหล: 40 m³/h
  • วัสดุซีล: EPDM
Gross weight 5.173 Kilogram
Net weight 4.762 Kilogram
Volume 7.334 Liter
EAN 5702423031900
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval CE
PED
UKCA
Body material DZR brass
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material DZR brass
Connection size [in] 2
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 46.2 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10000 ms
Est. time to open, water [ms] 5000 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 40 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 12.4 bar
Max. Working Pressure [psig] 180 psig
Media recommendations Technical & Soft Water
Media tolerance comments Slightly aggressive media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 50 mm
Orifice size fraction [in] 2 in
Packing format Single pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 50BD N 2E NC000
Type EV220B
Type designation EV220B 50
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 2 นิ้ว
  • อัตราการไหล (Kv): 40 m³/h
  • วัสดุซีล: EPDM
