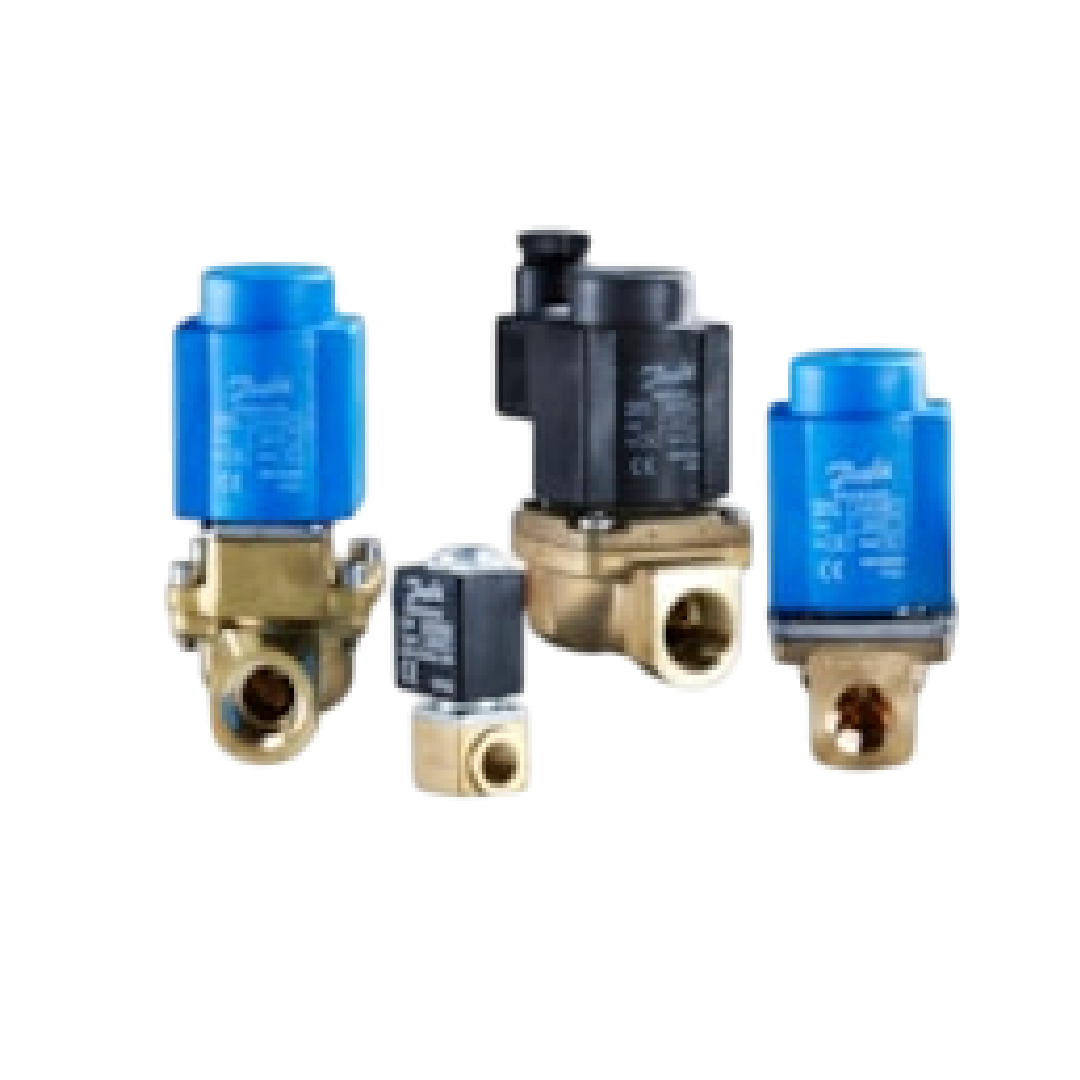

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1, 6 m³/h, EPDM 032U6525

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1, 6 m³/h, EPDM 032U6525

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 3,920.00 ฿
ราคาปกติ ราคาโปรโมชัน 3,920.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1, 6 m³/h, EPDM 032U6525

เพิ่มความปลอดภัยให้กระบวนการผลิตด้วย Danfoss EV220B รหัส 032U6525 โซลินอยด์วาล์วมาตรฐานยุโรปที่วิศวกรไว้วางใจ มีฟังก์ชันการทำงานแบบ ปกติปิด (NC) ซึ่งช่วยสกัดกั้นการไหลทันทีในกรณีที่ไฟฟ้าขัดข้อง เพื่อให้ระบบโดยรวมมีความปลอดภัย ตัวอุปกรณ์มาพร้อมเกลียวเชื่อมต่อ NPT ขนาด 1 นิ้ว รองรับอัตราการไหลได้อย่างเต็มประสิทธิภาพที่ 6 m³/h ใช้วัสดุซีล EPDM คุณภาพสูงที่ทนต่อน้ำ ไอน้ำ และความร้อนสะสมได้อย่างดีเยี่ยม ผสานเทคโนโลยี Servo-operated ช่วยรับแรงดันสูงและบรรเทาแรงกระแทกของน้ำที่อาจทำร้ายข้อต่อท่อในระบบ

คุณสมบัติ

  • โซลินอยด์วาล์วซีรีส์ EV220B แข็งแรงทนทานตามมาตรฐานสากล
  • ระบบทำงานแบบปกติปิด (NC) ตัดการไหลของระบบได้อย่างปลอดภัยเมื่อไร้ไฟ
  • พอร์ตเชื่อมต่อเกลียว NPT ขนาด 1 นิ้ว ขันเข้าท่อได้แน่นหนา
  • รองรับอัตราการไหลเวียนได้สูงสุด 6 m³/h
  • วัสดุซีลแบบ EPDM ทนความร้อนและใช้งานกับน้ำได้ดีเยี่ยม

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6525
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 1 นิ้ว
  • อัตราการไหล: 6 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.992 Kilogram
Net weight 0.954 Kilogram
Volume 1.295 Liter
EAN 5702423031450
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
cURus recognized
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 6.95 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 6 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 16 bar
Max. test pressure [psig] 232 psig
Max. Working Pressure [bar] 9.8 bar
Max. Working Pressure [psig] 142 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 22 mm
Orifice size fraction [in] 7/8 in
Packing format Multi pack
Parts Program name EV220B 6 - 22
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product name EV220B 6-22 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 22B N 1E NC000
Type EV220B
Type designation EV220B 22
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 1 นิ้ว
  • อัตราการไหล (Kv): 6 m³/h
  • วัสดุซีล: EPDM
