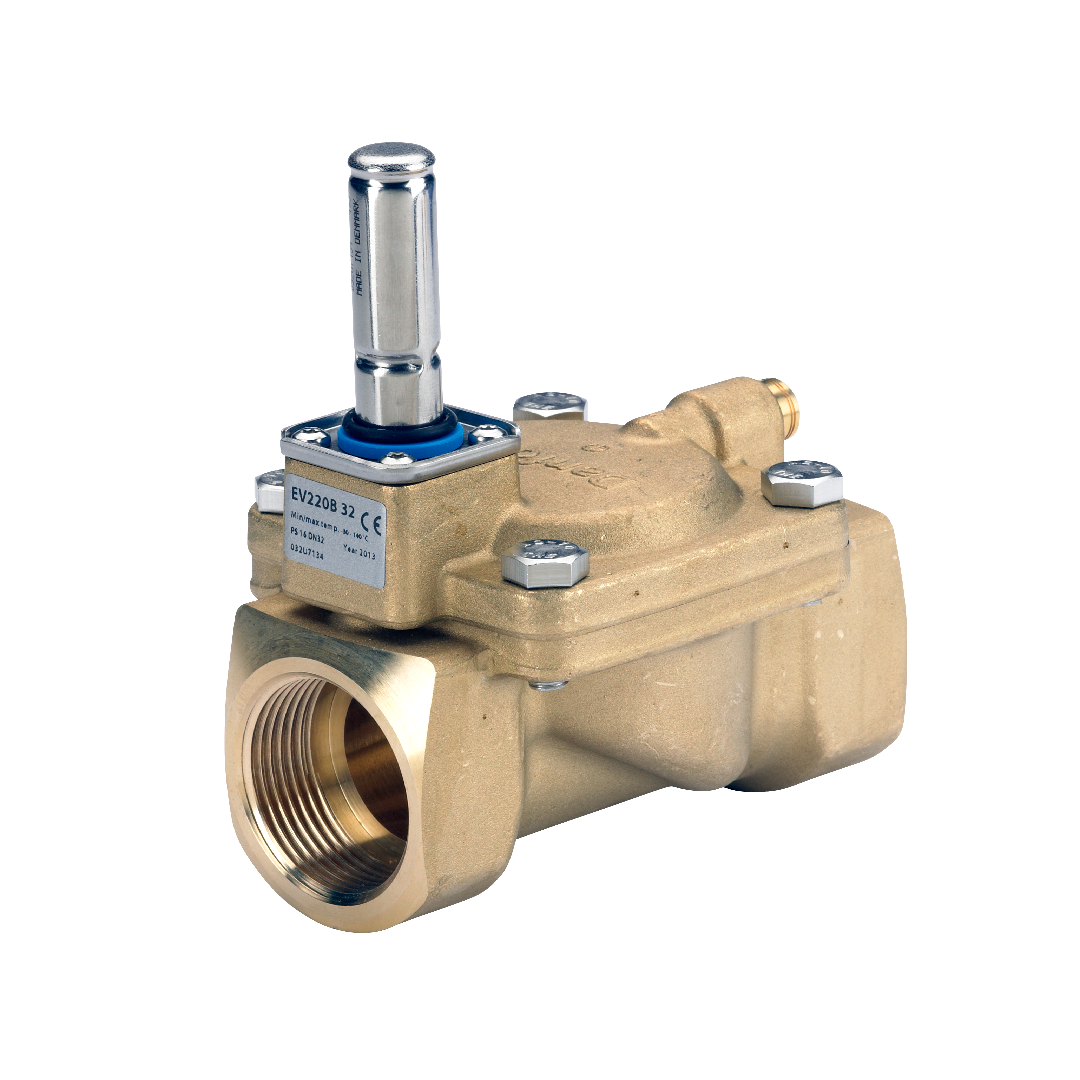

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U6535

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U6535

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 15,130.00 ฿
ราคาปกติ ราคาโปรโมชัน 15,130.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/4, 18 m³/h, EPDM 032U6535

เพิ่มศักยภาพระบบการผลิตด้วย Danfoss EV220B รหัส 032U6535 โซลินอยด์วาล์วคุณภาพระดับโลกที่ถูกสร้างมาเพื่องานหนัก มีฟังก์ชันการทำงานแบบ ปกติปิด (NC) ซึ่งช่วยตัดการไหลทันทีในกรณีที่ไฟฟ้าขัดข้องหรือหยุดเครื่องจักร ตัวอุปกรณ์มาพร้อมข้อต่อเกลียว NPT ขนาด 1 1/4 นิ้ว รองรับอัตราการไหลได้อย่างมีประสิทธิภาพที่ 18 m³/h เลือกใช้ประเก็นซีล EPDM ภายในที่โดดเด่นเรื่องการทนต่อน้ำร้อนและลดปัญหาซีลกรอบตัวก่อนเวลาอันควร กลไก Servo-operated ชั้นยอดของ Danfoss ช่วยสลายแรงกระแทกทางน้ำ ลดปัญหาท่อสั่นหรือมีเสียงดังรบกวน

คุณสมบัติ

  • โซลินอยด์วาล์วซีรีส์ EV220B แข็งแรงทนทานตามมาตรฐานสากล
  • ระบบทำงานแบบปกติปิด (NC) ตัดการไหลของระบบได้อย่างปลอดภัยเมื่อไร้ไฟ
  • พอร์ตเชื่อมต่อเกลียว NPT ขนาด 1 1/4 นิ้ว ขันเข้าท่อได้แน่นหนา
  • รองรับอัตราการไหลเวียนได้สูงสุด 18 m³/h
  • วัสดุซีลแบบ EPDM ทนความร้อนและใช้งานกับน้ำได้ดีเยี่ยม

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U6535
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: NPT 1 1/4 นิ้ว
  • อัตราการไหล: 18 m³/h
  • วัสดุซีล: EPDM
Gross weight 2.338 Kilogram
Net weight 1.991 Kilogram
Volume 7.334 Liter
EAN 5702423031528
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Application Open
Approval C UL US LISTED
CE
DNVGL-CG-0339
GL
UKCA
cURus recognized
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/4
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 20.8 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 2500 ms
Est. time to open, water [ms] 1000 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 18 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 12.4 bar
Max. Working Pressure [psig] 180 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 32B N 114E NC000
Type EV220B
Type designation EV220B 32
UK RoHS compliance Out of scope
UL evaluated Yes

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: NPT 1 1/4 นิ้ว
  • อัตราการไหล (Kv): 18 m³/h
  • วัสดุซีล: EPDM
