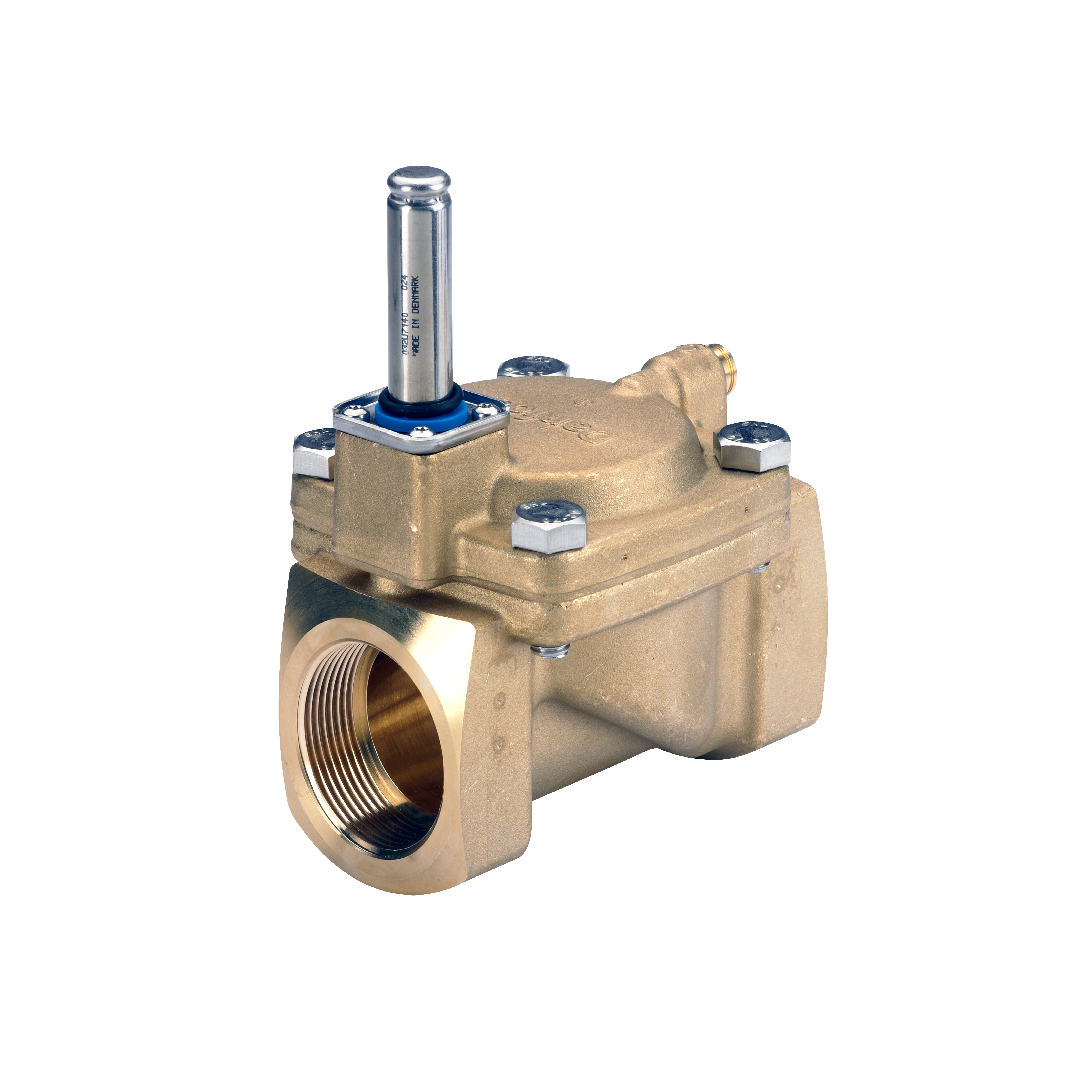

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, FKM 032U7542

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, FKM 032U7542

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 19,430.00 ฿
ราคาปกติ ราคาโปรโมชัน 19,430.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, FKM 032U7542

Danfoss Solenoid valve, EV220B, Function: NC, NPT, 1 1/2, 24 m³/h, FKM 032U7542: โซลินอยด์วาล์วควบคุมการไหลประสิทธิภาพสูงจาก Danfoss แบรนด์ชั้นนำในงานวิศวกรรมของไหล รุ่น EV220B ฟังก์ชันปกติปิด (NC) ขนาดเกลียว NPT 1 1/2 นิ้ว อัตราการไหลสูง 24 m³/h ติดตั้งซีล FKM คุณภาพเยี่ยม ทนต่อความร้อน อากาศอัดที่ผสมน้ำมัน และสารเคมีได้ดี ตัวเรือนสร้างจากวัสดุคุณภาพสูง ทนต่อแรงดันและสภาพแวดล้อมทำงานหนัก ช่วยให้ระบบทำงานได้อย่างต่อเนื่องไม่มีสะดุด มอบความคุ้มค่าและยืดอายุการใช้งานของระบบควบคุมในโรงงานอุตสาหกรรม

คุณสมบัติ

  • โซลินอยด์วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV220B
  • ออกแบบให้มีระบบการทำงานแบบปกติปิด (NC)
  • จุดเชื่อมต่อท่อขนาด 1 1/2 นิ้ว ชนิดเกลียว NPT
  • ความสามารถในการรองรับอัตราการไหล 24 m³/h
  • ชิ้นส่วนซีลภายในผลิตจากวัสดุ FKM

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7542 (รุ่น EV220B)
  • รูปแบบการทำงาน: ปกติปิด (NC)
  • การเชื่อมต่อ: เกลียว NPT ขนาด 1 1/2 นิ้ว
  • อัตราการไหล: 24 m³/h
  • วัสดุซีล: FKM
Gross weight 3.462 Kilogram
Net weight 2.991 Kilogram
Volume 7.334 Liter
EAN 5702423044467
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval CE
DNVGL-CG-0339
PED
UKCA
Body material Brass
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/2
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 27.7 gal/min
Differential pressure [bar] [max] 9.791 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 142 psi
Differential pressure [psi] [min] 4.351 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 4000 ms
Est. time to open, water [ms] 1500 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 24 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 20 bar
Max. test pressure [psig] 290 psig
Max. Working Pressure [bar] 12.4 bar
Max. Working Pressure [psig] 180 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Water at max. 60°C/140 °F
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 40 mm
Orifice size fraction [in] 1 1/2 in
Packing format Single pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
SCIP dossier product name EV220B 15-50 brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220B 40B N 112F NC000
Type EV220B
Type designation EV220B 40
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U7542)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว NPT ขนาด 1 1/2 นิ้ว
  • ปริมาณการไหล (Kv) 24 m³/h
  • วัสดุซีล FKM
