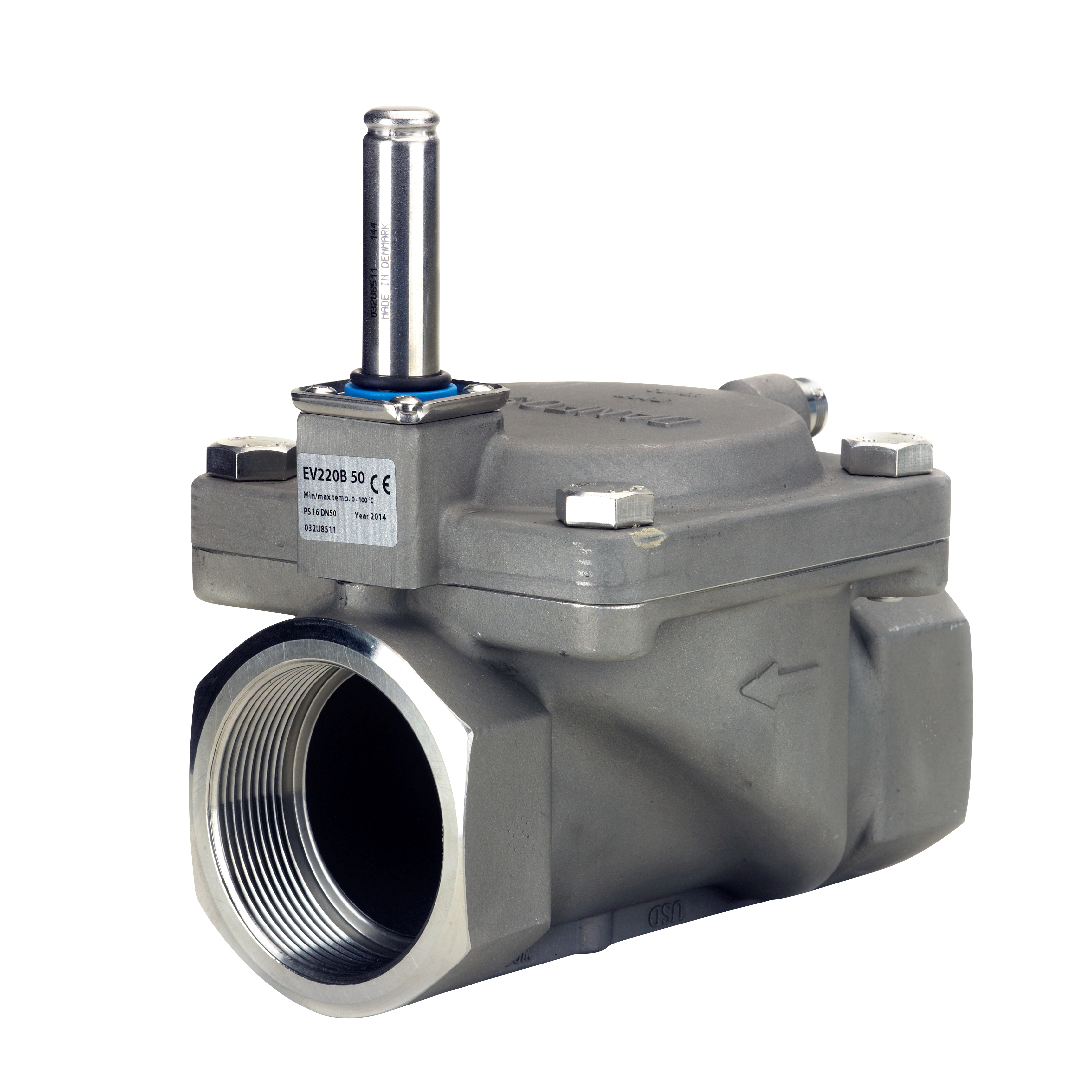

Danfoss Solenoid valve, EV220B, Function: NC, G, 2, 40 m³/h, EPDM 032U8505

Danfoss Solenoid valve, EV220B, Function: NC, G, 2, 40 m³/h, EPDM 032U8505

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 19,420.00 ฿
ราคาปกติ ราคาโปรโมชัน 19,420.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 2, 40 m³/h, EPDM 032U8505

Danfoss มอบสเกลการควบคุมที่ไร้ขีดจำกัดผ่านโซลินอยด์วาล์วรุ่น EV220B รหัส 032U8505 ฟังก์ชันการทำงานแบบปกติปิด (NC) ด้วยเกลียว G ขนาดใหญ่ 2 นิ้ว ที่รองรับอัตราการไหลระดับมหาศาล 40 m³/h โดดเด่นเหนือใครด้วยการใช้ซีล EPDM ที่ยอดเยี่ยมในการจัดการกับน้ำและไอน้ำอย่างมีเสถียรภาพ นวัตกรรมจาก Danfoss ช่วยมอบพลังควบคุมที่เที่ยงตรงพร้อมกับอายุการใช้งานที่ทนทานในทุกสภาวะอุตสาหกรรม

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220B
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 2 นิ้ว
  • ความสามารถรองรับอัตราการไหล 40 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220B
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 2
  • อัตราการไหล: 40 m³/h
  • วัสดุซีล: EPDM
Gross weight 4.408 Kilogram
Net weight 4.003 Kilogram
Volume 7.334 Liter
EAN 5702423124374
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval CE
PZH
UKCA
Body material Stainless steel
CE evaluated Yes
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 46.2 gal/min
Differential pressure [bar] [max] 12 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 174 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 10000 ms
Est. time to open, water [ms] 5000 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 40 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 18 bar
Max. test pressure [psig] 261 psig
Max. Working Pressure [bar] 12 bar
Max. Working Pressure [psig] 174 psig
Media recommendations Technical & Soft Water
Media tolerance comments Aggressive media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 50 mm
Orifice size fraction [in] 2 in
Packing format Single pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 1 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 50SS G 2E NC000
Type EV220B
Type designation EV220B 50
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U8505)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 2 นิ้ว
  • ปริมาณการไหล (Kv) 40 m³/h
  • วัสดุซีล EPDM
