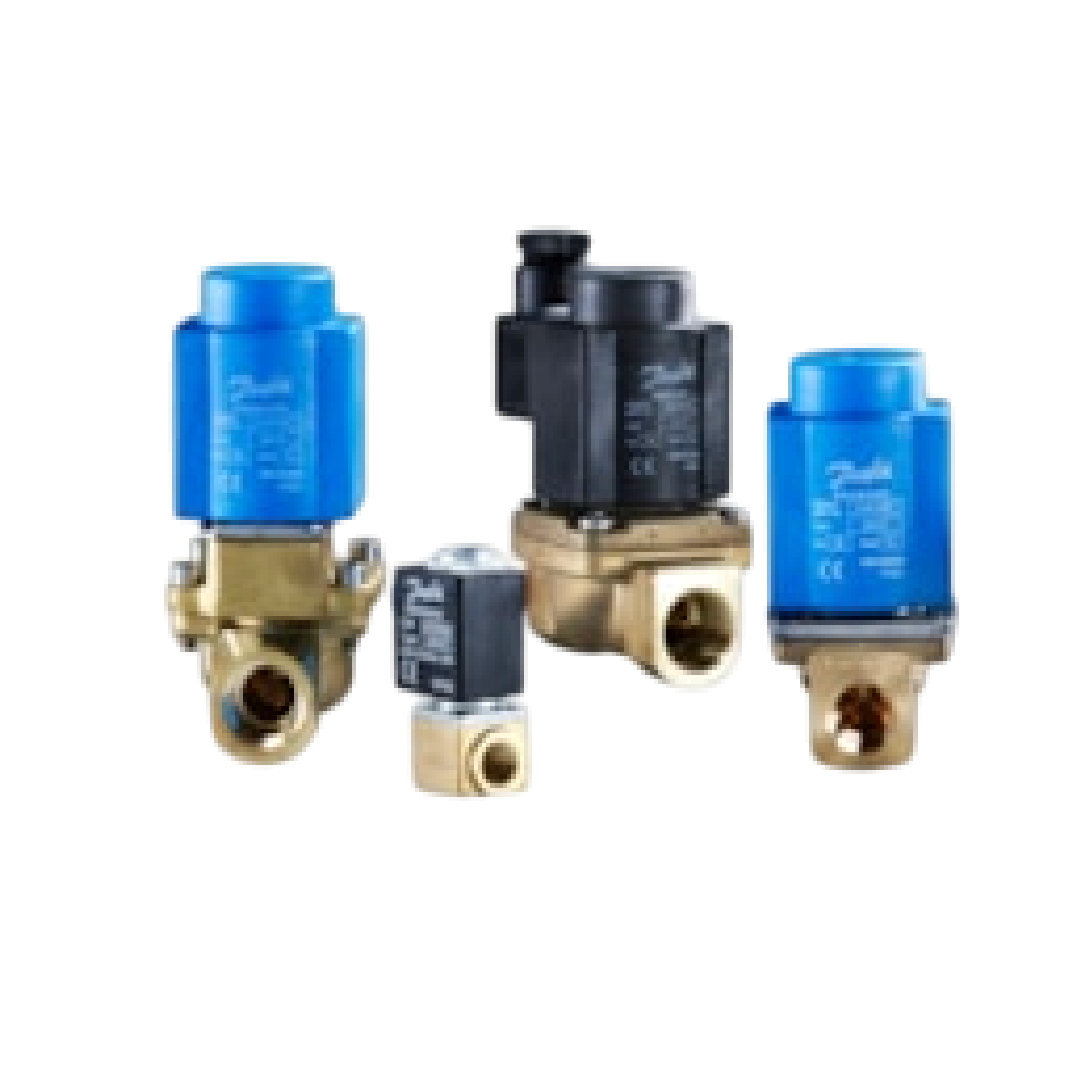

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, FKM 032U7116

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, FKM 032U7116

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 13,500.00 ฿
ราคาปกติ ราคาโปรโมชัน 13,500.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, FKM 032U7116

วาล์วแม่เหล็กไฟฟ้า Danfoss รหัสสินค้า 032U7116 ซีรีส์ EV220B ทางเลือกอันชาญฉลาดสำหรับระบบอัตโนมัติที่ต้องการความปลอดภัย มีฟังก์ชันการทำงานแบบ ปกติปิด (NC) ซึ่งช่วยตัดการไหลทันทีในกรณีที่ไฟฟ้าขัดข้อง เพื่อให้ระบบโดยรวมมีความปลอดภัยสูงสุด ตัวอุปกรณ์ติดตั้งง่ายด้วยรูปแบบเกลียว G ขนาด 1/2 นิ้ว รองรับอัตราการไหลที่ 4 ลูกบาศก์เมตรต่อชั่วโมง ภายในเลือกใช้ประเก็นซีล FKM ที่แข็งแกร่งต่อน้ำมันและสารเคมี ป้องกันการกัดกร่อนได้อย่างทรงประสิทธิภาพ เสริมการทำงานด้วยกลไก Servo-operated ทำให้วาล์วสามารถรับมือกับงานหนักและแรงดันสูงได้อย่างไร้รอยต่อ

คุณสมบัติ

  • ผลิตภัณฑ์ควบคุมการไหลรุ่น EV220B ตอบสนองการทำงานได้อย่างแม่นยำ
  • สั่งการแบบ Normally Closed (NC) จะเปิดช่องทางเมื่อได้รับกระแสไฟฟ้า
  • รูปแบบเกลียว G ขนาด 1/2 นิ้ว รองรับการติดตั้งที่หลากหลาย
  • ประสิทธิภาพการระบายของไหล 4 ลูกบาศก์เมตรต่อชั่วโมง
  • ประกอบด้วยยาง FKM รองรับการใช้งานที่ต้องสัมผัสสารเคมีบางชนิด

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7116
  • รุ่นและระบบการทำงาน: EV220B แบบ NC (Normally Closed)
  • ประเภทและขนาดเกลียว: G 1/2 นิ้ว
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: FKM
Gross weight 0.73 Kilogram
Net weight 0.688 Kilogram
Volume 0.88 Liter
EAN 5702423017133
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Water at max. 60°C/140 °F
Medium temperature range [°C] [max] 100 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 212 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
SCIP dossier product name EV220B 15-50 brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220B 15B G 12F NC000
Type EV220B
Type designation EV220B 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์โมเดล: EV220B
  • สถานะการทำงาน: ปกติปิด (NC)
  • ประเภทและขนาดเกลียว: G 1/2 นิ้ว
  • อัตราการไหล (Kv): 4 m³/h
  • วัสดุซีล: FKM
