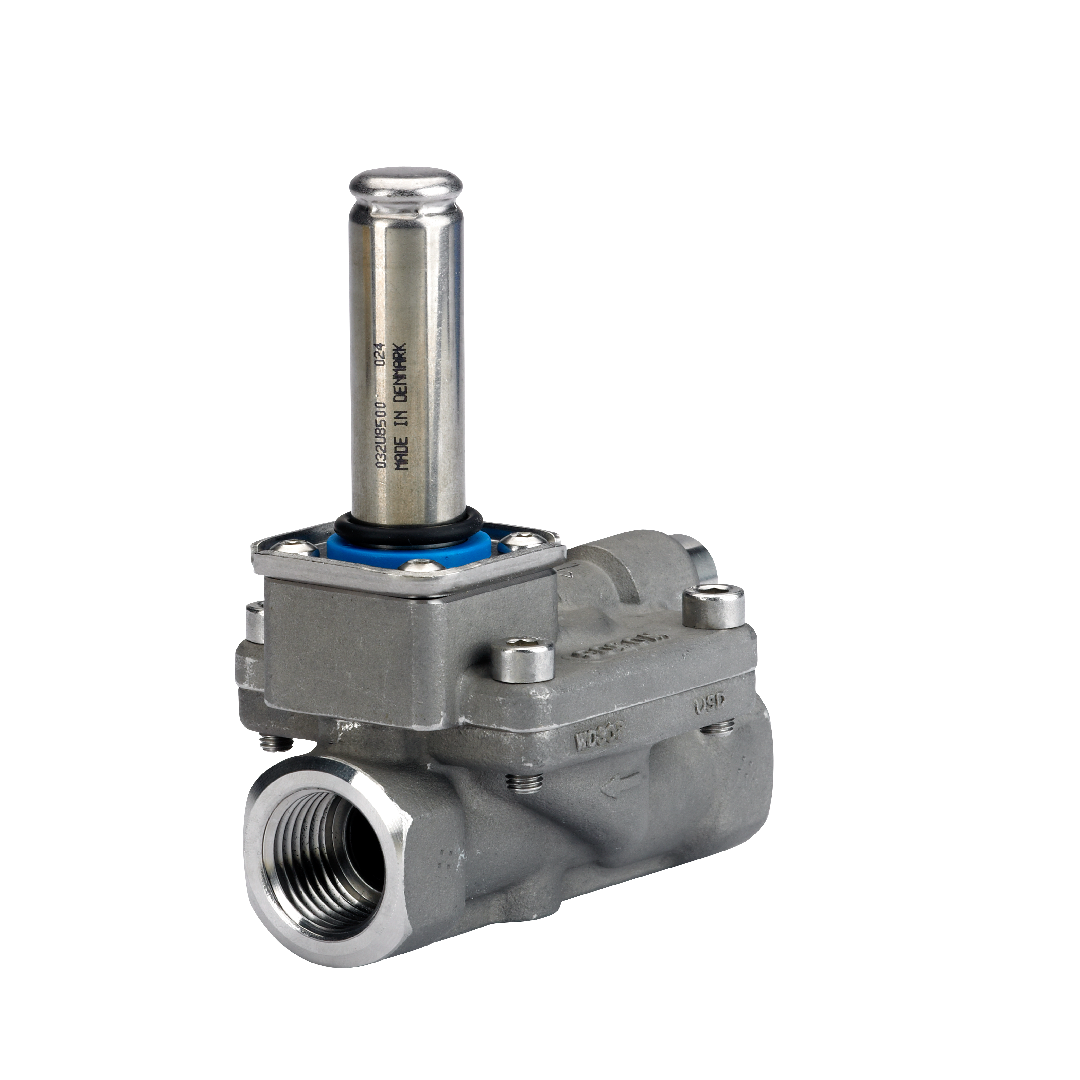

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U8500

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U8500

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 7,000.00 ฿
ราคาปกติ ราคาโปรโมชัน 7,000.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U8500

โซลินอยด์วาล์ว Danfoss รหัส 032U8500 ซีรีส์ EV220B ช่วยเสริมเกราะความแข็งแกร่งให้ระบบขนาดกลาง วาล์วมีฟังก์ชันการทำงานปกติปิด (NC) พร้อมเกลียว G ขนาด 1/2 นิ้ว ดูแลอัตราการไหลได้อย่างมีประสิทธิภาพที่ 4 m³/h พร้อมเสริมซีลยาง EPDM ที่ออกแบบมาเพื่อทนทานต่อน้ำและป้องกันการกัดกร่อนจากสภาพแวดล้อม ความใส่ใจในรายละเอียดของ Danfoss ช่วยให้คุณบริหารจัดการการไหลได้อย่างมั่นใจและไร้รอยต่อ

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220B
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 1/2 นิ้ว
  • ความสามารถรองรับอัตราการไหล 4 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220B
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 1/2
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.66 Kilogram
Net weight 0.606 Kilogram
Volume 3.684 Liter
EAN 5702423123353
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval PZH
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 16 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 232 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Technical & Soft Water
Media tolerance comments Aggressive media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 24 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 15SS G 12E NC000
Type EV220B
Type designation EV220B 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U8500)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1/2 นิ้ว
  • ปริมาณการไหล (Kv) 4 m³/h
  • วัสดุซีล EPDM
