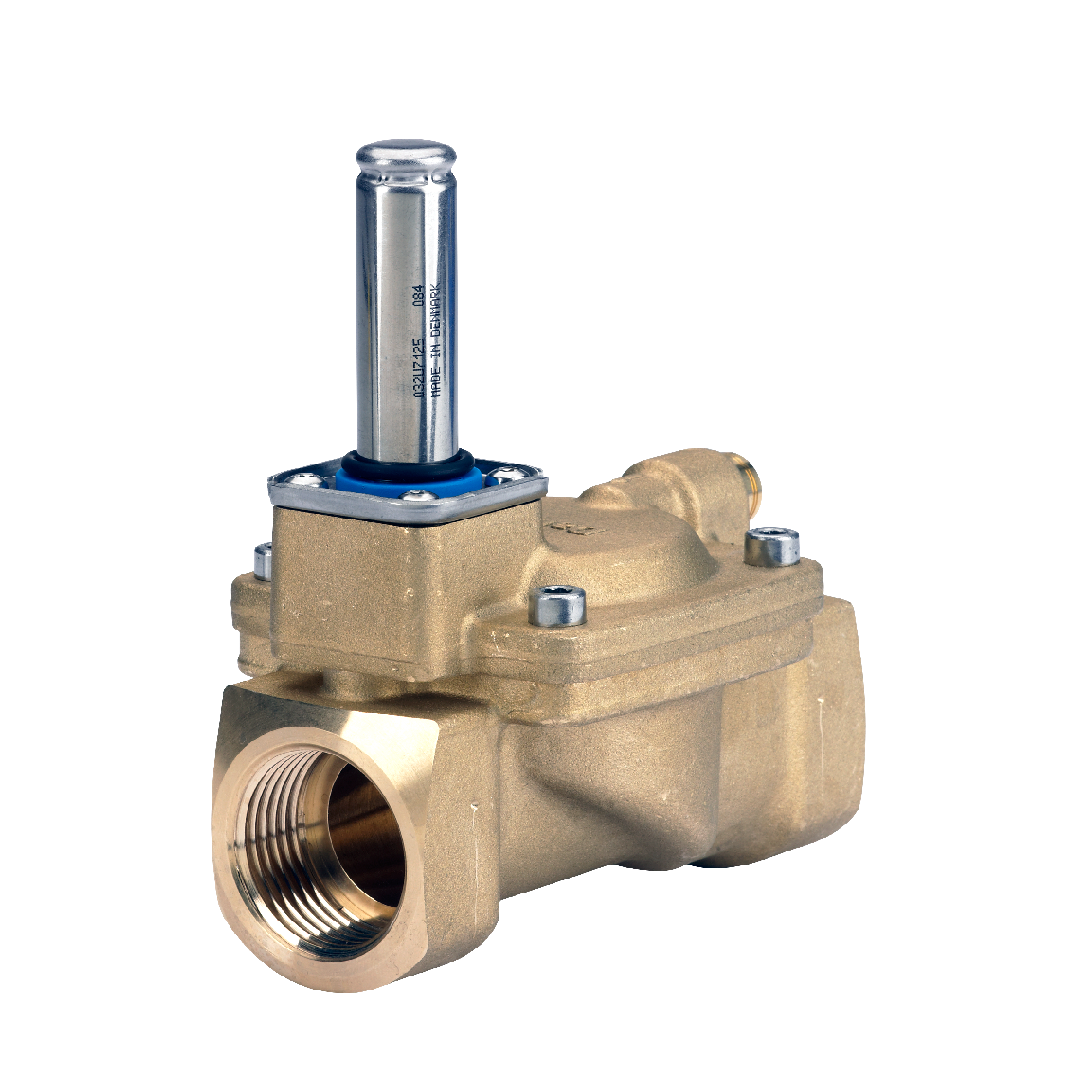

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U8115

Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U8115

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 7,000.00 ฿
ราคาปกติ ราคาโปรโมชัน 7,000.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1/2, 4 m³/h, EPDM 032U8115

โซลินอยด์วาล์ว Danfoss รหัส 032U8115 รุ่น EV220B ผสานฟังก์ชันกะทัดรัดและประสิทธิภาพสูงเข้าด้วยกัน วาล์วทำงานแบบปกติปิด (NC) ติดตั้งด้วยเกลียว G 1/2 นิ้ว รองรับความจุอัตราการไหลที่ 4 m³/h เสริมด้วยซีล EPDM ทนทานต่อน้ำและสภาพอากาศได้อย่างสมบูรณ์แบบ Danfoss ได้นำความเชี่ยวชาญด้านวิศวกรรมมาออกแบบให้วาล์วสามารถตอบสนองได้อย่างรวดเร็วและช่วยรักษาเสถียรภาพของระบบให้ยาวนานขึ้น

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220B
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 1/2 นิ้ว
  • ความสามารถรองรับอัตราการไหล 4 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220B
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 1/2
  • อัตราการไหล: 4 m³/h
  • วัสดุซีล: EPDM
Gross weight 0.736 Kilogram
Net weight 0.686 Kilogram
Volume 1.518 Liter
EAN 5702423014989
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval DNVGL-CG-0339
GL
PZH
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 4.6 gal/min
Differential pressure [bar] [max] 16 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 232 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 350 ms
Est. time to open, water [ms] 40 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
Identical product 032U7115
In scope of WEEE Yes
Kv value [m³/h] 4 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Water & Brine
Media tolerance comments Neutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 15 mm
Orifice size fraction [in] 5/8 in
Packing format Industrial pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 10 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. b8af40bc-3f7f-4177-bd55-c3503cccfc04
SCIP dossier product name EV220B 15-50 brass NC - solenoid valve
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 15B G 12E NC000
Type EV220B
Type designation EV220B 15
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U8115)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1/2 นิ้ว
  • ปริมาณการไหล (Kv) 4 m³/h
  • วัสดุซีล EPDM
