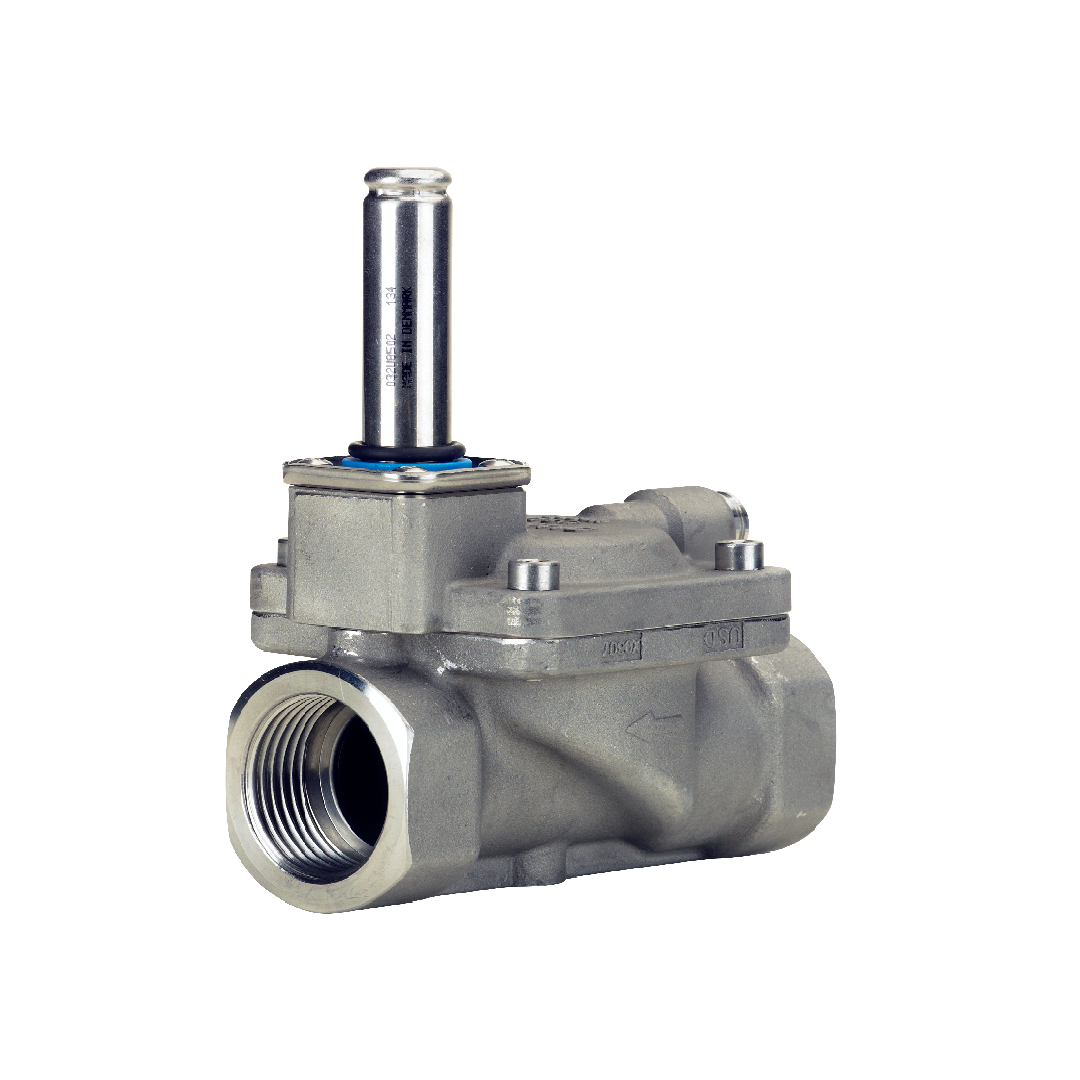

Danfoss Solenoid valve, EV220B, Function: NC, G, 1, 11 m³/h, EPDM 032U8502

Danfoss Solenoid valve, EV220B, Function: NC, G, 1, 11 m³/h, EPDM 032U8502

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 6,980.00 ฿
ราคาปกติ ราคาโปรโมชัน 6,980.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV220B, Function: NC, G, 1, 11 m³/h, EPDM 032U8502

การประสานงานที่ลงตัวเพื่อความต่อเนื่องของระบบ โซลินอยด์วาล์ว Danfoss รหัส 032U8502 ซีรีส์ EV220B ออกแบบให้ทำงานแบบปกติปิด (NC) มาพร้อมขนาดเกลียว G 1 นิ้ว รองรับอัตราการไหลที่ 11 m³/h วาล์วรุ่นนี้เสริมสมรรถนะด้วยซีล EPDM ซึ่งให้ความยืดหยุ่นสูงทนต่อน้ำและสภาพอากาศ การเลือกใช้เทคโนโลยีระดับโลกจาก Danfoss คือกุญแจสำคัญที่ทำให้ระบบท่อและของไหลทำงานประสานกันอย่างมีเสถียรภาพสูงสุด

คุณสมบัติ

  • โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV220B
  • ฟังก์ชันการทำงานรูปแบบ NC
  • ลักษณะการเชื่อมต่อเกลียว G ขนาด 1 นิ้ว
  • ความสามารถรองรับอัตราการไหล 11 m³/h
  • วัสดุซีลประกอบวาล์วชนิด EPDM

ข้อมูลจำเพาะ

  • ซีรีส์วาล์ว: EV220B
  • รูปแบบการทำงาน: NC
  • จุดเชื่อมต่อ: G 1
  • อัตราการไหล: 11 m³/h
  • วัสดุซีล: EPDM
Gross weight 1.24 Kilogram
Net weight 1.178 Kilogram
Volume 1.295 Liter
EAN 5702423124343
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Open
Approval PZH
Body material Stainless steel
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Stainless steel
Connection size [in] 1
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 12.7 gal/min
Differential pressure [bar] [max] 16 bar
Differential pressure [bar] [min] 0.3 bar
Differential pressure [psi] [max] 232 psi
Differential pressure [psi] [min] 4.35 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to open, water [ms] 300 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 11 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Technical & Soft Water
Media tolerance comments Aggressive media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max] 120 °C
Medium temperature range [°C] [min] -30 °C
Medium temperature range [°F] [max] 248 °F
Medium temperature range [°F] [min] -22 °F
Number of ways 2/2
Open/close equalizing orifice Optional Equalization orifice
Operation Servo-operated (diaphragm)
Orifice size [mm] 25 mm
Orifice size fraction [in] 1 in
Packing format Multi pack
Parts Program name EV220B 15 - 50
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 12 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV220B 25SS G 1E NC000
Type EV220B
Type designation EV220B 25
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV220B (รหัส 032U8502)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว G ขนาด 1 นิ้ว
  • ปริมาณการไหล (Kv) 11 m³/h
  • วัสดุซีล EPDM
