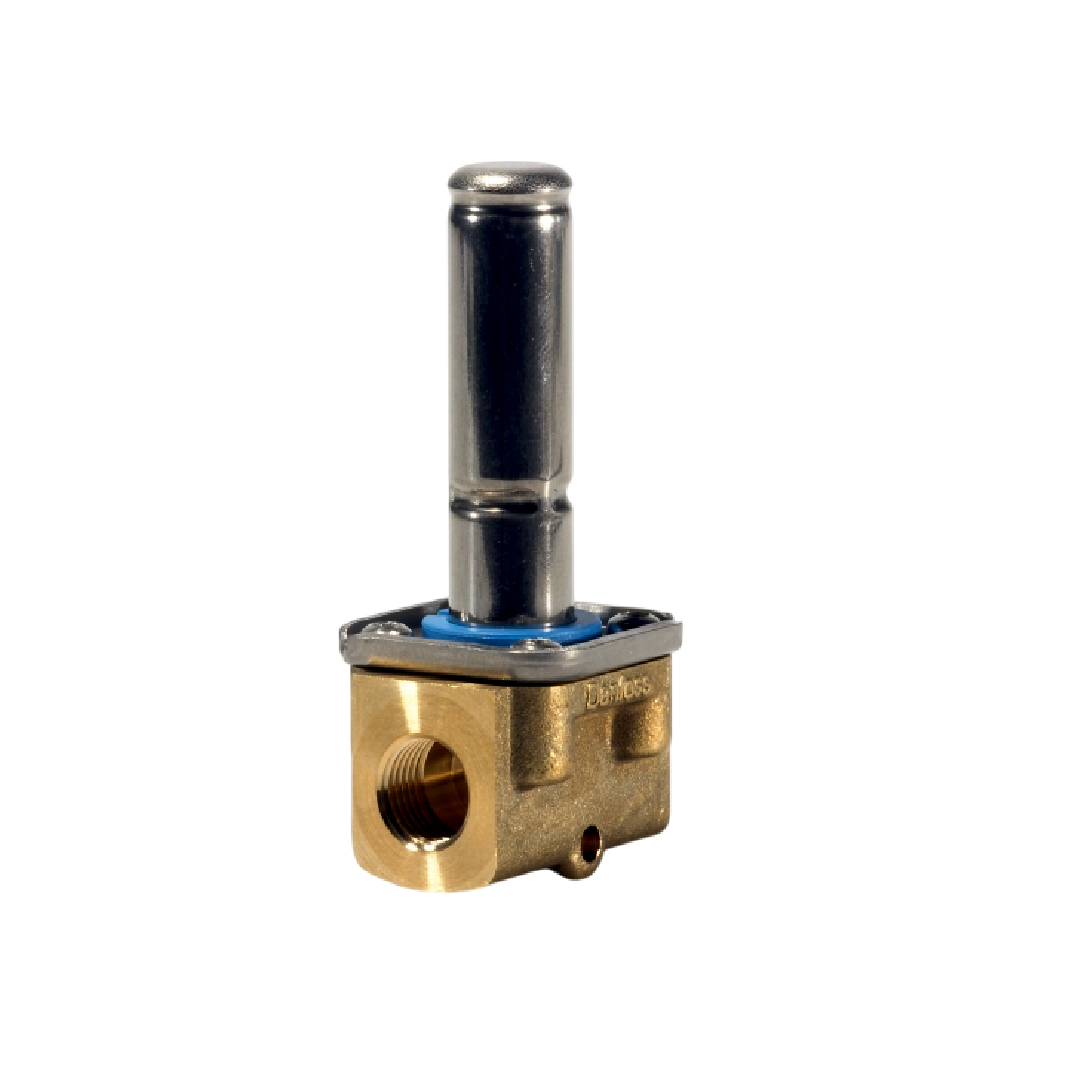

Danfoss Solenoid valve, EV210BW, Function: NO, G, 1/4, 0.15 m³/h, EPDM 132U2301

Danfoss Solenoid valve, EV210BW, Function: NO, G, 1/4, 0.15 m³/h, EPDM 132U2301

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 18,530.00 ฿
ราคาปกติ ราคาโปรโมชัน 18,530.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV210BW, Function: NO, G, 1/4, 0.15 m³/h, EPDM 132U2301

เติมเต็มความสมบูรณ์ให้ระบบวิศวกรรมของคุณด้วย Danfoss วาล์วควบคุมของไหลรุ่น EV210BW รหัส 132U2301 วาล์วชนิดปกติเปิด (NO) ที่ปล่อยผ่านของเหลวได้อย่างอิสระ เหมาะสำหรับระบบที่ต้องเชื่อมต่ออย่างต่อเนื่อง ด้วยขนาดข้อต่อ G 1/4 ทำให้วาล์วตัวนี้สามารถประมวลผลการไหลได้ที่ 0.15 m³/h ป้องกันการรั่วไหลอย่างเหนือชั้นด้วยซีล EPDM คุณภาพสูงที่ทนทานต่อสารเคมีอ่อนและน้ำ Danfoss มุ่งมั่นพัฒนาผลิตภัณฑ์ขนาดกะทัดรัดแต่เปี่ยมด้วยพละกำลังความเสถียร

คุณสมบัติ

  • วาล์วควบคุม EV210BW พาร์ทนัมเบอร์ 132U2301
  • รูปแบบสถานะ NO (ปกติเปิด)
  • ขนาดพอร์ตเชื่อมต่อ G 1/4
  • อัตราการไหลเวียนสูงสุด 0.15 m³/h
  • ซีล EPDM แท้เพื่อความทนทาน

ข้อมูลจำเพาะ

  • ซีรีส์รุ่น EV210BW
  • รูปแบบการทำงาน NO
  • การเชื่อมต่อ G 1/4
  • อัตราการไหล 0.15 m³/h
  • วัสดุซีล EPDM
Gross weight 0.169 Kilogram
Net weight 0.142 Kilogram
Volume 0.253 Liter
EAN 5702428544184
Actuator BW
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 70 °C
Ambient temperature max. [°F] 158 °F
Application Closed and Drain
Approval ACS
PZH
RISE
SINTEF
Body material Eco brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Eco brass
Connection size [in] 1/4
Connection standard ISO 228-1
Connection type G
Contain batteries No
Cv value [gal/min] 0.17 gal/min
Differential pressure [bar] [max] 10 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 145 psi
Differential pressure [psi] [min] 0 psi
Est. time to close, water [ms] 20 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes
EU RoHS exemption clause No
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NO
Kv value [m³/h] 0.15 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Drinking Water&Heating ECO/SS
Media tolerance comments Slightly aggressive media
Medium temperature range [°C] [max] 90 °C
Medium temperature range [°C] [min] 0 °C
Medium temperature range [°F] [max] 194 °F
Medium temperature range [°F] [min] 32 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 2 mm
Orifice size fraction [in] 5/64 in
Packing format Multi pack
Parts Program name EV210BW
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 20 pc
REACH Candidate List substances No
Seal Material EPDM
Serviceable Solenoid valve spare parts
Specification key EV210BW 2BE G 14E NO000
Type EV210BW
Type designation EV210BW 2
UK RoHS compliance Out of scope
UNSPSC CODE 40141605

ข้อมูลทางเทคนิค

  • รุ่นผลิตภัณฑ์ (Product Model) EV210BW
  • การทำงานพื้นฐาน (Action) NO (Normally Open)
  • ลักษณะจุดต่อ (Connection Type) G 1/4 นิ้ว
  • ค่าการไหล (Flow Capacity) 0.15 m³/h
  • วัสดุยางซีล (Sealing) EPDM
