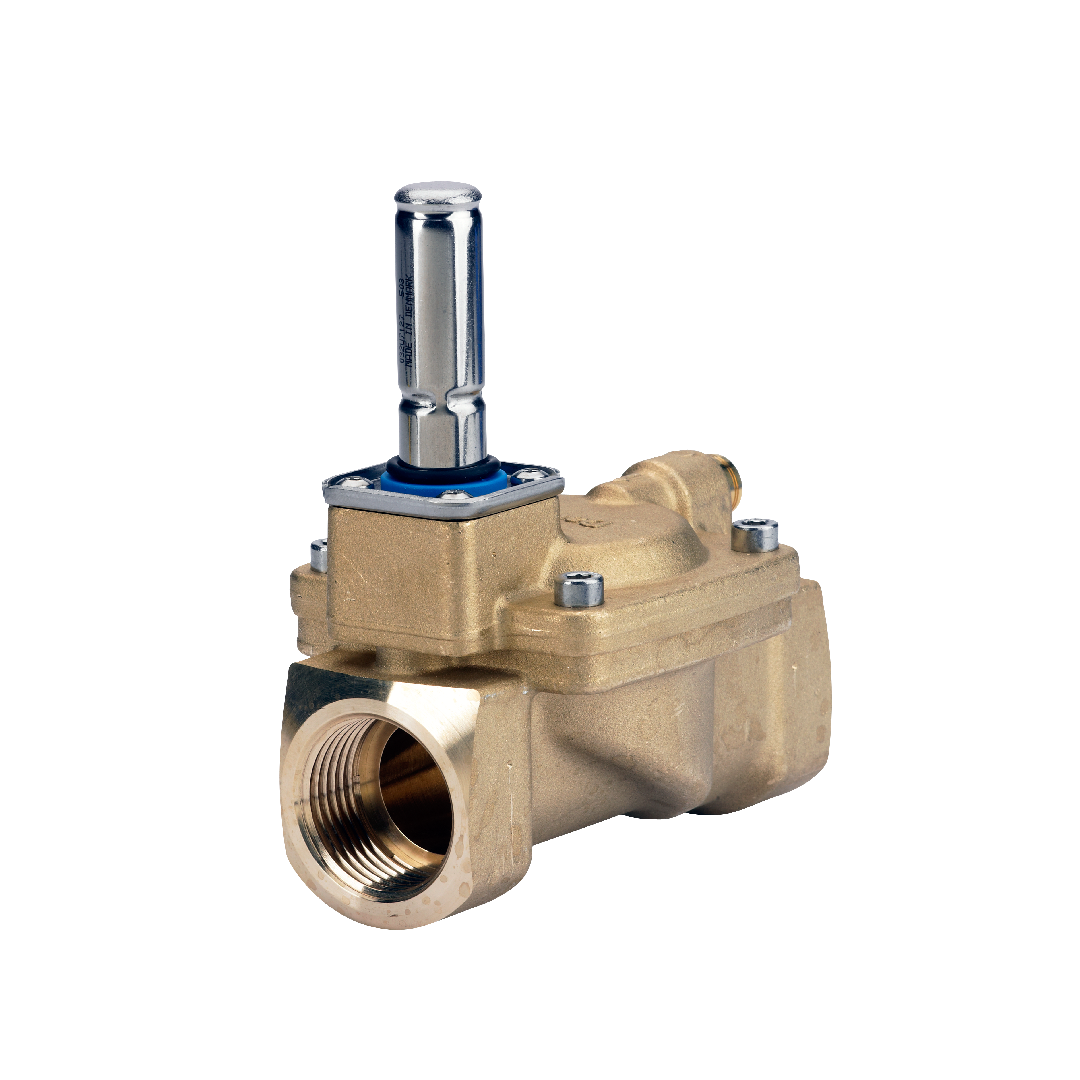

Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/2, 1.5 m³/h, FKM 032U7567

Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/2, 1.5 m³/h, FKM 032U7567

รูปสินค้าอาจไม่ตรงกับของจริง รบกวนสอบถามแอดมินเพื่อขอดูรูปเพิ่มเติม

DANFOSS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
ราคาปกติ 9,900.00 ฿
ราคาปกติ ราคาโปรโมชัน 9,900.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/2, 1.5 m³/h, FKM 032U7567

Danfoss Solenoid valve, EV210B, Function: NC, NPT, 1/2, 1.5 m³/h, FKM 032U7567: วาล์วไฟฟ้าทำงานตรง (Direct-operated) จาก Danfoss ซีรีส์ EV210B ที่ออกแบบมาสำหรับการใช้งานที่ต้องการความแม่นยำแม้ในสภาวะความดันต่างต่ำ ฟังก์ชันปกติปิด (NC) ขนาดเกลียว NPT 1/2 นิ้ว อัตราการไหล 1.5 m³/h เลือกใช้ซีล FKM ทนต่อสารเคมี สารกัดกร่อน และน้ำมันได้อย่างดีเยี่ยม โครงสร้างมีความกะทัดรัด แข็งแรง ทนต่อแรงดันสะสมได้ดี ให้การเปิดปิดคอยล์ที่ฉับไว ตอบโจทย์งานควบคุมของไหลเฉพาะทางในระบบอุตสาหกรรมที่ต้องการเสถียรภาพระดับสูง

คุณสมบัติ

  • โซลินอยด์วาล์วอุตสาหกรรม Danfoss ซีรีส์ EV210B
  • ออกแบบให้มีระบบการทำงานแบบปกติปิด (NC)
  • จุดเชื่อมต่อท่อขนาด 1/2 นิ้ว ชนิดเกลียว NPT
  • ความสามารถในการรองรับอัตราการไหล 1.5 m³/h
  • ชิ้นส่วนซีลภายในผลิตจากวัสดุ FKM

ข้อมูลจำเพาะ

  • รหัสสินค้า: 032U7567 (รุ่น EV210B)
  • รูปแบบการทำงาน: ปกติปิด (NC)
  • การเชื่อมต่อ: เกลียว NPT ขนาด 1/2 นิ้ว
  • อัตราการไหล: 1.5 m³/h
  • วัสดุซีล: FKM
Gross weight 0.35 Kilogram
Net weight 0.323 Kilogram
Volume 0.338 Liter
EAN 5702423045280
Actuator B
Actuator size 13.5 mm
Actuator size [in] 0.53 in
Actuator system [mm] 13.5 mm
Ambient temperature max. [°C] 80 °C
Ambient temperature max. [°F] 176 °F
Application Closed and Drain
Approval DNVGL-CG-0339
Body material Brass
China RoHS compliance Out of scope
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1/2
Connection standard ANSI/ASME B1.20.1
Connection type NPT
Contain batteries No
Cv value [gal/min] 1.75 gal/min
Differential pressure [bar] [max] 0.76 bar
Differential pressure [bar] [min] 0 bar
Differential pressure [psi] [max] 11 psi
Differential pressure [psi] [min] 0 psi
EEE category 5 small equipment (any external dimension < 50 cm)
Est. time to close, water [ms] 30 ms
Est. time to open, water [ms] 20 ms
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group 1
Function NC
In scope of WEEE Yes
Kv value [m³/h] 1.5 m³/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 35.2 bar
Max. test pressure [psig] 510 psig
Max. Working Pressure [bar] 24.1 bar
Max. Working Pressure [psig] 350 psig
Media recommendations Oil,Comp.Air,Vacuum
Media tolerance comments Neutral media
Medium temperature range [°C] [max] 60 °C
Medium temperature range [°C] [min] -10 °C
Medium temperature range [°F] [max] 140 °F
Medium temperature range [°F] [min] 14 °F
Number of ways 2/2
Operation Direct-operated
Orifice size [mm] 10 mm
Orifice size fraction [in] 3/8 in
Packing format Multi pack
Parts Program name EV210B
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product Name Description Solenoid valve
Quantity per packing format 15 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. f39c9b5f-71a1-49e3-bc6d-20baa8f46870
SCIP dossier product name EV210B brass NC - solenoid valve
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV210B 10B N 12F NC000
Type EV210B
Type designation EV210B 10
UK RoHS compliance Out of scope

ข้อมูลทางเทคนิค

  • ซีรีส์และรหัสสินค้า รุ่น EV210B (รหัส 032U7567)
  • สถานะการทำงาน (Function) NC
  • ประเภทและขนาดเกลียว เกลียว NPT ขนาด 1/2 นิ้ว
  • ปริมาณการไหล (Kv) 1.5 m³/h
  • วัสดุซีล FKM
