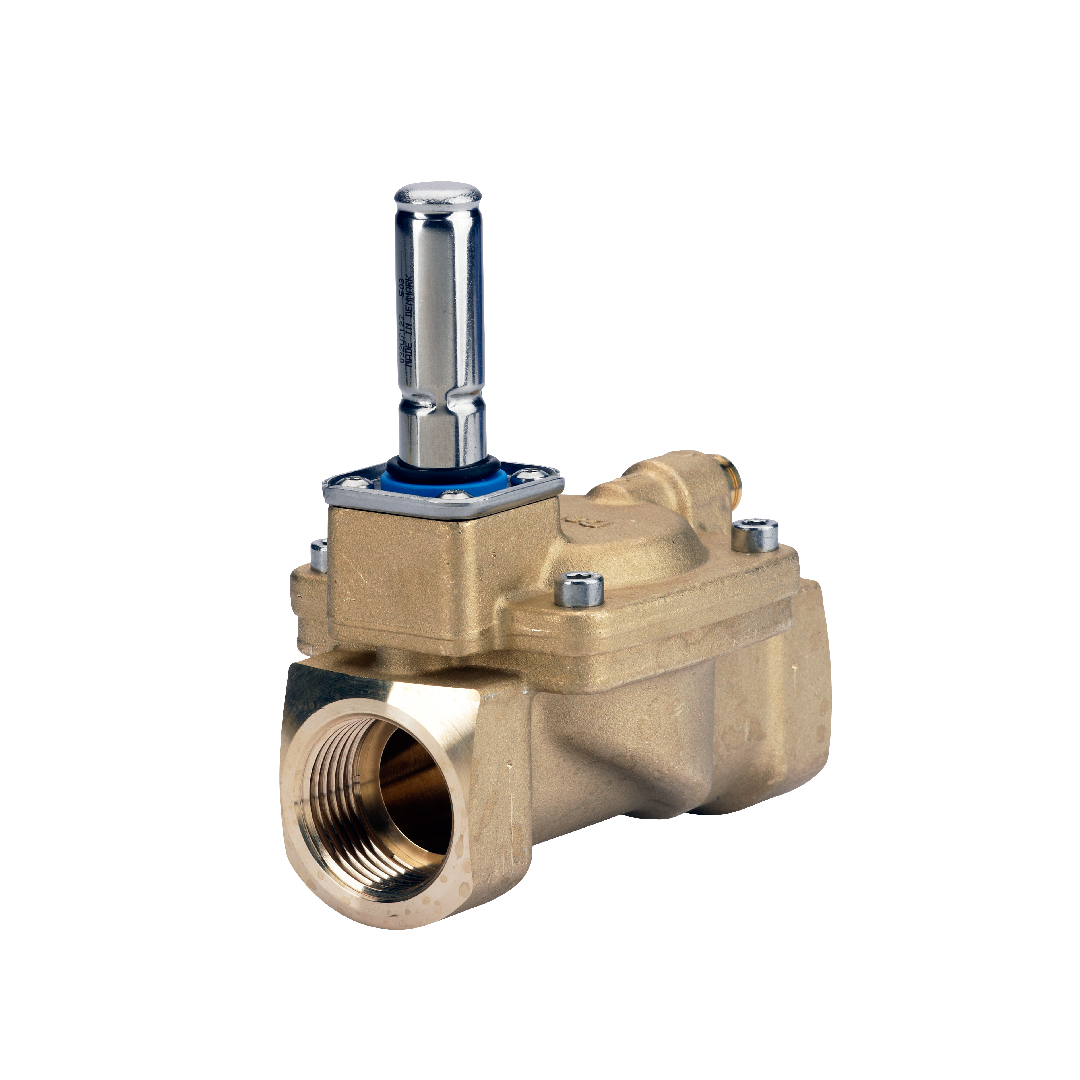

- Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U811402
1
/
จาก
1
Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U811402
Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U811402
DANFOSS
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
7,000.00 ฿
ราคาปกติ
ราคาโปรโมชัน
7,000.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Danfoss Solenoid valve, EV210B, Function: NC, G, 1/4, 0.3 m³/h, PTFE 032U811402
ความเที่ยงตรงที่ออกแบบมาเพื่อสารเคมี โซลินอยด์วาล์ว Danfoss ซีรีส์ EV210B รหัส 032U811402 ทำงานระบบปกติปิด (NC) ข้อต่อเกลียว G ขนาดเล็กลงตัว 1/4 นิ้ว สำหรับอัตราการไหลแม่นยำ 0.3 m³/h เหนือกว่าด้วยวัสดุซีล PTFE ที่ให้ความทนทานต่อน้ำยาเคมีรุนแรงและการกัดกร่อนสูง การเลือกใช้เทคโนโลยีชั้นสูงจาก Danfoss ช่วยแก้ปัญหาความท้าทายในกระบวนการทางเคมีและรับประกันความปลอดภัยขั้นสูงสุดให้กับโรงงาน
ดูรายละเอียดทั้งหมด
คุณสมบัติ
คุณสมบัติ
- โซลินอยด์วาล์วแบรนด์ Danfoss ซีรีส์ EV210B
- ฟังก์ชันการทำงานรูปแบบ NC
- ลักษณะการเชื่อมต่อเกลียว G ขนาด 1/4 นิ้ว
- ความสามารถรองรับอัตราการไหล 0.3 m³/h
- วัสดุซีลประกอบวาล์วชนิด PTFE
ข้อมูลจำเพาะ
ข้อมูลจำเพาะ
- ซีรีส์วาล์ว: EV210B
- รูปแบบการทำงาน: NC
- จุดเชื่อมต่อ: G 1/4
- อัตราการไหล: 0.3 m³/h
- วัสดุซีล: PTFE
| Gross weight | 0.45 Kilogram |
| Net weight | 0.415 Kilogram |
| Volume | 0.88 Liter |
| EAN | 5702428048637 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Closed and Drain |
| Approval |
CE DNVGL-CG-0339 UKCA |
| Body material | Brass |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Coil type | BA |
| Connection Internal/External | Internal |
| Connection material | Brass |
| Connection size [in] | 1/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contain batteries | No |
| Cv value [gal/min] | 0.35 gal/min |
| Differential pressure [bar] [max] | 9 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 131 psi |
| Differential pressure [psi] [min] | 0 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 20 ms |
| Est. time to open, water [ms] | 20 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Function | NC |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 0.3 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 9 bar |
| Max. Working Pressure [psig] | 131 psig |
| Media recommendations | Oil,Comp.Air,Vacuum |
| Media tolerance comments | Neutral media |
| Medium temperature range [°C] [max] | 140 °C |
| Medium temperature range [°C] [min] | -10 °C |
| Medium temperature range [°F] [max] | 284 °F |
| Medium temperature range [°F] [min] | 14 °F |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size [mm] | 3 mm |
| Orifice size fraction [in] | 1/8 in |
| Packing format | Multi pack |
| Parts Program name | EV210B |
| Power consumption [W] DC | 14 W |
| Product accessories |
Solenoid coil accessories Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | f39c9b5f-71a1-49e3-bc6d-20baa8f46870 |
| SCIP dossier product name | EV210B brass NC - solenoid valve |
| Seal Material | PTFE |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV210B 3B G 14T NC000 BA024D |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | EV210B |
| Type designation | EV210B 3 |
| UK RoHS compliance | Out of scope |
