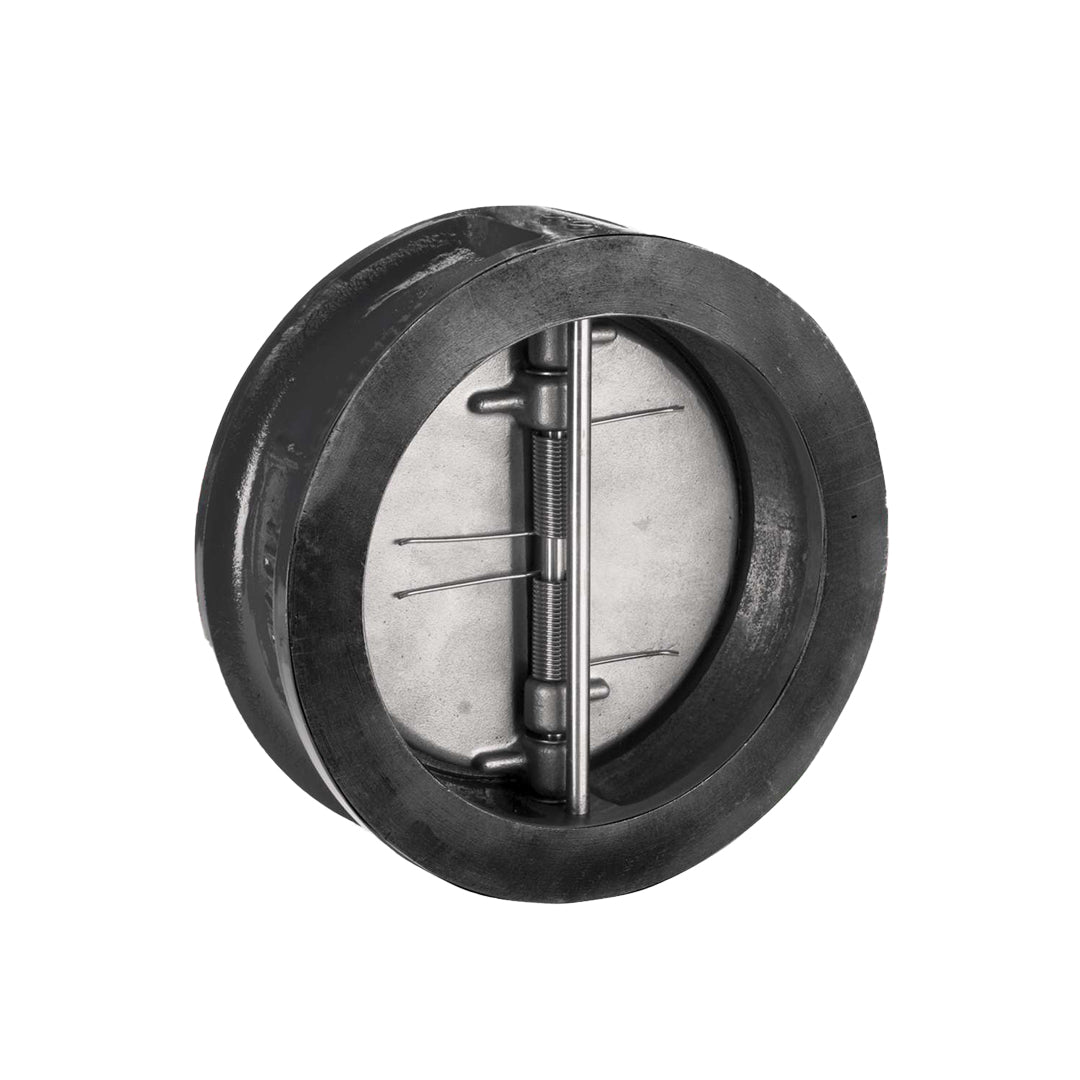

| No. | Part | Material |
|---|---|---|
| 1 | Body | Cast Iron EN-GJL-250 PN16/ANSI125 DN50-DN150 |
| Ductile Iron EN-GJS-400-15 PN16/ANSI125 DN200-DN600 | ||
| Ductile Iron EN-GJS-400-15 PN25 DN50-DN600 | ||
| 2 | Disc | Stainless Steel SS304 |
| 3 | ID Plate | Anodised Aluminium |
| 4 | Seat | EPDM Max 120°C |
| 5 | Stop Bolt | Stainless Steel 304 |
| 6 | Stem | Stainless Steel 304 |
| 7 | Spring | Stainless Steel 304 |
| 8 | Washer | PTFE |
| 9 | Gasket | EPDM Max 120°C |
Dimensions & Weights
| Size(DN) | A(mm) | B(mm) | F(mm) | H(mm) | Weight(Kg) | Eyebolt Tapping (To BS EN 3226:2010) |
Kv Values | |
|---|---|---|---|---|---|---|---|---|
| PN16 PN25 |
ANSI 125 |
|||||||
| DN50 | 107 | 102 | 66 | 10 | 43 | 1.5 | N/A | 44 |
| DN65 | 127 | 121 | 80.5 | 16 | 46 | 2.2 | N/A | 102 |
| DN80 | 142 | 133 | 95 | 15 | 64 | 3.2 | N/A | 128 |
| DN100 | 162 | 171 | 119 | 28 | 64 | 4.1 | N/A | 203 |
| DN125 | 192 | 193 | 146 | 38 | 70 | 5.7 | N/A | 528 |
| DN150 | 218 | 219 | 171 | 47 | 76 | 8.2 | N/A | 688 |
| DN200 | 273 | 276 | 224.5 | 70 | 89 | 14.6 | M8 | 1315 |
| DN250 | 328 | 336 | 266 | 78 | 114 | 24.2 | M10 | 2315 |
| DN300 | 382 | 406 | 311 | 104 | 114 | 35.8 | M10 | 3623 |
| DN350 | 442 | 448 | 360 | 127 | 127 | 54 | M12 | 4620 |
| DN400 | 495 | 511 | 410 | 143 | 140 | 76 | M12 | 5166 |
| DN450 | 555 | 546 | 450 | 158 | 152 | 103 | M16 | 6164 |
| DN500 | 617 | 603 | 505 | 183 | 152 | 126 | M16 | 9670 |
| DN600 | 734 | 714 | 624 | 221 | 178 | 187 | M16 | 15340 |
