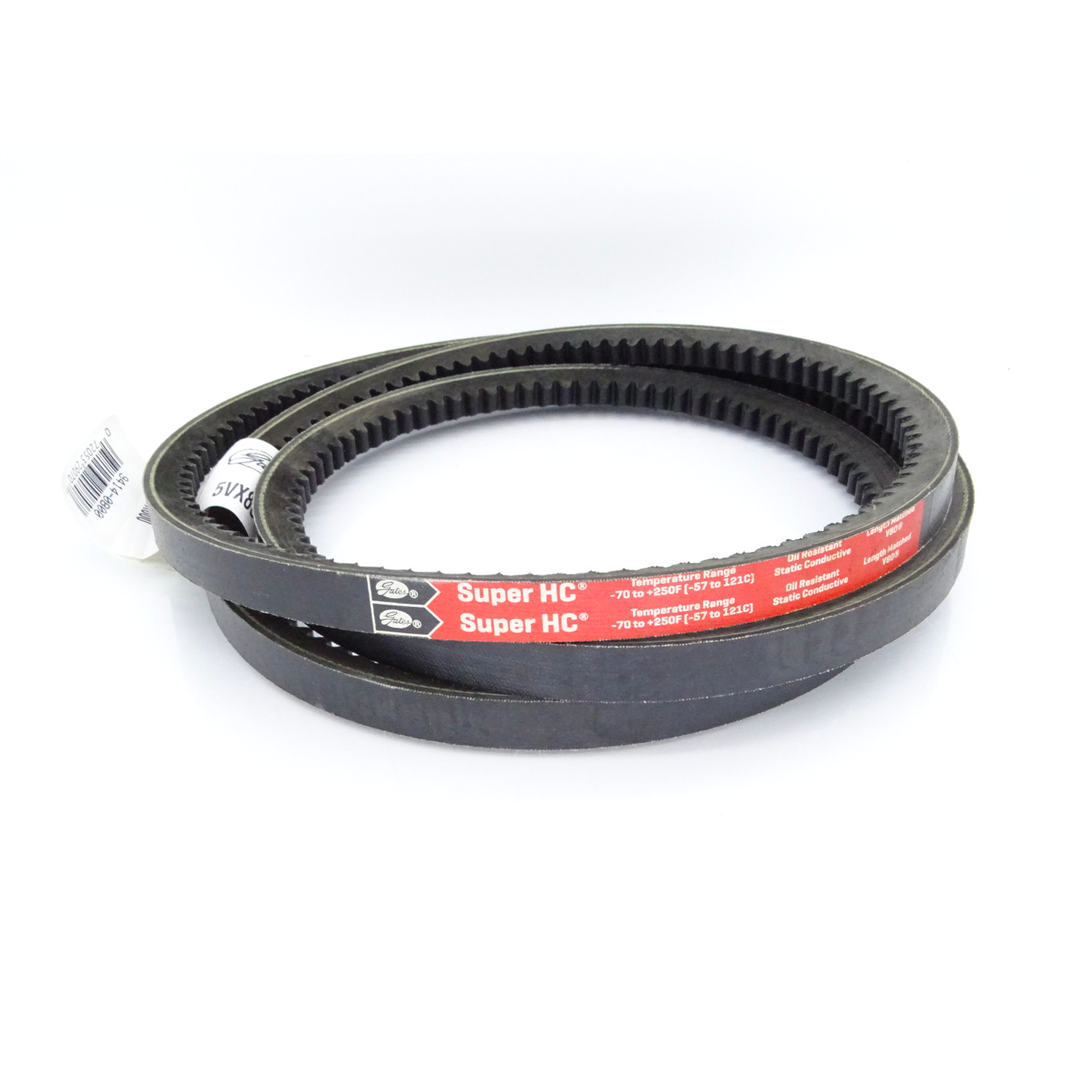

สายพาน GATES Super HC PowerBand 5VX1900

สายพาน GATES Super HC PowerBand 5VX1900

Gates

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
5,119.00 ฿
5,119.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด สายพาน GATES Super HC PowerBand 5VX1900

  • Notches molded into the belt during manufacturing make this belt well suited for drives with smaller diameter sheaves
  • Belt edge is machined for even sheave groove contact resulting in less slip and wear
  • Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
  • Patented ethylene material construction provides protection from -70°F to 250°F to help resist belt cracking
  • Meets RMA oil- and heat-resistant standards
  • Meet RMA static conductivity requirements
  • Suitable for all industrial applications, particularly where space, weight and horsepower capacity are critical

Specifications

Belt Category
Narrow Series - Inch
Section Size
5VX
Number of Sections
1
Outside Length
190.00 in
Cogged/Smooth
Cogged
Belt Style
SUPER HC® MOLDED NOTCH
Reinforcing Cord Material
Polyester
Resistance Features
Oil Resistant
Overall Height
0.5469 in
Top Width
0.6250 in
Material
EPDM
Operating Temperature Range
-60 to 250 °F
Standards Met
RMA
Weight
1.90 lbs
Manufacturer Catalog Number
9414-1900
Additional Details
Warning: Do not use Gates belts, pulleys, sprockets, hose or couplings on any aircraft propeller or motor drive systems or in-flight accessory drives. Gates products are not designed or intended for aircraft use.
Material
EPDM
