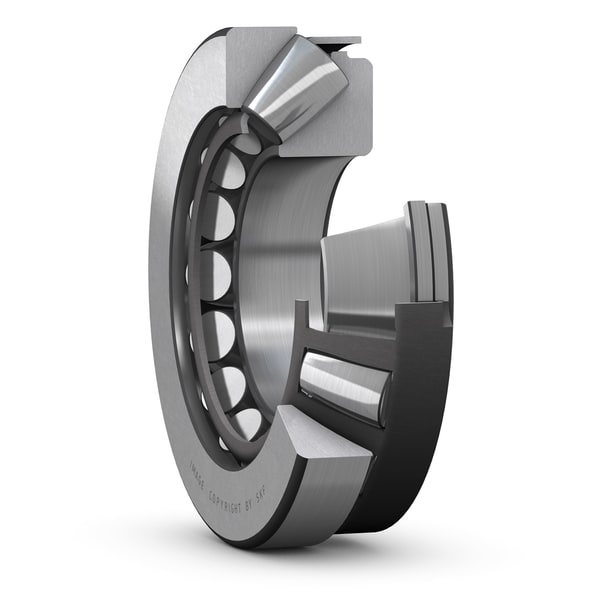

ตลับลูกปืน SKF 29326 E

d

130 mm

Bore diameter

D

225 mm

Outside diameter

H

58 mm

Nominal Height

d₁

≈ 203 mm

Outside diameter of shaft washer end side face

D₁

≈ 166 mm

Shoulder diameter outer ring

B

36.7 mm

Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)

B₁

225 mm

Outside diameter

C

30.1 mm

Height housing washer

s

75.6 mm

Distance from shaft washer end side face to pressure point

r_1,2

min.2.1 mm

Chamfer dimension shaft washer

น้ำหนัก

9 kg
