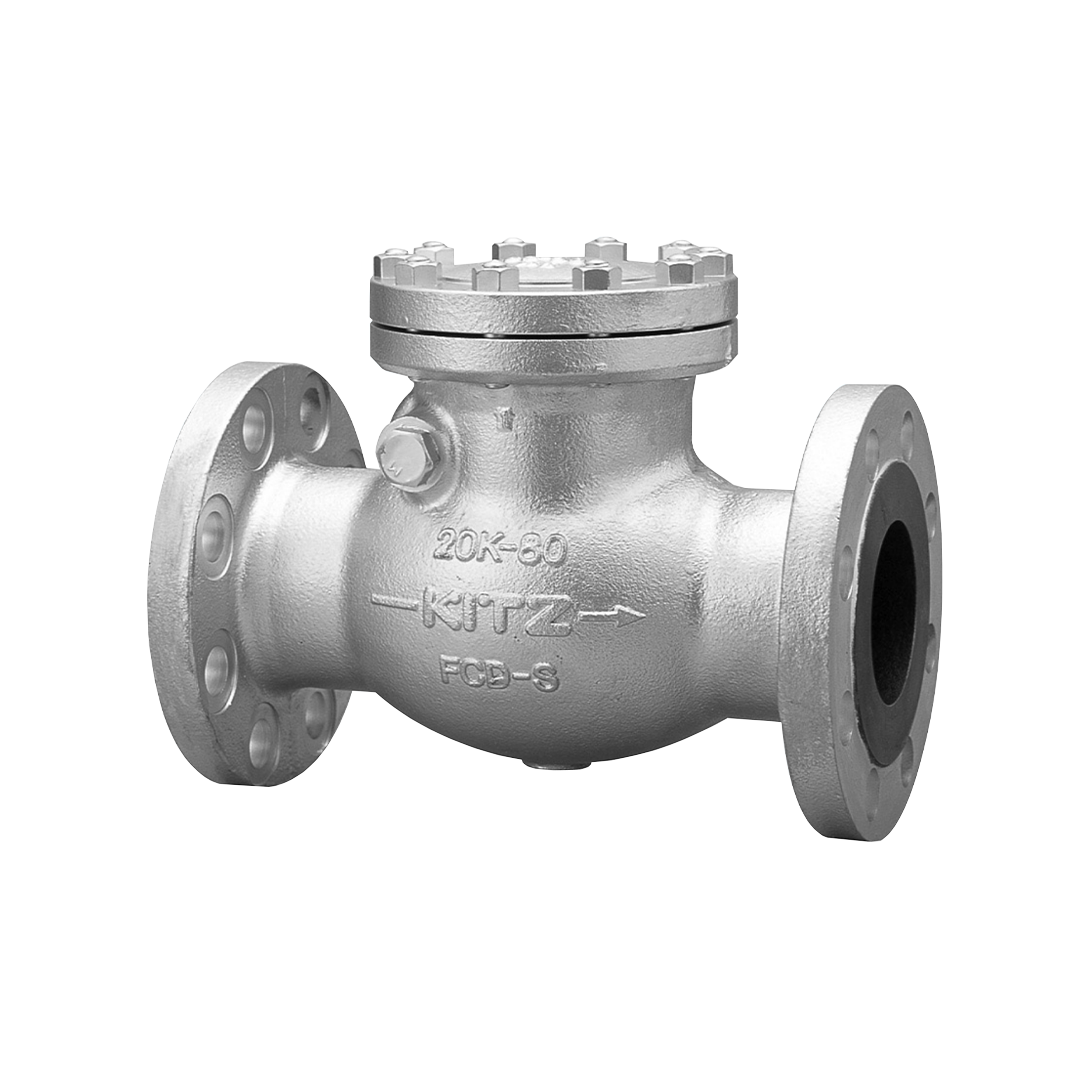

Check Valve KITZ 10 inches (250 mm.) Model 20SOB Ductile Iron (Check Valve KITZ)
Check Valve KITZ 10 inches (250 mm.) Model 20SOB Ductile Iron (Check Valve KITZ)
Regular price
251,520.00 ฿
Regular price
Sale price
251,520.00 ฿
Unit price
/
per
KITZ
กรุณาตรวจสอบสต็อกก่อนชำระเงินรายละเอียด Check Valve KITZ 10 inches (250 mm.) Model 20SOB Ductile Iron (Check Valve KITZ)
Check valve Kitz model 20SOB is a swing check valve suitable for use with water. lubricant Hydraulic oil, vapors, air and gases are used to prevent fluid backflow.
General information: Check valve Kitz model 20SOB
- Valve type: Swing Check Valve
- Brand: Kitz
- Model: 20SOB
- Valve body material: Ductile Iron
- Valve end: Flange (Flange End) JIS 20K standard
- Maximum working pressure: 20 kgf/cm² (Class 20K)
- Maximum operating temperature: still water: 120°C, vapors, air, gas, oil: 100°C
material
Parts | JIS Material |
---|---|
The machine | FCD-S |
cover | FCD-S |
Baffle | SUS403 (200~300: SCPH2+Cr) |
Nut barrier | SS400 (125~300: SUS304) |
Machine support ring | SUS403 |
lever | SCS13A (125~300SFVC2A/SCPH2) |
Hinge pin | SUS403 |
spring loop | SUS304 |
plug | SS400 |
Washer | SS400 (125~300:SUS403) |
Gasket | Non-asbestos Sheet |
Cover bolt/nut | Carbon Steel |
Size of check valve Kitz model 20SOB
Size of check valve Kitz model 20SOB
Nominal size | NPS | 10 inches |
---|---|---|
DN | 250 mm. | |
L | 622 mm. | |
H | 335 mm. |
