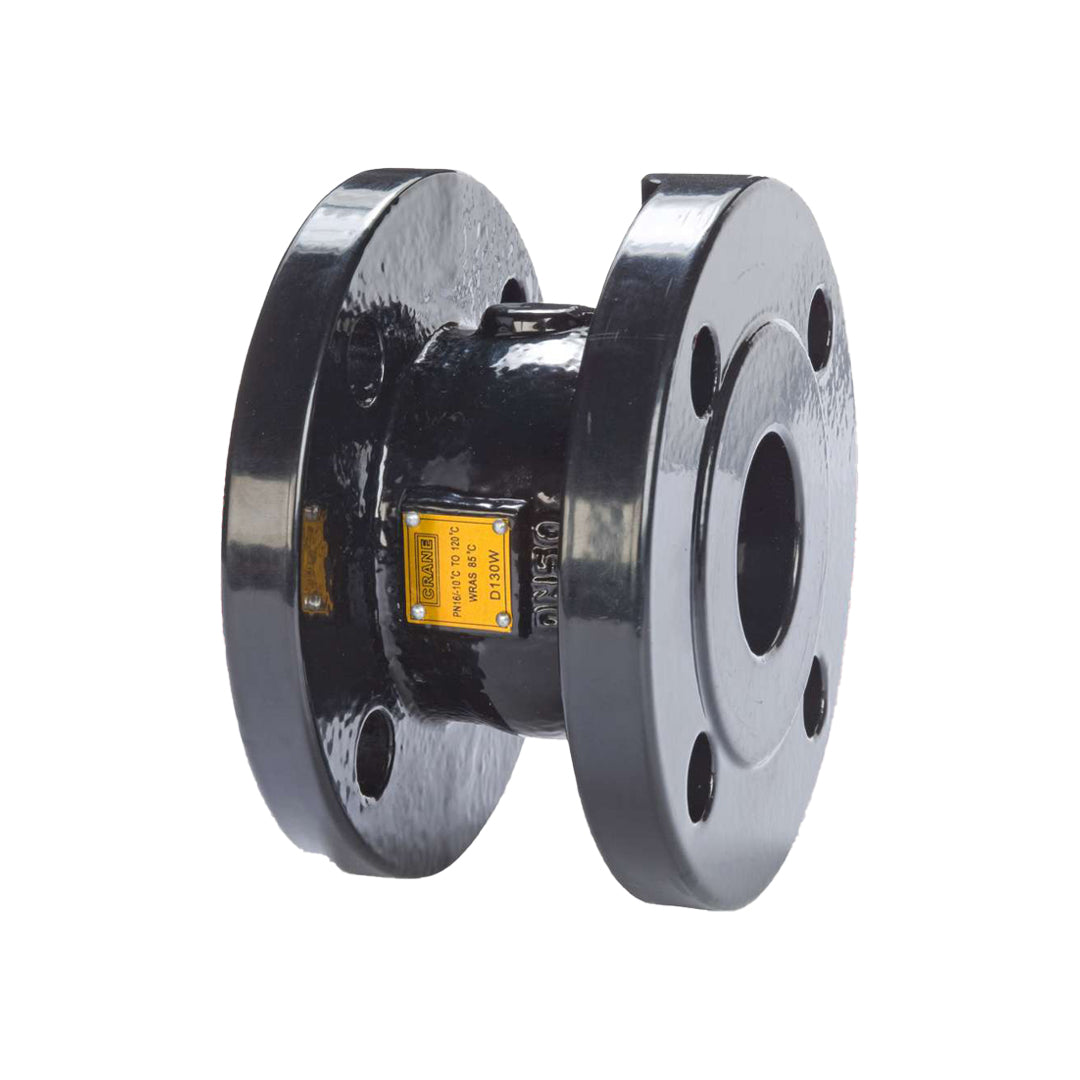

Check Valve Crane 12 inch Duo-Plate Model D130W,PN16

Check Valve Crane 12 inch Duo-Plate Model D130W,PN16

188,068.65 ฿
188,068.65 ฿
Sale Sold out

Crane

กรุณาตรวจสอบสต็อกก่อนชำระเงิน

รายละเอียด Check Valve Crane 12 inch Duo-Plate Model D130W,PN16

  • Axial disc spring loaded
  • Positive non-slam closure
  • WRAS is approved for use with pure (drinkable) water up to 85°C.
  • flexible seat
View full details
Check Valve Crane 12 นิ้ว Duo-Plate Model D130W,PN16

Materials

Part Material Specification
BS EN ASTM
Body Cast Iron 1561 EN-GJL-250 A126 CLASS B
Disc Cast Iron 1561 EN-GJL-250 A126 CLASS B
Seat EPDM WRAS Approved -
Spring Stainless Steel 304 1.4301 AISI 304
Stem Stainless Steel 304 1.4301 AISI 304
Bushing Brass 12164 CW617N -
Bushing Cast Iron 1561 EN-GJL-250 A126 CLASS B

Dimensions & Weights

Size(DN) A(mm) B(mm) Weight(Kg)
50 100 165 8
65 120 185 10
80 140 200 13
100 170 220 17
125 200 250 28
150 230 285 38
200 288 340 52
250 354 405 85
300 410 460 125
