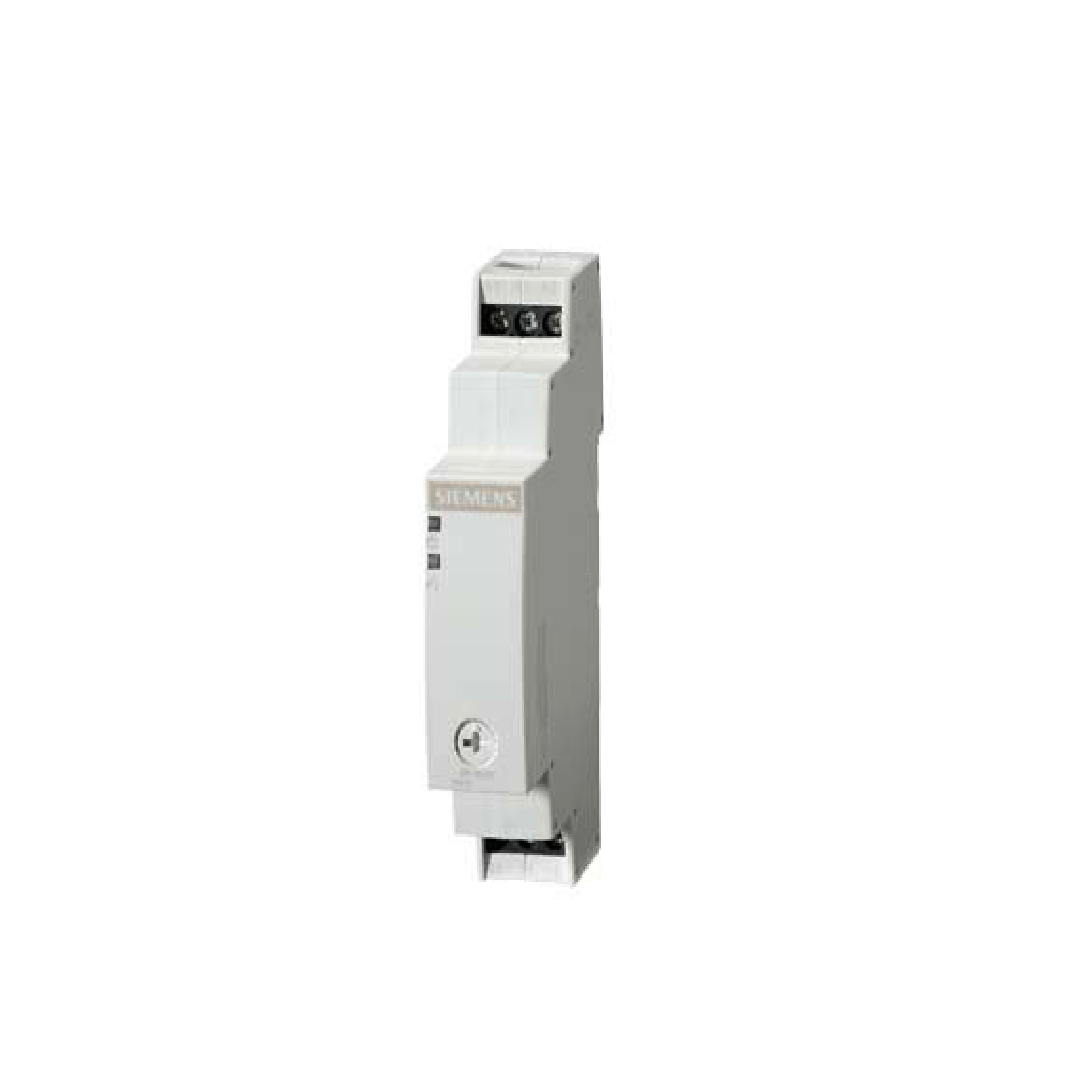

SIEMENS Timer Relay 7PV1512-1AQ30
SIEMENS Timer Relay 7PV1512-1AQ30
SIEMENS
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
1,898.00 ฿
ราคาปกติ
ราคาโปรโมชัน
1,898.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด SIEMENS Timer Relay 7PV1512-1AQ30
Siemens SIRIUS 7PV15 - On-Delay Timer Relay<ฝh3>Solid-state timing relays 7PV15 series for general use in control, starting and protective circuits for all switching operations involving time delays, e.g. in functional buildings, airports, industrial buildings etc.
On-Delay function
Rotary switch on the front
LED indicator for switch position and voltage
Combination wide voltage range
Integrated surge suppressor
17.5 mm width
DIN rail mounting
Solid-state timing relays 7PV15 series for general use in control, starting and protective circuits for all switching operations involving time delays, e.g. in functional buildings, airports, industrial buildings etc.
On-Delay function
Rotary switch on the front
LED indicator for switch position and voltage
Combination wide voltage range
Integrated surge suppressor
17.5 mm width
DIN rail mounting
Rotary switch on the front
LED indicator for switch position and voltage
Combination wide voltage range
Integrated surge suppressor
17.5 mm width
DIN rail mounting
| คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 100 → 127V |
| Mounting Type | DIN Rail |
| Number of Contacts | 1 |
| Time Range | 0.5 → 10s |
| Mode of Operation | ON Delay |
| Number of Timer Functions | Single |
| Contact Configuration | SPDT |
| Time Increment | Seconds |
| Maximum Current | (dc) 1 A, (ac) 3A |
| Power Supply | External |
| Terminal Type | Screw |
| Depth | 67mm |
| Length | 90.5mm |
| Maximum Operating Temperature | +55°C |
| Width | 17.5mm |
| Minimum Operating Temperature | -25°C |
| Time Delay | 11ms |
