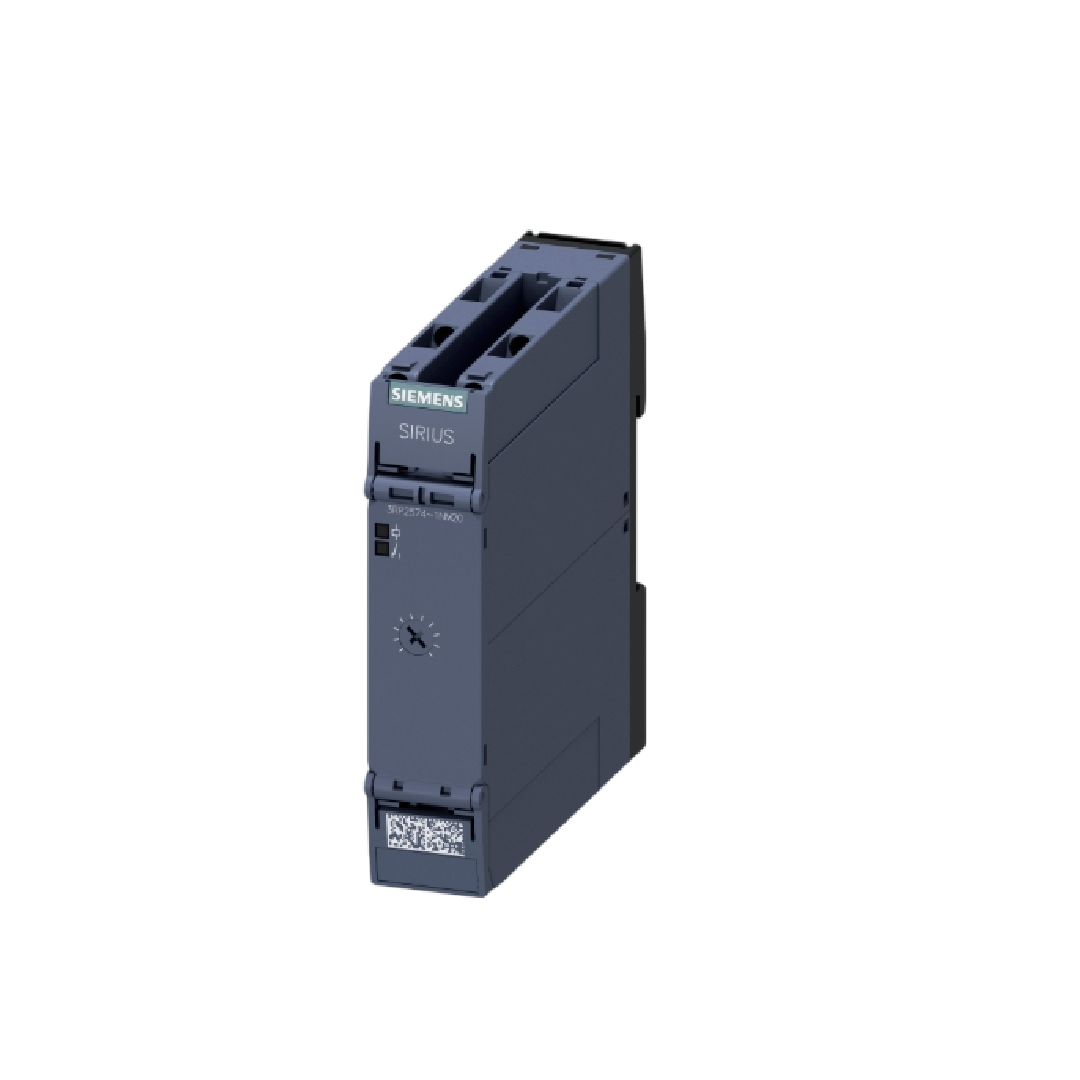

SIEMENS Timer Relay 3RP2574-1NM20

SIEMENS Timer Relay 3RP2574-1NM20

SIEMENS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
4,917.00 ฿
4,917.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด SIEMENS Timer Relay 3RP2574-1NM20

Siemens SIRIUS 3RP25 – Star Delta Timer Relay<ฝh3>
SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.

Star delta time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting
- Sealing cover for 17.5 mm time relays
- Sealing cover for 22.5 mm time relays

คุณสมบัติ Value
Supply Voltage 200 → 240 V ac, 380 → 440V ac
Mounting Type DIN Rail
Number of Contacts 2
Time Range 1 → 20s
Mode of Operation Star Delta
Number of Timer Functions Single
Contact Configuration DPNO
Time Increment Seconds
Maximum Voltage 240 V ac, 440V ac
Maximum Current 3A
Series 3RP25
Terminal Type Screw
Power Supply External
Minimum Voltage 200 V ac, 380V ac
Switch Configuration DPST
Depth 100mm
Minimum Current 0.01A
Length 22.5mm
Width 91.6mm
Maximum Operating Temperature +60°C
Minimum Operating Temperature -25°C
Contact Material Silver Tin Oxide
