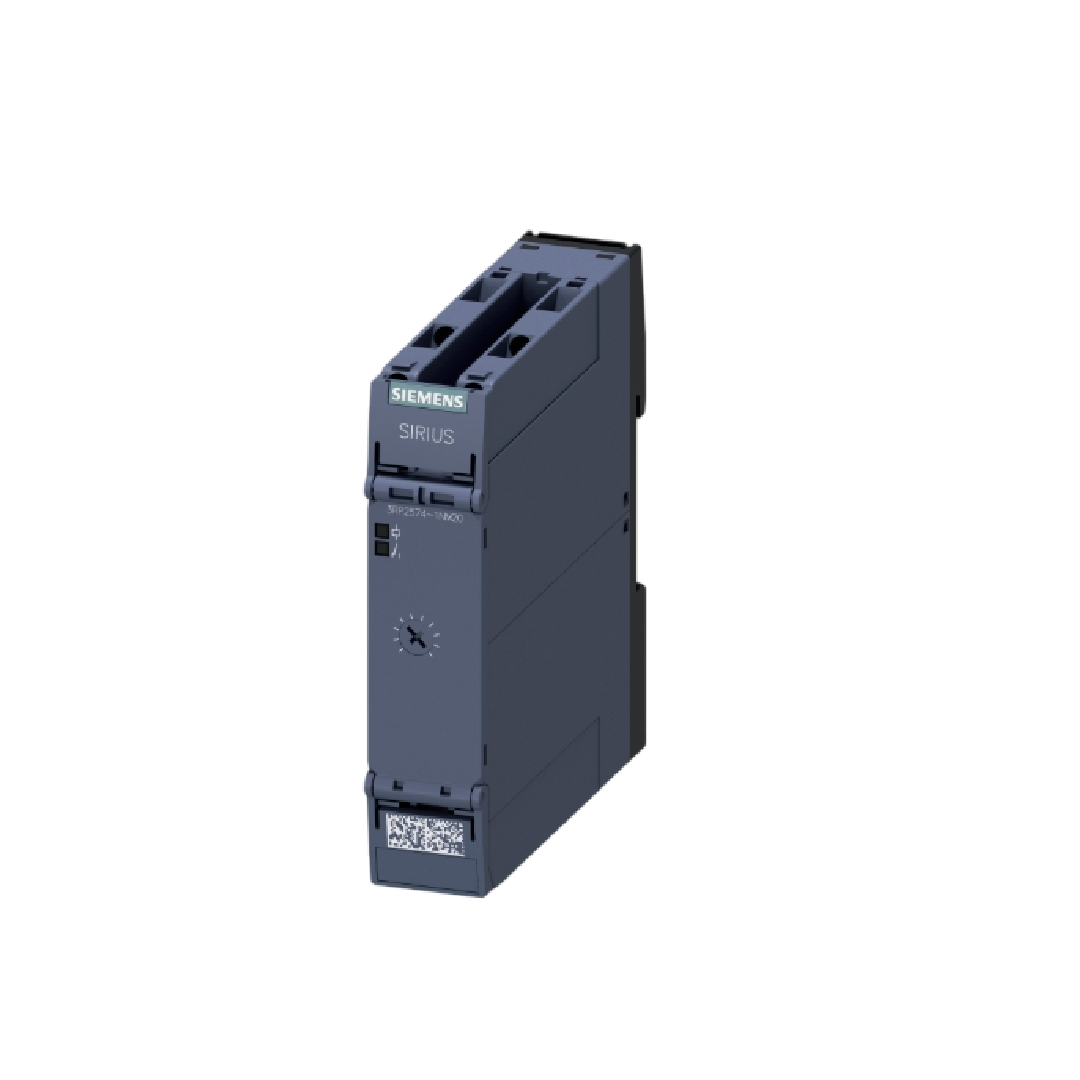

SIEMENS Timer Relay 3RP2525-1BW30
SIEMENS Timer Relay 3RP2525-1BW30
SIEMENS
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
7,237.00 ฿
ราคาปกติ
ราคาโปรโมชัน
7,237.00 ฿
ราคาต่อหน่วย
/
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด SIEMENS Timer Relay 3RP2525-1BW30
Siemens SIRIUS 3RP25 - On-Delay Timer Relay<ฝh3>SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
On-delay time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting
- Sealing cover for 17.5 mm time relays
- Sealing cover for 22.5 mm time relays
SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.
On-delay time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting
- Sealing cover for 17.5 mm time relays
- Sealing cover for 22.5 mm time relays
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting
- Sealing cover for 17.5 mm time relays
- Sealing cover for 22.5 mm time relays
| คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 12 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Number of Contacts | 2 |
| Time Range | 0.05 s → 100h |
| Mode of Operation | ON Delay |
| Number of Timer Functions | Single |
| Contact Configuration | DPDT |
| Time Increment | Hours, Seconds |
| Maximum Voltage | 240V ac/dc |
| Maximum Current | 3A |
| Series | 3RP25 |
| Terminal Type | Screw |
| Minimum Voltage | 12V ac/dc |
| Length | 90mm |
| Switch Configuration | DPDT |
| Depth | 100mm |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Time Delay | 250ms |
| Contact Material | AgSnO2 |
| Minimum Operating Temperature | -25°C |
