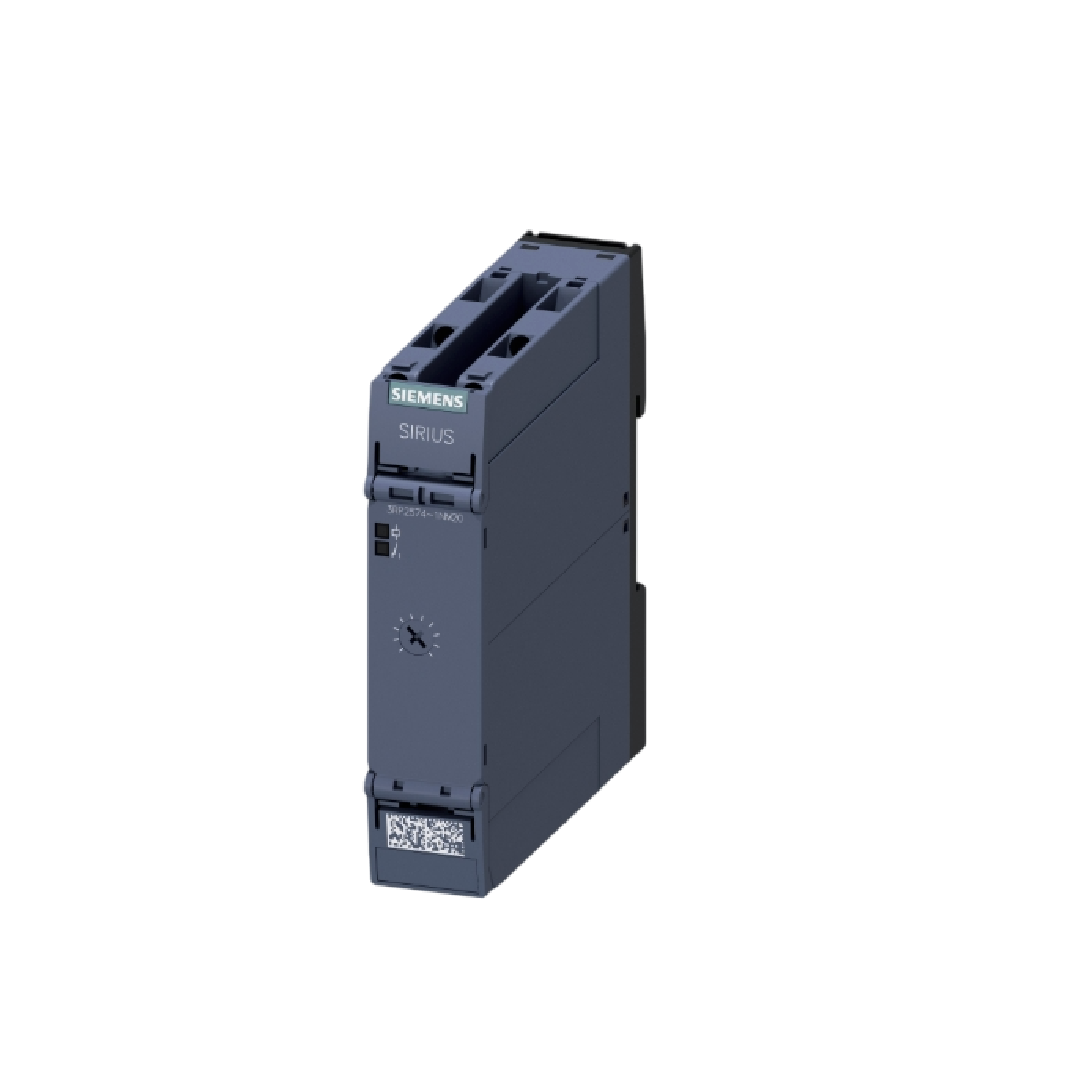

SIEMENS Timer Relay 3RP2505-2RW30

Siemens Timer Relay<ฝh3>

The Siemens 3RP25 series is a new generation time relay with 13 timer functions. It has a multifunction relay along with 2 changeover positive driven relay contact and is DIN rail mount. The relay requires a supply voltage ranging between 24VAC/DC and 240VAC/DC at 50/60Hz and a maximum current rating of 3A. It has an adjustable time range between 0.05sec and 100hours.

Features and Benefits<ฝh3>

• Contact configuration is DPDT
• Spring type terminal
• LED indicator
• Operating temperature ranges between -40°C and 70°C

Applications<ฝh3>

• Flashers
• Liquid level controls
• Timing control
• Vending controls

Certifications<ฝh3>

• IP20 rated
