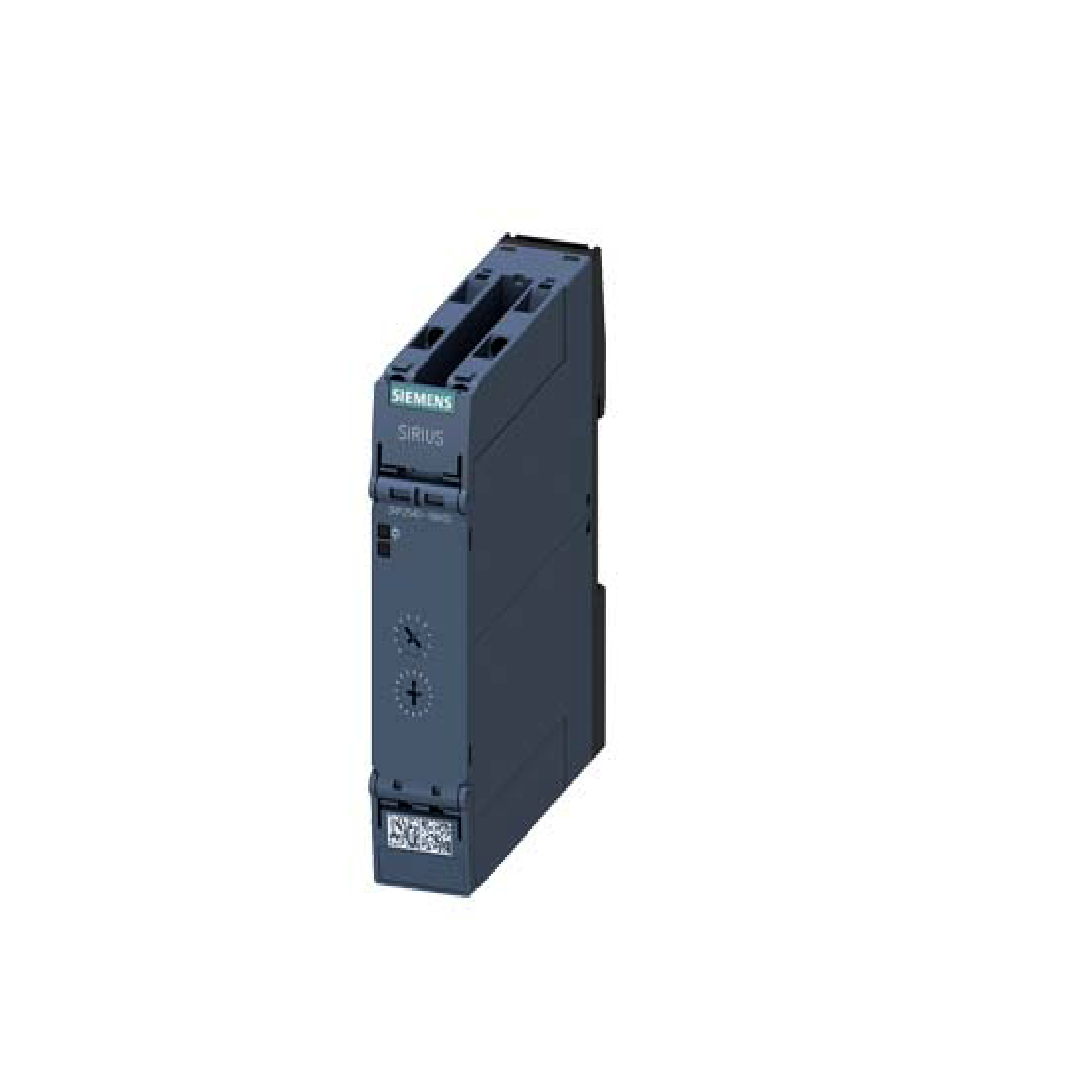

SIEMENS Timer Relay 3RP2025-1AP30

SIEMENS Timer Relay 3RP2025-1AP30

SIEMENS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
3,743.00 ฿
3,743.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด SIEMENS Timer Relay 3RP2025-1AP30

On-delay Time Relays<ฝh3>
25°C to +60°C
Approx. 5% setting tolerance
<1% repeat tolerance

Standards

IEC947, VDE0660, EN60947

Approvals

UL listed / UL listed for Canada


Siemens Sirius Range Contactor & Control Relays
คุณสมบัติ Value
Supply Voltage 110 → 240 V ac, 24V ac/dc
Mounting Type DIN Rail
Number of Contacts 1
Time Range 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100s
Mode of Operation ON Delay
Number of Timer Functions Single
Contact Configuration SPDT
Time Increment Hours, Minutes, Seconds
Maximum Voltage 250V ac/dc
Maximum Current (dc) 1 A, (ac) 3A
Terminal Type Screw
Power Supply External
Width 45mm
Maximum Operating Temperature +60°C
Length 57mm
Depth 73mm
Switch Configuration SPDT
Minimum Operating Temperature -25°C
