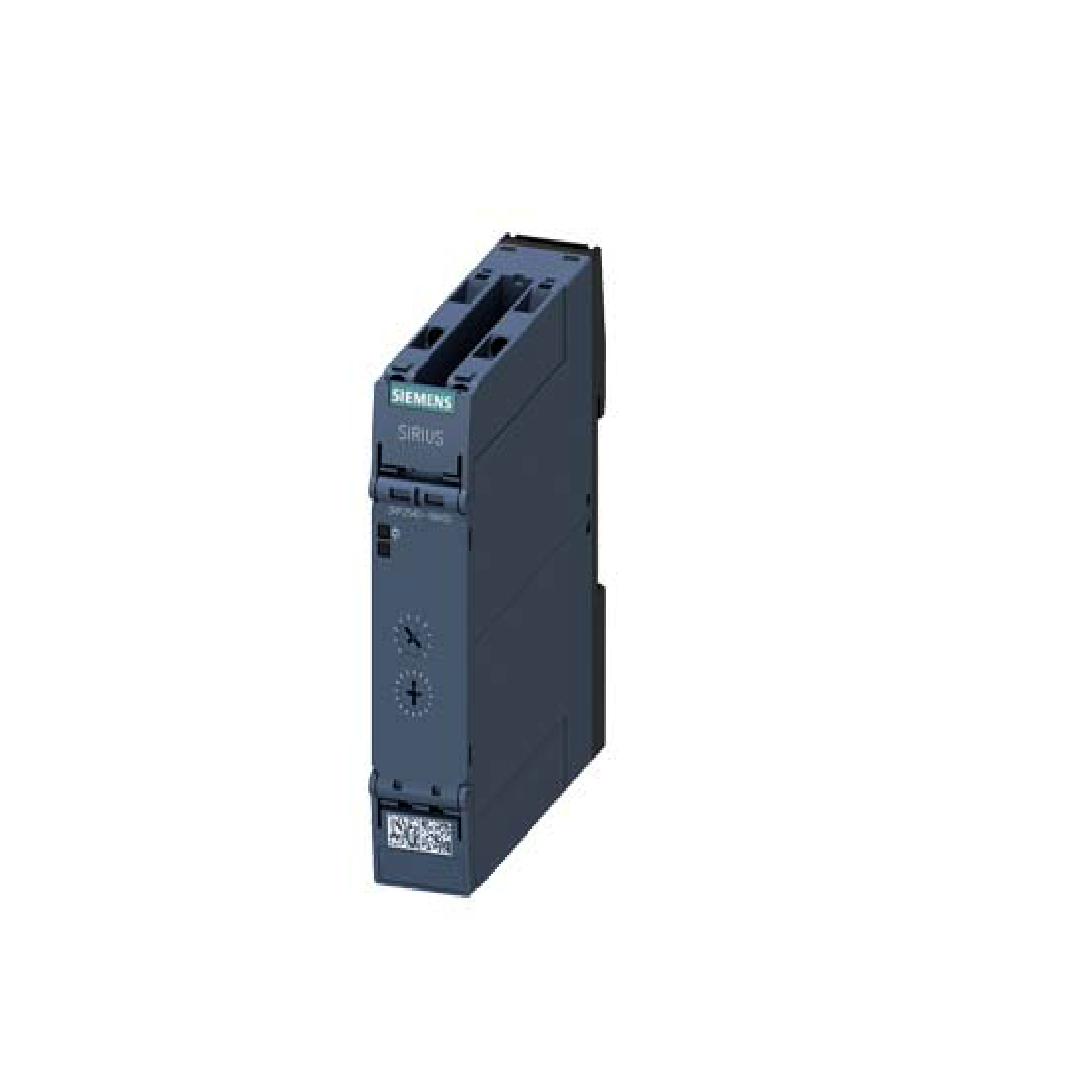

SIEMENS Timer Relay 3RP2005-1AP30

SIEMENS Timer Relay 3RP2005-1AP30

SIEMENS

กรุณาตรวจสอบสต็อกก่อนชำระเงิน
5,705.00 ฿
5,705.00 ฿
ลดราคา ขายหมดแล้ว

รายละเอียด SIEMENS Timer Relay 3RP2005-1AP30

Multifunction Time Relays - 3RP20 Range<ฝh3>
Series 3RP20 multifunction timing relays

Rotary switches for function and time-range
Setting tolerance is typical 5%
Rereat accuracy is <1%
45mm width

Standards

IEC60947-5-1, IEC 61812-1, IEC 60721-3-3

Approvals

UL listed / UL listed for Canada


Siemens Sirius Range Contactor & Control Relays
คุณสมบัติ Value
Supply Voltage 110 → 240 V ac, 24V ac/dc
Mounting Type DIN Rail
Number of Contacts 1
Time Range 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100s
Mode of Operation Additive ON Delay with Auxiliary Voltage, Flash Start with Interval, OFF Delay with Auxiliary Voltage, ON Delay, ON Delay & OFF Delay with Auxiliary Voltage, Passing Break Contact with Auxiliary Voltage, Passing Make Contact, Pulse Former with Auxiliary Voltage
Number of Timer Functions Multi Function
Contact Configuration SPDT
Time Increment Hours, Minutes, Seconds
Maximum Voltage 250V ac/dc
Maximum Current (dc) 1 A, (ac) 3A
Power Supply External
Terminal Type Screw
Maximum Operating Temperature +60°C
Depth 73mm
Width 45mm
Length 57mm
Switch Configuration SPDT
Minimum Operating Temperature -25°C
