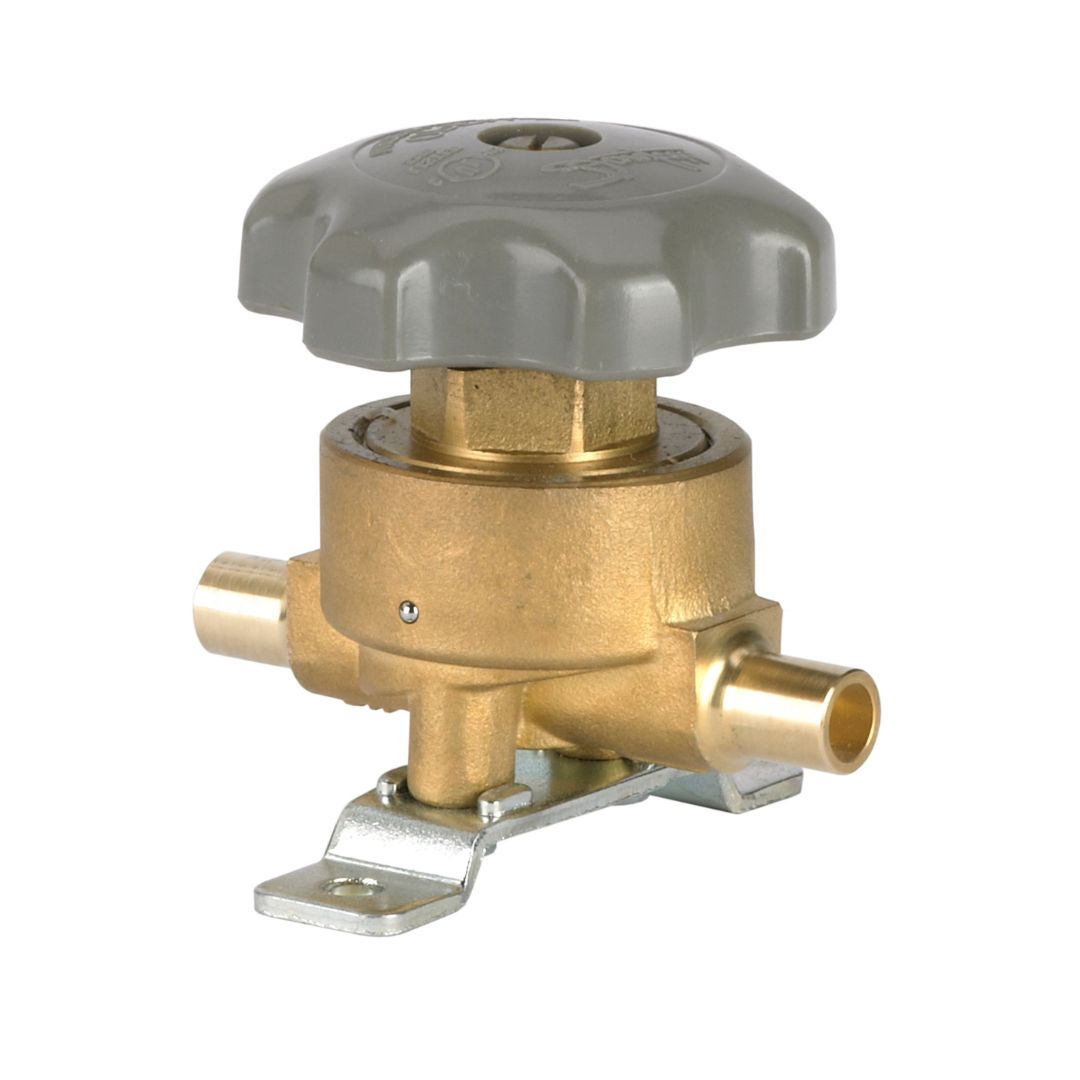

Shut-off Diaphragm Valve Danfoss, BML 18s Connection 45019 lnch Code 009G0181
Shut-off Diaphragm Valve Danfoss, BML 18s Connection 45019 lnch Code 009G0181
Danfoss
กรุณาตรวจสอบสต็อกก่อนชำระเงินราคาปกติ
3,599.49 ฿
ราคาปกติ
ราคาโปรโมชัน
3,599.49 ฿
ราคาต่อหน่วย
ต่อ
ไม่สามารถโหลดความพร้อมในการรับสินค้าด้วยตนเองได้
รายละเอียด Shut-off Diaphragm Valve Danfoss, BML 18s Connection 45019 lnch Code 009G0181
Data Sheets :
Product details
| Gross weight | 0.816 Kg |
| Net weight | 0.815 Kg |
| Volume | 1.615 Liter |
| EAN | 5702422045939 |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Body material | Brass |
| Connection material | Brass |
| Cv value [gal/min] | 3.35 gal/min |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Equipment | Handwheel |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/4 in |
| Kv value [m³/h] | 2.9 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 36.4 bar |
| Max. test pressure [psig] | 528 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 3/4 in |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | BM/GBC valve accessories |
| Product group | Shut-off and regulating valves |
| Product Name Description | Shut-off diaphragm valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1270 R134a R22/R407C R290 R450A R513A R600 R600a R407H R449B R515B R516A R1234ze(E) R404A/R507A |
| SCIP dossier no. | 39a55314-7dd3-4133-963f-63cfcc6269ba |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -55 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -67 °F |
| Type | BML 18s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R134a R22 R404A R407C R407H R449B R450A R507A R513A R515B R516A |
| Working range [bar] [max] | 21 bar |
| Working range [bar] [min] | -1 bar |
| Working range [psig] [max] | 304 psig |
| Working range [psig] [min] | -14 psig |
